| BRAND | Chihua |
| Model | CH-263A |
| Designed & Architectured | USA |
| Country of Manufecturer | Taiwan |
| Dimensions | 240 mm(H) X 355 (W)mm X 450 mm(D) |
| Weight | Approx 29 Kgs |
| Feed System | Vacuum Suction |
| Counting System | Bundle |
| Note Capacity | Up to 200 notes |
| Note Size Range | Min : 100 mm x 50 mm & Max : 200 mm x 100 mm |
| Counting Speed | 100 Notes in 4 seconds |
| Fake Notes Detector | Built in UV for Fake Notes Detector with Alarm |
| Other Mode | OK Stamp Module, UV Detection, Remote Display ( Optional) |
| Power Supply | 220v or 110 v / 50 Hz to 60 Hz , 270 Watts. |
| Warranty | 01 Year Service Warranty |
The CHIHUA Desktop Key Cutting Machine is a compact yet highly precise solution designed for professional locksmiths, hardware shops, and service centers across Bangladesh. Built with a focus on accuracy, durability, and ease of use, this machine is ideal for duplicating a wide range of keys with consistent performance, making it a valuable addition to any modern key service business.
At the core of this machine is its precision-engineered cutting mechanism, which ensures accurate duplication of standard flat keys, including residential and commercial types. The internal structure features a stable clamp system and guided cutting arm, allowing smooth operation and minimizing vibration during the cutting process. This results in clean, precise key cuts with minimal error, which is essential for maintaining customer satisfaction and reducing material waste.
The machine is equipped with a user-friendly control panel, as seen on the front interface, allowing operators to manage cutting operations efficiently. Its clear viewing chamber enhances safety and visibility, enabling users to monitor the cutting process in real time. The compact desktop design makes it suitable for limited workspace environments, such as retail counters and small workshops, which are common in Bangladeshi markets.
From a technical perspective, the CHIHUA key cutting machine is designed for continuous daily operation, featuring a durable motor and long-lasting cutting blade. The machine supports low maintenance requirements, making it cost-effective for small and medium-sized businesses. Its solid construction ensures stability, while the integrated safety features help protect the operator during use.
In the context of Bangladesh, where demand for quick and reliable key duplication services is steadily growing in urban areas like Dhaka, Chattogram, and regional towns, this machine provides a practical and profitable solution. It enables businesses to offer fast turnaround services, increasing customer flow and revenue potential.
For businesses sourcing through BME Bangladesh, this machine represents a reliable, affordable, and business-ready solution backed by trusted supply and after-sales support. Whether you are starting a new locksmith service or upgrading your existing setup, the CHIHUA Desktop Key Cutting Machine delivers the performance and reliability needed to operate efficiently in a competitive market.

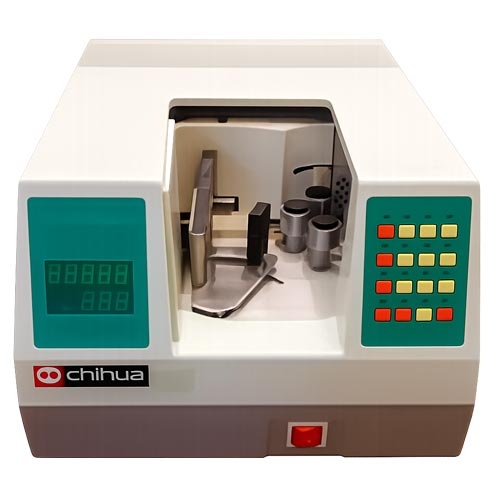

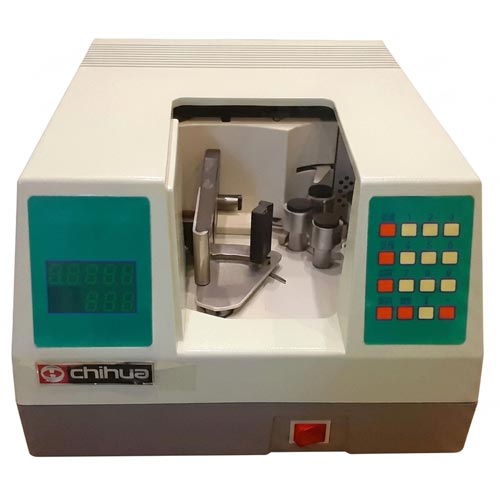

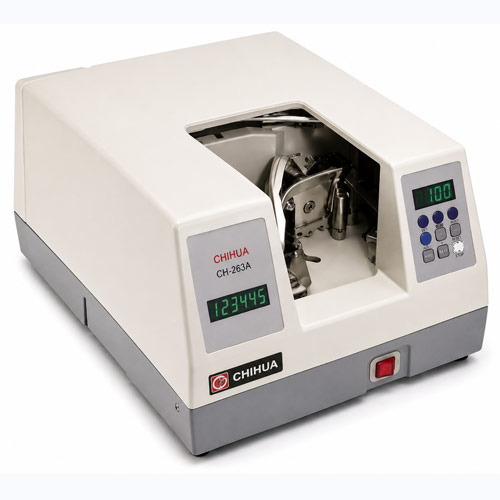

Chihua CH-263A Multi-function, easy operation counting machine has 100 notes per 4 seconds counting speed, note capacity up to 200 notes, Hopper capacity: Upto 200 notes, Counting speed: 100 notes / 4 secs, 100% accurate counting, Fully customisable batch modes, Optional "OK" stamping, Alarm in case of incorrect tally, Optional Automatic Shutter Deviceweight 29 Kgs, power consumption 450 watt, power supply 220v 50 Hz, power consumptions 270 watts, multi-function, easy operation, 100 % accurate counting, alarm in case of incorrect tally, dimensions 355 x 240 x 450 mm, note size range minimum 100 mm x 50 mm / maximum 200 mm x 100 mm.
CHECK: Check mode is specially designed to count and check 100 notes. it is very for user to check and bundle notes. in addition to 100 , check mode can also be preset for any number according to user’s choice.
BATCH: Batch Mode is designed to count and seperate a part from a whole bundle of notes. It can be preset to any number what you need.
FREE: Free Mode is suitable for counting any number of notes, especailly for counting unstrapped bundle of notes.
ADD: No matter the mode is CHECK,BATCH or FREE, the machine can automatically accumulate the continuous counted number. The accumulated number can be stored in the machine after power off and can be appeared again when next power on.
STAMP(optional): it will automatically mark OK on the surface of paper strap when counting number reaches to 100
ALARM: in CHECK or BATCH mode, the alarm system will make a warning sound and the note holder will be closed automatically if the counted number not the same as preset
SHUTTER(optional): The automatic shutter device provides a sound proof and dust proof to keep the working space more quiet and clean. The device can also provided safety protection to operator, it will automatically reverse when hands touch the edge of shutter
Note: Product design, specifications, and color may vary slightly due to continuous manufacturer improvements.
