| Brand | Cisco |
| Model | CBS110-8T-D |
| Number of Total Port | 8 Gigabit Port |
| Manageability | Unmanaged |
| Interface(s) | 8 x 10/100/1000 Mb/s |
| Transmission Method | Store-and-Forward |
| Switching Capacity | 16 Gbps |
| MTBF | 2,066,844 Hours |
| Fan/Fanless | Fanless |
| Body Color | White |
| Form Factor | Desktop |
| Dimension | 160 x 104 x 30mm |
| Weight | 0.43 kg |
| Power Consumption | 110V=4.09W, 220V=4.13W |
| Warranty Details | 1 year |

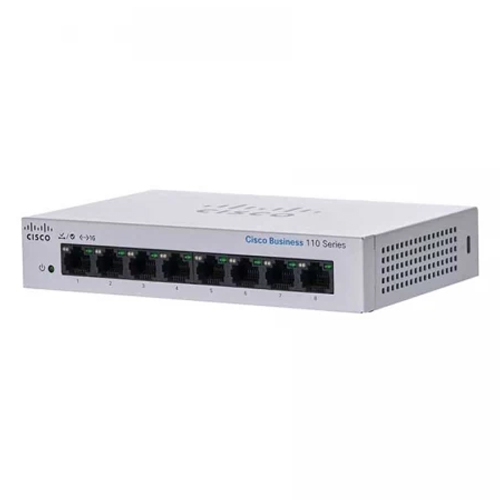

The Cisco CBS110-8T-D is a compact, unmanaged switch designed to provide basic network connectivity for small businesses, home offices, or branch locations. The switch offers 8 Ethernet ports, specifically 10/100/1000BASE-T ports. These ports support Gigabit Ethernet speeds, allowing for high-speed data transfer and reliable connectivity. The CBS110-8T-D operates as an unmanaged switch, meaning it doesn't require any complex configuration. It can be directly connected to devices without the need for manual setup, making it a plug-and-play solution. The switch supports auto-negotiation on all ports. This feature enables the switch to automatically determine and set the optimal speed (10/100/1000 Mbps) and duplex mode (half or full duplex) for each connected device. With Auto MDI/MDIX support on all ports, the switch can automatically detect and adjust for the type of Ethernet cable being used. This eliminates the need for manual cable adjustments and simplifies the installation process. The CBS110-8T-D incorporates energy-saving features to minimize power consumption. It adjusts power usage based on network activity and link status, helping to reduce operating costs and environmental impact. Designed with a compact desktop form factor, the switch is ideal for environments with limited space. It can be placed on a desk or easily mounted on a wall, providing flexibility in deployment. The CBS110-8T-D complies with various IEEE networking standards, including IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab. This ensures compatibility with a wide range of network devices and interoperability within the network infrastructure. The switch is equipped with LED indicators on each port, offering visual status indicators for link/activity, enabling quick monitoring and troubleshooting of network connections.
