| Chipset | Intel C741 |
| Processor | Up to 2× 4th Gen or 5th Gen Intel Xeon Scalable (max 60 cores/socket) |
| Video Memory | 8 MB via ASPEED AST2600 / Matrox G200e VGA |
| Memory | 32× DDR5 DIMM slots, up to 4 TB (4800 MT/s with 4th‑Gen; 5600 MT/s with 5th‑Gen) |
| Hard Disk | Up to 10× 2.5″ SAS/SATA/NVMe; up to 4 direct‑attach NVMe; dual M.2 SATA/NVMe boot |
| RAID Options | Cisco 24 Gb tri‑mode controller (SAS4/NVMe) or 12 Gb RAID (4 GB FBWC) or SAS HBA |
| Network | mLOM/OCP 3.0 slot supporting Cisco VIC 15000, plus quad 10/25/50 Gb or dual 40/100/200 Gb option |
| Dimensions | 43.2 mm H × 429 mm W × 762 mm D (30″) |
| Weight | 19.25 kg (42.43 lb) |

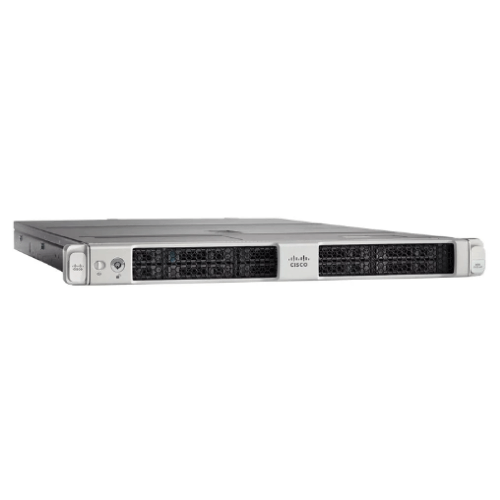

The Cisco UCS C220 M7 Rack Server is a powerful, compact 1U enterprise-class system designed to deliver exceptional performance, scalability, and efficiency for modern data centers. Built with 4th Gen Intel Xeon Scalable processors, it supports a wide range of workloads including virtualization, cloud computing, AI/ML, databases, and edge applications. Its balance of compute density, memory capacity, and flexible I/O makes it one of the most versatile servers in Cisco’s Unified Computing System (UCS) portfolio.
With support for next-generation PCIe Gen5, high-capacity DDR5 memory, and NVMe storage options, the UCS C220 M7 provides the performance and agility needed to power business-critical workloads. Seamlessly integrated with Cisco UCS Manager and Intersight, it simplifies IT operations while ensuring enterprise-class security, availability, and scalability.
4th Gen Intel Xeon Scalable Processors – Exceptional performance with up to 60 cores per CPU for demanding workloads.
Massive Memory Support – Up to 8 TB of DDR5 memory across 32 DIMM slots for data-intensive applications.
Storage Flexibility – Supports up to 10 SFF hot-swappable bays with SAS, SATA, or NVMe drives.
Next-Gen Expansion – PCIe Gen5 slots for GPUs, accelerators, and high-speed networking.
High Availability – Redundant, hot-swappable power supplies and cooling fans for maximum uptime.
Secure by Design – Built-in security with hardware root of trust and advanced data protection features.
Compact 1U Form Factor – High compute density optimized for rack space efficiency.
Simplified Management – Fully integrated with Cisco UCS Manager and Cisco Intersight for centralized control.
The Cisco UCS C220 M7 Rack Server is ideal for organizations that require high-performance computing in a compact form factor. It delivers outstanding processing power with the latest Intel Xeon CPUs, ensuring businesses can scale applications and services efficiently. Its flexible storage and PCIe Gen5 expansion allow businesses to future-proof their IT investments while benefiting from lower latency, faster data processing, and enhanced scalability. Designed for reliability, security, and simplified management, the UCS C220 M7 offers unmatched value for enterprises modernizing their data centers or deploying hybrid cloud environments.
