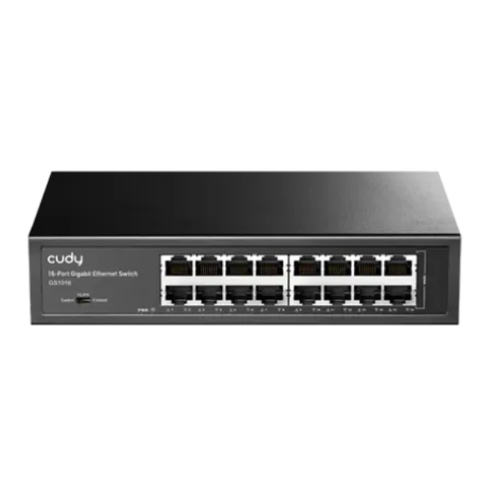

Cudy GS1016 16-Port Gigabit Unmanaged Switch

Buy Cudy GS1016 16-Port Gigabit Unmanaged Switch Price in Bangladesh

The Cudy GS1016 16-Port Gigabit Unmanaged Switch is a versatile and robust networking solution aimed at users who need high throughput, reliability, and flexibility without the complexities of a managed switch. With 16 full Gigabit (10/100/1000 Mbps) RJ-45 ports, this switch handles large file transfers, streaming, backup tasks, and heavy local networking loads with ease. It’s designed for home offices, small businesses, surveillance installations, or any environment where many wired devices need reliable connections.

Although it is unmanaged, the GS1016 offers special preset modes (Default, VLAN, Extend) via a DIP switch, giving you control over how the ports communicate. For instance, in VLAN mode, ports 1-14 can be isolated from each other and only communicate with the uplink ports, helping protect against unwanted peer-to-peer traffic. In Extend mode, those ports can transmit over longer cable distances (up to 250 meters) at reduced speed (10 Mbps), ideal for remote cameras or devices beyond standard 100-meter reach.

Its metal housing ensures good heat dissipation and durability, and the fanless design makes operation silent—a plus for noise-sensitive settings. At the same time, energy-saving features like IEEE 802.3az “Green Ethernet” help reduce idle power consumption. With a switching capacity up to 32 Gbps and MAC address table capacity of around 8,192 entries, the GS1016 can handle sustained traffic for many connected devices. All this makes it a solid choice for those wanting high port density, flexible deployment, and minimal maintenance.

✅ Key Features

• 16 Gigabit Ports (10/100/1000 Mbps): Full gigabit speed on all ports for high throughput.

• Preset Modes (Default / VLAN / Extend): Via a DIP switch, you can choose default, VLAN isolation (ports 1-14 isolated from each other, only uplinks can talk to them), or extend mode (long-distance reach up to 250 meters at 10 Mbps).

• Fan-less & Metal Housing: Silent operation and durable construction, suitable for desktop or rack-mount installation.

• High Switching Capacity & MAC Table: 32 Gbps backplane and ~8K MAC address entries for supporting many devices.

• Energy Efficient Ethernet (IEEE 802.3az): Reduced power usage when ports are idle or when cables are short.

• Port LEDs & Indications: Each port has link/activity LEDs to show link status and traffic.

✅ Why Buy This Product

• You need many wired connections (16 ports) at gigabit speed for devices like computers, NAS, IP cameras, or streaming boxes, and you want them all in one solid switch.

• You want some flexibility: the ability to extend cable runs beyond 100 meters for select ports, or isolate groups of devices (via VLAN mode) to reduce unwanted traffic or improve security.

• Noise or heat is a concern—this switch runs silently (fan-less) and the metal casing helps with cooling.

• Power efficiency helps save electricity in long-term usage, especially in environments where many ports may sit idle for long periods.

• Because it's unmanaged with simple mode selection, there is minimal setup or configuration required—good for users who want something that more or less works out of the box but with a bit of extra utility.
