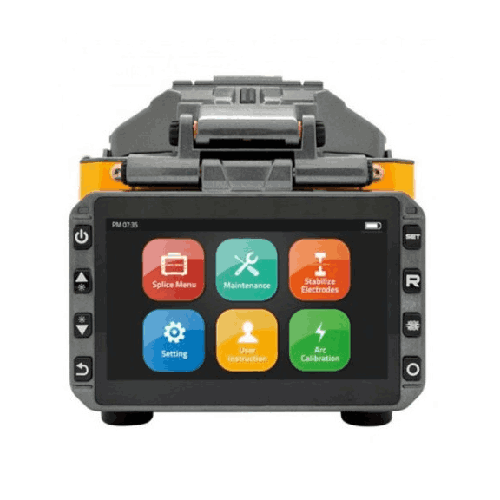

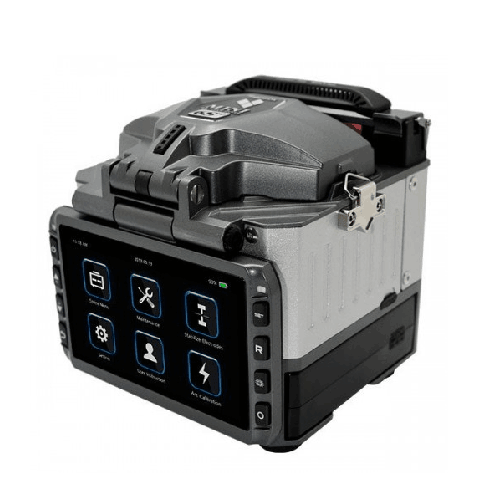

FiberFox Mini 3S Active V-Groov Clade Splicer Machine

FiberFox Mini 3S Active V-Groov Clade Splicer Machine in Bangladesh

Deploying high-speed fiber optic networks requires dependable tools that combine precision alignment with field-ready durability. Whether building out Fiber to the Home (FTTH) infrastructure across urban neighborhoods or maintaining regional trunk lines, field technicians need equipment that minimizes splice loss without slowing down daily workflows. The FiberFox Mini 3S Active V-Groove Clad Splicer Machine stands out as an industry-favorite tool engineered to deliver high-precision performance in demanding environments. Distributed by Business Machine & Equipment (BME), this advanced fusion splicer brings professional-grade core alignment and rapid processing capability directly to telecommunication teams across Bangladesh.

At the technical center of the Mini 3S is a sophisticated 4-motor digital active alignment (DAA) system. Rather than relying strictly on fixed grooves, this motorized configuration actively positions individual fiber strands to ensure optimal core matching. It handles single-mode (SM), multi-mode (MM), dispersion-shifted (DS), and non-zero dispersion-shifted (NZDS) fibers with ease. Splicing operations complete in roughly 8 seconds, while the tube heater processes shrink sleeves in about 18 seconds. This swift cycle time allows field crews to maintain high productivity during massive residential rollout projects.

Clarity and user control are essential when working inside cramped utility boxes or dark server rooms. The device features a bright 4.3-inch color LCD touchscreen protected by tempered, anti-reflective glass. The graphical user interface presents crystal-clear X and Y fiber views through a dual-CCD camera system, letting technicians instantly verify splice quality. Furthermore, internal memory stores up to 10,000 splice records and 2,000 images, making it simple to document project metrics and audit installation compliance.

Field durability is another major advantage of this platform. Weighing a mere 1.1 kg (or 1.3 kg with the battery attached), the machine is among the lightest and most compact active alignment splicers available. Its rugged outer shell is designed to withstand dust and moisture exposure common on active construction sites. Powered by a robust 3000mAh lithium-ion battery, the unit supports up to 200 full splicing and heating cycles on a single charge, ensuring uninterrupted operation even during extended power outages or field deployments away from AC power sources.

From expanding ISP networks in Dhaka to repairing high-capacity links across regional hubs, having a trustworthy fusion splicer safeguards long-term network integrity. BME ensures that local network operators and contractors gain direct access to authentic hardware backed by dependable local support and transparent purchasing standards.

✅ Key Features

• 4-Motor Active Alignment: Utilizes digital active V-groove alignment to position fibers precisely and minimize insertion loss.

• Rapid Processing Speeds: Delivers quick splicing in about 8 seconds and tube heating in roughly 18 seconds.

• Compact and Lightweight Build: Weighs only 1.1 kg, making it exceptionally portable for field service technicians.

• High-Capacity Battery: Equipped with a 3000mAh lithium-ion battery supporting up to 200 continuous splice and heat cycles.

• Dual-CCD Camera System: Provides clear 400x magnification views of fiber cores on a crisp 4.3-inch touchscreen.

• Extensive Storage Memory: Saves up to 10,000 splice records and 2,000 operational images for project tracking.

• Rugged Environmental Resistance: Built to endure dust and outdoor working conditions with robust outer protection.

• Versatile Fiber Compatibility: Fully supports SM, MM, DS, and NZDS fiber types alongside various drop cable configurations.

✅ Usage / Applications

• FTTH Network Construction: Splicing drop cables and distribution lines for fiber-to-the-home internet providers.

• ISP Backbone Maintenance: Repairing damaged optical links and establishing new trunk connections across urban and rural zones.

• Cable TV Digital Infrastructure: Maintaining optical distribution nodes for high-bandwidth data and television broadcasting.

• Enterprise Campus Cabling: Connecting multi-building corporate local area networks using high-speed fiber infrastructure.

• CCTV Surveillance Setup: Setting up reliable long-distance fiber optic transmission paths for security monitoring grids.

• Telecom Substation Work: Performing precision splicing inside outdoor distribution boxes and server racks.

✅ Benefits of This Product?

• Ensures Low Signal Loss: Advanced active alignment guarantees clean splices that meet rigorous telecommunication standards.

• Boosts Field Efficiency: Fast cycle times and lightweight portability allow technicians to complete more connections per day.

• Reliable Power Independence: High battery capacity keeps teams working smoothly during long shifts and load-shedding periods.

• Simplifies Documentation: Built-in record storage helps technicians track work history and provide reliable project reports.

• User-Friendly Interface: Full touchscreen navigation makes complex splicing procedures simple for both veteran and junior operators.

• Long-Term Durability: Sturdy construction protects internal optical components against daily transport wear and tear.

✅ Ideal For

Telecommunication engineers, ISP field technicians, fiber optic contractors, and network infrastructure builders operating across Bangladesh. It suits professionals managing large-scale FTTH deployments, corporate campus setups, and emergency maintenance tasks who require a portable, high-precision active V-groove splicer to guarantee maximum network uptime.

✅ Why Choose the FiberFox Mini 3S Active V-Groove Splicer Machine?

Selecting the FiberFox Mini 3S means investing in proven reliability, speed, and precision. Unlike basic fixed-groove models, its 4-motor active alignment system bridges the gap between high-end core alignment splicers and portable field units, delivering exceptional splice accuracy without excessive weight. Its 3000mAh battery, fast heating times, and bright touchscreen address the day-to-day challenges faced by technicians working long hours on location. For growing network providers who demand professional results and rugged portability, this machine represents an outstanding balance of performance and value.

✅ Why Buy This Product from BME?

Purchasing from Business Machine & Equipment (BME) ensures access to original fiber optic testing and splicing hardware sourced specifically for professional users in Bangladesh. BME focuses on supplying authentic equipment supported by clear specifications and dependable customer guidance. Corporate buyers and ISP procurement teams benefit from straightforward purchasing processes, transparent pricing, and responsive service tailored to local business requirements. Dealing with a trusted local supplier guarantees that your critical equipment arrives reliably, supporting your field operations effectively.

✅ Buying Guide

• Evaluate Network Requirements: Determine whether your deployment involves high-density FTTH or trunk lines where active V-groove alignment is necessary to keep signal loss minimal.

• Verify Fiber Compatibility: Confirm that the machine supports the specific fiber types (SM, MM, G.657) utilized in your cable layout.

• Manage Field Power: Charge the 3000mAh battery fully before heading out to remote locations to ensure uninterrupted full-day operation.

• Keep Optical Paths Clean: Regularly clean the V-grooves, objective lenses, and electrodes using recommended cleaning tools to prevent splice errors.

• Avoid Common Mistakes: Never attempt to splice dirty, unstripped, or poorly cleaved fibers, as this will trigger arc errors and wear out electrodes prematurely.

✅ Customers Ask About / Frequently Asked Questions

• What alignment technology does the FiberFox Mini 3S use?

  It features a 4-motor digital active V-groove alignment (DAA) system.

• How long does a single splicing cycle take?

  The splicing process takes approximately 8 seconds.

• How many splices can the battery handle on one charge?

  The 3000mAh battery supports up to 200 continuous splicing and heating cycles.

• Does it support touchscreen operation?

  Yes, it features a 4.3-inch color LCD monitor with full touchscreen capability and tempered glass protection.

• What types of fiber are compatible with this machine?

  It supports single-mode (SM), multi-mode (MM), dispersion-shifted (DS), and non-zero dispersion-shifted (NZDS) fibers.

• How many records can the internal memory save?

  It stores up to 10,000 splice records and 2,000 operational images.

• What is the total weight of the machine?

  The unit weighs 1.1 kg on its own and about 1.3 kg with the battery installed.

• Is this machine suitable for FTTH installations?

  Yes, it is fully optimized for FTTH network rollouts, local loops, and enterprise cabling.

✅ Why Buy This Product

Order the FiberFox Mini 3S today to streamline your fiber optic deployments and elevate your field accuracy. Equip your technical team with a dependable active alignment splicer designed to deliver speed, durability, and flawless connectivity on every job.
