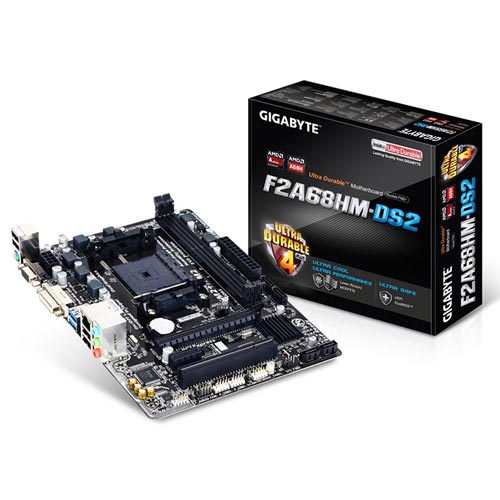

GIGABYTE GA-F2A68HM-DS2 Micro ATX Motherboard

GIGABYTE AMD GA-F2A68HM-DS2 64GB DDR3 FM2+ Socket Micro ATX Desktop Gaming Motherboard Price in Bangladesh

GIGABYTE Ultra Durable GA-F2A68HM-DS2 Ultra Durable 4 Plus AMD FM2 Socket Motherboards use high quality Nippon Chemicon ARE series audio capacitors.

Socket FM2+ supports AMD FM2+/FM2 A-series APU, GIGABYTE Ultra Durable™ 4 Plus Technology, Audio Noise Guard with High Quality Audio Capacitors, Dual-link DVI for high resolution display of up to 2560 x 1600 pixels, Native USB 3.0 and SATA3 ports with RAID support, GIGABYTE UEFI DualBIOS™, GIGABYTE On/Off Charge™ for USB devices, All solid capacitors design. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for user experience.

APU:

• FM2+ Socket:
• AMD A series processors
• AMD Athlon™ series processors (Please refer "CPU Support List" for more information.)

Chipset: AMD A68H

Memory: 2 x DDR3 DIMM sockets supporting up to 64 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

* The maximum 64 GB of system memory can be supported using 16 GB (or above) memory modules. GIGABYTE will update the memory support list on the official website when the memory modules are available on the market.

Dual channel memory architecture

Support for DDR3 2400(OC)/2133/1866/1600/1333 MHz memory modules

Support for AMD Memory Profile (AMP)/Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Expansion Slots:

• 1 x PCI Express x16 slot, running at x16

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

* To support PCI Express 3.0, you must install an FM2+ APU.

• 1 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

• 1 x PCI slot

Storage Interface:

• Chipset: 4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 10, and JBOD

Internal I/O Connectors:

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 4 x SATA 6Gb/s connectors
• 1 x APU fan header
• 2 x system fan headers
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 2 x USB 2.0/1.1 headers
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

Back Panel Connectors:

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x DVI-D port
• 2 x USB 3.0/2.0 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 3 x audio jacks (Line In, Line Out, Mic In)

 It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
