Hanvon ESP560 Hand Written Signature Pad

Cash Price: ৳27,500.00 Regular Price:৳39,500.00
Availability: In Stock SKU: 5.37.280.3299
Quick Overview
Brand:
Hanvon
Model:
ESP560
  • Interface Type: USB2.0
  • Screen Size: 5.6 Inches
  • Pen tip pressure level: 1024M
  • Sensing area size: 11.2*8.4 cm
  • Read Speed: 150 Points/Second

View More
Rating: (0 Reviews)

Payment Options
Share:
  • Support

    Saturday – Thursday: 09 AM - 06 PM.
  • Hotline

    0967 881 4452
  • Whatsapp

    +880170 999 8393
  • Payment

    Cash on Delivery | Card | Online Payment
  • Shipping Cost

    Inside Dhaka 250tk | Outside Dhaka 350tk
  • Warranty Policy

    Read More

Specification

General Information:
Brand Hanvon
Model ESP560
Dimensions (W×H×D) 181 × 161 × 30 mm
Interface B Type USB
Power Management USB BUS Power (5V, 500mA)
Power Consumption 2.5 W Max
Panel Information:
Display Panel TFT LCD
Pixel Pitch 0.0588(W) × 0.1764(H) mm
Active Area 112.896 × 84.672 mm
Resolution 640(RGB) × 480
Viewing Angles 140/140deg(typ) (horizontal/vertical)
Contrast Ratio 500:1(typ.) (Display:White/Black)
Display Response(Ton + Toff) 10mS + 15mS
Touch Information:
Technology Electromagnetic Resonance Technology, Battery free
Active Area 112.896 × 84.672 mm
Resolution 2048LPI
Coordinate Accuracy ±0.5 mm
Accuracy Assurance Height 7 mm or more
Maximum Pen Tilt Range Up to 50°from Vertical
Pressure Sensitivity 1024 levels
Report Rate(max) 150 pps
Maximum Pen Tilt Range RS-232 or USB
Pen Information:
Pressure Sensitivity 1024 levels
Dimensions 9(Φ)×131.2 (length)mm
Weight 8.48gm
Packing Information:
Device 01 Pcs
Pen 01 Pcs
Cable 01 Pcs
Tether 01 Pcs

Description

Buy Hanvon ESP560 Hand Written Signature Pad Price in Bangladesh

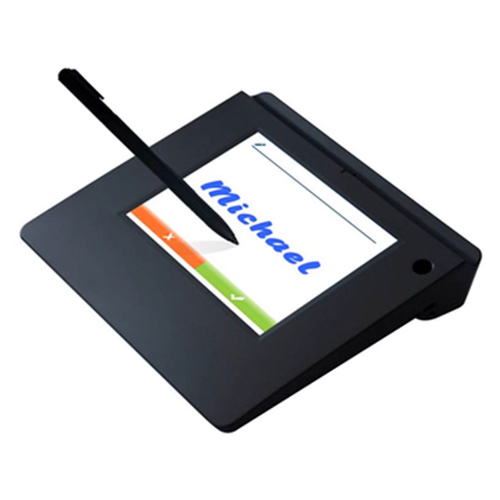

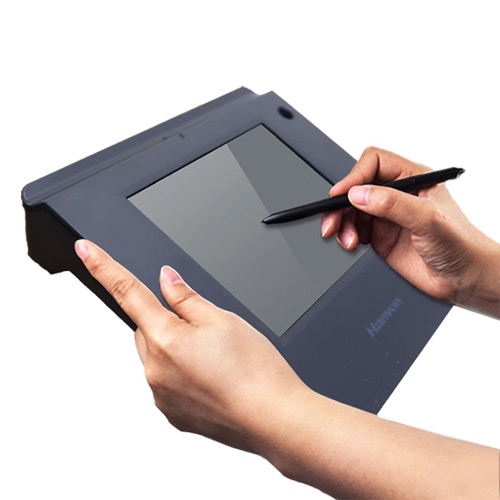

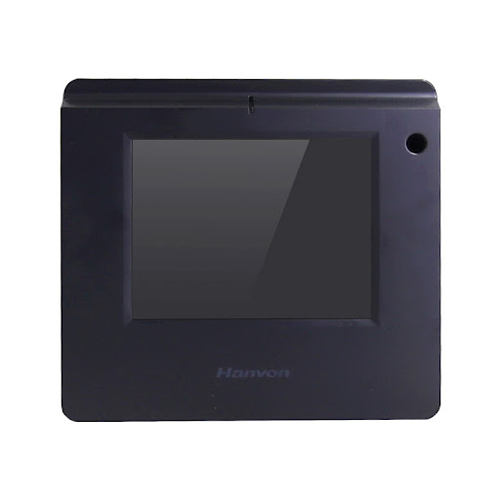

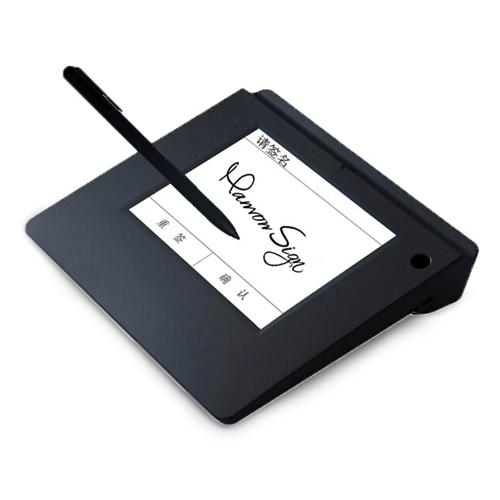

The Hanvon ESP560, integrated with a 5.6 inch LCD and electromagnetic resonance technology (ERT) components, is designed for the purpose of E-signature with handwriting. The ERT component consists of a cordless battery-free ERT stylus and a sensor board. The ESP560 .DLL provides signature handwriting x,y pressure and time information and collect the signature speed and pressure to generate the user’s biometrical information. The Hanvon ESP560 Hand Written Signature Pad is a digital signature device designed for capturing accurate handwritten signatures electronically. This pad is widely used in industries where secure and reliable signature capture is necessary, such as in banking, finance, logistics, healthcare, and legal sectors. Its advanced handwriting recognition technology ensures that the signature is captured precisely, reflecting the natural strokes and pressure of the pen, making it a highly trusted solution for e-signature applications.  Each ESP560 is a specialized device designed to capture high-quality, digital signatures with precision, making it ideal for environments requiring electronic signatures, such as banking, insurance, logistics, and government services. hardware is unique with encryption function and can be used for high-security application. ESP560 driver program can be embedded in the third-part application. The custom-made development can be made for different applications. Its primary function is to securely and accurately capture handwritten signatures and other handwritten inputs, converting them into digital form for further use in document signing and authentication systems. Key Features of the Hanvon ESP560 Handwritten Signature Pad

Key Features of the Hanvon ESP560 Handwritten Signature Pad:

High-Precision Handwritten Signature Capture:

  • The ESP560 uses advanced electromagnetic induction technology, which provides high accuracy and sensitivity. It captures the fine details of handwritten signatures, ensuring the digital version closely matches the original handwritten one.
  • The device is capable of recording the pressure levels applied during writing, which helps to ensure that the digital signature retains the characteristics of a real, ink-based signature.

Pressure Sensitivity:

  • The Hanvon ESP560 supports 2048 levels of pressure sensitivity, which means it can capture different levels of pressure applied by the user during the signing process. This allows for a more authentic digital signature that mimics the strokes and pressure variations of real handwriting.
  • The pressure-sensitive stylus provides a natural and fluid writing experience, making the signature feel more like pen on paper.

Compact and Portable User-Friendly Design:

  • Slim and Lightweight: The ESP560 is designed to be portable, with a slim profile and lightweight body, making it easy to carry and use across different environments.
  • Pen Holder: A dedicated pen holder is provided with the device, which ensures that the stylus is securely stored when not in use, reducing the risk of losing the pen.
  • Durable Build: The device is built to withstand the rigors of daily use, with materials that resist wear and tear, making it a reliable tool for professionals.
  • The ESP560 is lightweight and compact, making it highly portable. It can easily be moved between workstations or stored when not in use, making it practical for both desktop and mobile setups.
  • Despite its small size, the large signing area ensures the device remains comfortable for users, whether signing in a stationary office or on the go.

Display Screen:

  • Monochrome LCD Display: The ESP560 comes with an LCD display that allows users to see their signature as they are writing it. This real-time feedback ensures that the user can adjust their signature if needed, and also provides confidence that the signature has been captured correctly.
  • Resolution: The screen has a resolution of 320x160 pixels, which ensures that signatures are displayed with clarity and detail.

Stylus Pen:

  • The stylus included with the ESP560 is battery-free, making it more convenient to use without the need for regular charging. The pen is lightweight and designed for prolonged use, offering a comfortable grip and smooth writing experience.
  • The stylus does not require physical contact with the screen to function, thanks to the electromagnetic induction technology. This means it can be used at various angles, making it adaptable to different writing styles.

Large Writing Area:

  • The signature pad offers a 5-inch active signing area (dimensions: 105mm x 60mm), which provides ample space for users to sign comfortably. This larger surface helps ensure that the captured signature is smooth and accurate, without the cramped feel found in smaller signature pads. This size is large enough for legible and accurate signature capture while maintaining the compactness of the device for ease of use.
  • Screen Dimensions: Typically 5 inches (diagonal), with dimensions close to 120mm x 80mm.
  • Resolution: The device usually offers a high resolution of 5080 LPI (Lines Per Inch), ensuring crisp and detailed capture of the signature.

Durable and Scratch-Resistant Screen:

  • The signature pad's screen is scratch-resistant and built to withstand frequent use, ensuring longevity even in high-traffic environments like bank counters or service desks.
  • The screen surface is designed to simulate the feel of paper, giving users a familiar tactile sensation while signing.

Signature Precision:

  • High Sensitivity: The ESP560 features a high-precision sensor that captures even the most subtle variations in handwriting, such as stroke thickness, pressure, and speed. This makes the signature on the pad closely resemble the one made on paper.
  • Pressure Sensitivity: It supports pressure sensitivity, meaning that the pad can recognize variations in the amount of pressure applied while signing. This ensures a more authentic and natural representation of the signature, as different people apply different levels of pressure when signing.

Connectivity:

  • USB Interface: The device is connected to a computer via USB, allowing for easy integration into various systems. It requires no external power supply, as it draws power directly from the USB connection.
  • Plug-and-Play: The ESP560 supports plug-and-play functionality, meaning it is quick to set up and does not require extensive configuration. It is compatible with a wide range of operating systems, including Windows and macOS, and integrates seamlessly with common signature software and applications.
  • The Hanvon ESP560 connects to a computer via a USB interface, making it easy to integrate into existing digital systems. It supports plug-and-play functionality, meaning it does not require complex software installations. Most systems automatically recognize the device once connected.

Security Features:

  • Encrypted Signature Capture: The device can be used with software that supports encrypted signature capture, ensuring that the signature data is transmitted securely, protecting it from tampering or unauthorized access.
  • Tamper Detection: When used with compatible software, the pad can provide features like tamper detection, which identifies if a signature has been altered or forged after it has been captured.
  • One of the key benefits of the Hanvon ESP560 is its ability to capture the biometric characteristics of a handwritten signature. These biometric data points, such as writing speed, pressure, and stroke dynamics, help verify the authenticity of the signature.
  • The device supports encrypted signature capture, making it suitable for sensitive applications such as banking and legal document signing.
  • Many Hanvon models also support signature validation technologies, allowing organizations to authenticate signatures based on biometric data.

Anti-Forgery Technology:

  • The device offers anti-forgery features by capturing unique signature dynamics, such as pressure points, stroke order, and speed. This data can be used to verify and authenticate signatures, reducing the risk of fraud.

Applications of Hanvon ESP560 Signature Pad
The Hanvon ESP560 is commonly used in industries where secure, digital signatures are necessary. Some examples include:

  • Banking and Financial Institutions: The ESP560 is widely used in banks and financial institutions where customers need to sign documents digitally. It helps streamline processes like loan applications, account openings, and transaction approvals. Used for capturing signatures for loan agreements, account openings, and other financial documents that require legally binding electronic signatures.
  • Government Services: For signing contracts, permits, and other official documents that need a secure and authenticated digital signature.
  • Insurance Industry: Used to capture customer signatures on policy agreements, claims, and other documentation, ensuring compliance with legal and industry regulations.
  • Retail and Point-of-Sale (POS) Logistics: The device is used in point-of-sale (POS) systems for signing receipts and in logistics for proof of delivery (POD). Captures customer signatures for receipts, contracts, and other retail documents, improving the security and efficiency of transactions.
  • Healthcare: Hospitals and clinics use this pad for patient consent forms and approvals, allowing for the digitalization of paper-heavy processes.Used in patient check-ins, electronic medical records (EMR), and for signing consent forms, ensuring secure patient data handling.
  • Legal Documents: Law firms and courts can utilize the ESP560 for digitally signing legal documents, contracts, and agreements, reducing the reliance on physical paper documents.Captures signatures on contracts, legal agreements, and other critical documents, providing secure, time-stamped records of signed documents.

Software Integration:

  • The Hanvon ESP560 can be integrated with various digital signature software platforms, making it compatible with many enterprise systems. It supports different document formats, such as PDF and Word, ensuring that signatures can be easily embedded in official documents.
  • The pad may also come with a software development kit (SDK), enabling developers to customize the signature capture process and integrate it into proprietary systems.

Advantages:

  • Enhanced Accuracy: The high pressure sensitivity and resolution allow for precise signature capture, making it suitable for legal and official purposes where accuracy is critical.
  • User Comfort: With its large active area and real-time display of the signature, users can sign comfortably without feeling constrained by space or unsure of the outcome.
  • Durability: Designed for long-term use, the ESP560’s build quality ensures that it can handle frequent use in commercial and professional settings.
  • Security: Paired with compatible software, it provides encryption and tamper-proofing, making it highly secure for sensitive transactions.

Limitations:

  • Monochrome Display: While effective, the monochrome display is basic, and some users may prefer a more colorful or higher-resolution screen for better feedback.
  • Not Wireless: The device relies on a wired USB connection, which may limit flexibility in some use cases. For users requiring wireless functionality, other models might be more suitable.

The Hanvon ESP560 Hand Written Signature Pad is a robust, reliable, and accurate tool for capturing handwritten signatures in a digital format. Its large active area, pressure sensitivity, and secure connectivity make it ideal for industries where the authenticity and security of signatures are paramount. Whether used in banking, legal, healthcare, or retail sectors, the ESP560 delivers high performance and user-friendly features, helping organizations streamline their signature processes and move towards digital documentation efficiently.The Hanvon ESP560 Handwritten Signature Pad offers a reliable and high-precision solution for capturing digital signatures in environments requiring secure, verifiable, and accurate signature input. Its large signing area, pressure sensitivity, and biometric data capture make it ideal for businesses that prioritize both user experience and security. With its durable design, easy connectivity, and support for biometric signature authentication, the ESP560 is an excellent tool for industries like banking, healthcare, government services, and more.

What is the price of Hanvon ESP560 Hand Written Signature Pad in Bangladesh?

The latest price of Hanvon ESP560 Hand Written Signature Pad in Bangladesh is ৳27,500.00 . You can buy the Hanvon ESP560 Hand Written Signature Pad at best price from BME ONLINE SHOP, Bangladesh.
