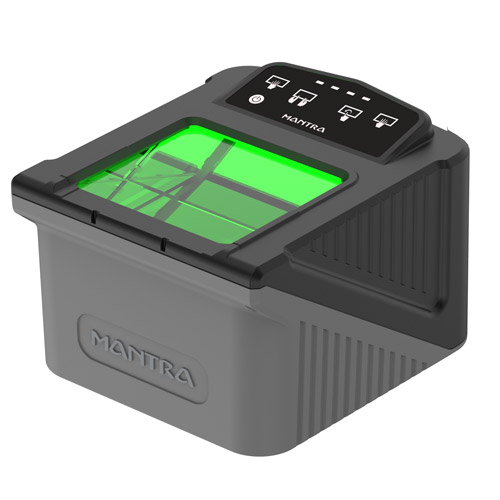

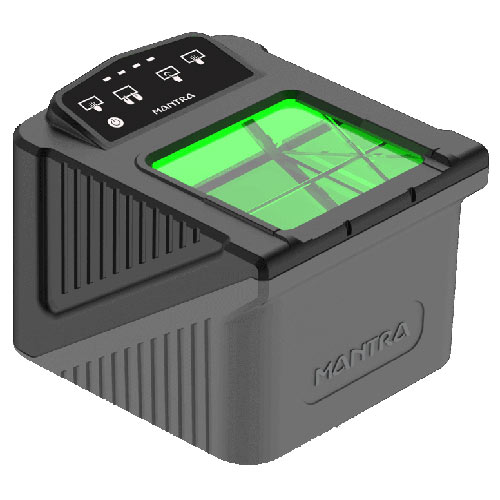

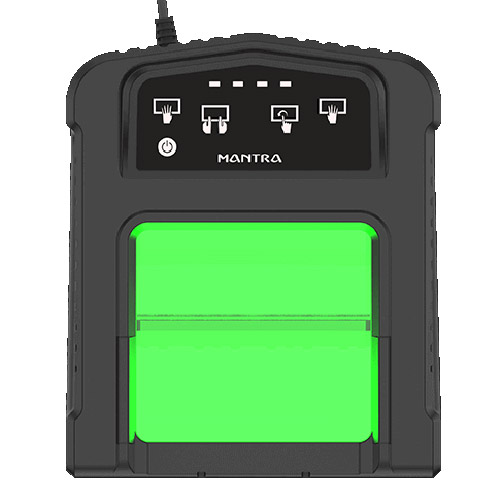

Mantra MORPHS 10 Fingerprint Scanner

Mantra MORPHS Slap Ten (4+4+2=10 Fingers) Fingerprint FBI Certified Scanner Price in Bangladesh.

The Mantra MORPHS Slap Ten Fingerprint Scanner is a high-performance biometric device designed for ten-print fingerprint enrollment and verification. Engineered with advanced optical technology, MORPHS delivers fast, accurate, and reliable multi-finger scanning—ideal for large-scale government, civil, and commercial identification projects.

With its wide platen area, the scanner captures all ten fingerprints (four-finger slaps and thumbs of both hands) with precision. Its ergonomic design, rugged casing, and easy integration via SDK make it a preferred choice for system integrators, solution providers, and government organizations worldwide.

Key Benefits

• Rugged & Durable: IP65-rated for dust and water protection with a safety cover.

• Sunlight-Ready: Functions effectively even in indirect or direct sunlight (up to ~100K Lux).

• Certified Accuracy: Image quality approved by FBI IAFIS Appendix-F & Mobile ID FAP60.

• Reliable Imaging: Works on dry, dirty, dusty, or even ink-stained fingers.

• Ease of Use: Clear LED indicators guide users for proper placement and quality capture.

Features

• Supports flat four-finger and two-thumb scanning.

• WHQL Certified drivers for compatibility.

• LED indicators for power, status, and image quality feedback.

• Scratch-free optical surface for long-term reliability.

• Auto-capture with NIST quality check ensures compliance.

• FBI Appendix F compliant.

• USB 2.0, USB-IF certified interface.

Certifications

The Mantra MORPHS meets international biometric and safety standards, ensuring trust and compliance across industries:

• CE (Conformité Européenne)

• FCC (Federal Communications Commission)

• RoHS (Restriction of Hazardous Substances)

• IS 13252 Part 1

• FBI IAFIS Appendix-F & FAP60

• WHQL Certified Device Driver

Technical Specifications

Sensor & Imaging

• Type: Optical Scratch-Free Sensor

• Resolution: 500 DPI ± 1%

• Platen Area: 90 x 81 mm

• Active Area: 81.2 x 76.2 mm

• Image Size: 1600 x 1500 pixels

• Pixel Depth: 8-bit (256 gray levels)

• Capture Speed: ≥ 4 frames/sec

Hardware

• Interface: USB 2.0 (USB-powered)

• Voltage: 5V ± 5%

• Power Consumption: Operating < 375 mA; Standby < 80 mA

• Dimensions: 173 x 147 x 121 mm

• Weight: 1.6 kg (3.6 lbs)

• Indicators: Power, Status, Finger Quality LEDs

• Environmental Protection: IP65 dust & water resistance

• Operating Temperature: 0° to 50°C

• Humidity: 10–90% RH (non-condensing)

Compliance & Safety

• EMI/EMC: CE, FCC Part 15B Class A

• Environmental: RoHS

• Safety: EN/IEC 60950, BIS, IS 13252-1

• Image Quality: FBI Appendix-F, Mobile ID FAP60

System Requirements

• OS: Windows (x86 & x64), Linux, Android

• SDK: MIDFinger_Enroll

• NIST-compliant WSQ compression module

• Segmentation support for individual finger extraction

Applications

The MORPHS scanner is trusted for citizen enrollment and ID verification in major national and international projects, including:

• UID-Aadhaar (India)

• National ID & Population Register Programs

• World Bank & UNESCO schemes

• Civil identification and border management

• Law enforcement & forensic applications

• Banking, telecom, and eKYC processes

Usage & Operation

• Four-Finger Capture: Place four fingers flat on the platen; LEDs guide correct placement and quality.

• Thumb Capture: Place both thumbs simultaneously; green LEDs confirm successful capture.

• Quality Feedback: LED indicators glow green for high-quality images and red for low-quality attempts.

Why Choose Mantra MORPHS?

• Designed for large-scale biometric enrollment projects.

• Proven durability in challenging field conditions.

• Global compliance certifications for secure ID programs.

• Easy-to-integrate SDK for system developers and solution providers.

The Mantra MORPHS Slap Fingerprint Scanner is more than just a biometric device—it’s a trusted enrollment solution that combines durability, compliance, and unmatched performance.
