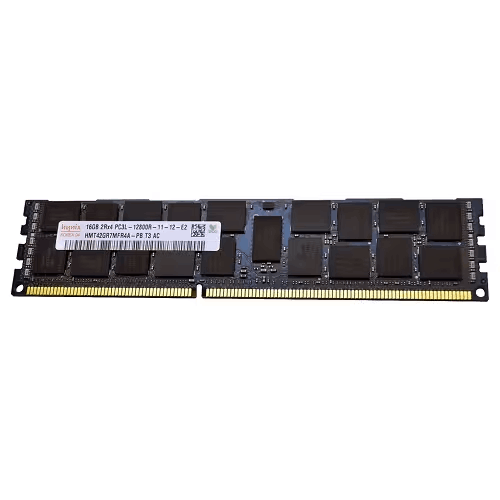

SK Hynix 16GB 2Rx4 PC3L-12800R Server RAM

SK Hynix 16GB 2Rx4 PC3L-12800R Server RAM in Bangladesh

The SK Hynix 16GB 2Rx4 PC3L-12800R Server RAM is a reliable DDR3L ECC registered memory module designed for enterprise servers and professional workstations. Built by SK Hynix—one of the world’s biggest and most trusted DRAM manufacturers—this 16GB stick is ideal for upgrading older DDR3‑based servers that are still critical to daily operations in Bangladesh.

Key characteristics:

• Capacity: 16GB
• Type: DDR3L (low voltage)
• Speed: PC3L-12800R (DDR3‑1600 MT/s)
• Rank: 2Rx4 (dual rank, x4 chip organization)
• Form Factor: ECC Registered DIMM (RDIMM), server‑class module

This memory is typically used in:

• Rack and tower servers from Dell, HP/HPE, Lenovo, IBM, Supermicro, etc.
• Older but still widely deployed Xeon E3/E5 and similar DDR3 platforms.
• Some high-end workstations that accept ECC Registered memory.

For businesses and IT departments in Bangladesh, especially those running legacy yet mission-critical systems, upgrading RAM with high-quality SK Hynix 16GB PC3L-12800R modules is a cost-effective way to extend server life and boost performance without purchasing an entirely new platform.

Understanding the Spec: PC3L-12800R, DDR3L 1600, 2Rx4

Let’s decode the designation:

• PC3L-12800R

  • “PC3L” = DDR3L (low voltage, 1.35V capable)
  • “12800” = peak bandwidth of 12.8GB/s per module at 1600MT/s
  • “R” = Registered (ECC RDIMM, server‑class)

• DDR3L-1600

  • Effective data rate: 1600MT/s
  • Backwards-compatible with 1.5V DDR3 in many server platforms; primarily optimized for 1.35V operation.

• 2Rx4

  • “2R” = dual rank (two ranks of memory chips visible to the memory controller)
  • “x4” = each chip has a 4‑bit wide data bus
  • Common configuration for ECC Registered server memory, balancing capacity, performance, and error-detection ability.

These specs make the module suitable for server boards that:

• Support DDR3L‑1600 RDIMMs
• Accept 2Rx4 ECC Registered DIMMs
• Are built on Intel Xeon or similar server‑grade chipsets designed for ECC RDIMM.

Why DDR3L Server RAM Still Matters in Bangladesh

Many organizations in Bangladesh still maintain DDR3 server hardware:

• File servers and domain controllers
• In‑house ERP/CRM systems
• Legacy database servers
• Virtualization hosts running older hypervisors
• Backup, archive, and test environment servers

These systems are often:

• Reactively maintained but still essential for daily operations.
• Too expensive to replace outright, especially when budgets are limited.
• Perfectly capable from a CPU/storage standpoint but constrained by limited RAM.

Upgrading to 16GB modules like the SK Hynix 16GB PC3L-12800R allows you to:

• Increase total memory capacity significantly (e.g., 4×16GB = 64GB, 8×16GB = 128GB, depending on platform).
• Run more virtual machines and applications concurrently.
• Improve response times and reduce disk swapping under load.

It’s a practical way to extend the life and usefulness of existing hardware by several more years.

Benefits for Virtualization & Server Workloads

1. Virtualization Hosts (ESXi, Hyper‑V, Proxmox, Xen)

   • More RAM per host lets you run more VMs and allocate extra memory to critical instances.
   • Improves VM performance when several are active at once.
   • Reduces pressure on swap files or paging.

2. Database Servers (SQL, MySQL, PostgreSQL)

   • Larger buffer pools and caches reduce disk I/O.
   • Queries respond faster due to more data being held in RAM.
   • Better overall throughput under concurrent connections.

3. Application Servers & File Servers

   • Increases cache for frequently accessed files.
   • Smooths multi‑user performance during office hours.
   • Helps application servers (ERP, CRM, custom apps) handle more sessions without lag.

4. Development & Test Environments

   • Allows running multiple test environments or containers on a single physical box.
   • Reduces the need for additional physical servers for staging and QA.

Energy Efficiency: DDR3L 1.35V

The “L” in PC3L indicates DDR3L, a low‑voltage standard operating at 1.35V (instead of 1.5V for standard DDR3). Many server platforms support DDR3L to:

• Reduce overall power draw in loaded systems with many DIMMs.
• Lower heat output, important in Bangladesh where cooling can be a cost and a challenge.
• Improve long-term reliability due to lower thermal stress.

In data centers, even small reductions in per-DIMM power usage multiply into significant savings over hundreds of modules and thousands of hours of uptime.

SK Hynix Quality & Reliability

SK Hynix is one of the core DRAM manufacturers behind many OEM-branded modules. Their memory is:

• Used in factory configurations by major server vendors.
• Tested for 24/7 operation under enterprise conditions.
• Known for consistent quality, which reduces the risk of memory-related crashes or ECC storms.

For Bangladesh businesses, selecting SK Hynix:

• Minimizes the chance of unpredictable downtime due to low‑quality generic memory.
• Provides peace of mind when upgrading older but mission-critical machines.

Compatibility Considerations (Critical Before Purchase)

Because the SK Hynix 16GB 2Rx4 PC3L-12800R is a server-grade ECC RDIMM, you must confirm compatibility:

1. Motherboard/Server Type

   • Designed for server/workstation boards that support ECC Registered DDR3L.
   • Standard consumer motherboards that use non‑ECC UDIMM DDR3 will not accept this module.

2. CPU/Chipset Support

   • Check the vendor documentation for supported:
     • Memory type: ECC RDIMM
     • Rank: Dual-rank 2Rx4
     • Capacity per DIMM: 16GB
     • Speed: DDR3L-1600 (PC3L-12800)

3. Mixing with Existing RAM

   • Ideally use identical modules across all slots for max stability.
   • Avoid mixing RDIMM with UDIMM, or different ECC types.
   • If mixing capacities or brands, test thoroughly (memtest, long uptime tests).

If you are unsure, share your exact server or workstation model with BME or your IT vendor before ordering.

Use Cases in Bangladesh

• SME servers – running on‑premise file/print, accounting software, HRMS/Payroll, etc.
• Educational institutions – labs, learning management systems (LMS), on‑prem VMs for teaching.
• Software houses & dev shops – CI/CD servers, build machines, QA environments.
• Local hosting providers – VPS nodes, web hosting, email servers based on older DDR3 hardware.
• NGOs & government offices – where older servers must remain reliable but are not easily replaced.

Upgrading RAM is one of the simplest, least disruptive ways to improve performance across such systems.

Maintenance & Handling Tips

• Static Precautions: Always ground yourself (ESD strap or touch grounded metal) before handling RAM.
• Proper Seating: Insert the DIMM firmly until both retention clips lock; incomplete insertion is a common cause of boot issues.
• BIOS/UEFI Check: After installation, confirm that the BIOS/UEFI detects the correct capacity and speed.
• Testing: Run a memory test (e.g., built-in diagnostics, memtest) after a major upgrade, especially in mission-critical environments.

✅ Key Features

• 16GB DDR3L Capacity: High-density module to expand server memory efficiently.
• Speed: PC3L-12800R (DDR3L-1600): JEDEC-compliant 1600MT/s for older DDR3 server platforms.
• 2Rx4 ECC Registered: Dual-rank, x4 chip organization, designed for stable server operation.
• Low Voltage DDR3L (1.35V): Reduced power consumption and heat, ideal for dense deployments.
• Server-Grade Reliability: Built by SK Hynix, a global DRAM leader used by OEM server manufacturers.
• Ideal for Virtualization, Databases, and Enterprise Applications: Suited to memory‑intensive business workloads.

✅ Usage / Applications

• Rack and tower servers running Windows Server, Linux, or hypervisors
• Virtualization hosts (VMware ESXi, Hyper‑V, Proxmox, Xen, etc.)
• Database servers (SQL Server, MySQL, PostgreSQL, Oracle)
• On-prem application and web servers
• Engineering and CAD/CAM workstations that accept ECC RDIMM
• Media servers, backup servers, and archive systems
• Education and research lab servers needing more memory for computing tasks

✅ Benefits of This Product?

• Improved Performance Under Load: More RAM reduces swapping, leading to faster responses and smoother operation.
• Higher VM Density: Allows more virtual machines per physical host, optimizing hardware investment.
• Cost-Effective Life Extension: Upgrading memory is cheaper than full server replacement.
• Lower Power & Heat: DDR3L modules save energy and ease cooling requirements in Bangladesh’s climate.
• Trusted Brand: SK Hynix quality reduces risk of downtime caused by faulty or unstable memory.
• Scalable: Multiple 16GB modules can quickly scale up total memory capacity for growing workloads.

✅ Ideal For

The SK Hynix 16GB 2Rx4 PC3L-12800R module is ideal for:

• IT managers in Bangladesh tasked with maintaining DDR3-era servers that still power critical apps.
• System integrators and resellers upgrading client infrastructure with a limited budget.
• Small to medium businesses that need better performance from existing servers without changing the whole platform.
• Data centers and hosting providers wanting to maximize RAM per node in older gear.
• Technical and engineering teams who run simulations, big spreadsheets, or development/test environments that quickly consume memory.

If your server is stable but struggling due to low RAM, this 16GB module is a direct way to give it new life.

✅ Why Choose the SK Hynix 16GB 2Rx4 PC3L-12800R Server RAM?

Choosing this SK Hynix module is about stability, compatibility, and total cost of ownership:

• Stability: ECC Registered DDR3L memory from a top-tier vendor is built to run 24/7 in enterprise conditions.
• Compatibility: PC3L-12800R, 2Rx4 modules are widely supported across many Intel/AMD DDR3 server platforms.
• Cost Savings: Upgrading memory extends the usable life of servers, delays expensive full migrations, and lets you get more value from existing hardware.

For many organizations in Bangladesh, completely replacing older DDR3-based servers might not be feasible yet. RAM upgrades with quality modules like this one provide a practical performance improvement while buying time to transition strategically.

✅ Why Buy This Product from BME?

Buying the SK Hynix 16GB 2Rx4 PC3L-12800R Server RAM from Business Machine & Equipment (BME) ensures:

• Genuine SK Hynix modules, not rebranded or pulled parts of unclear origin.
• Pre-sales compatibility help, matching your server/workstation models to the right memory type.
• Bangladesh-context support, including guidance on:
  • Mixing with existing RAM
  • Planning phased upgrades for multi-node environments
  • Handling installation and post-upgrade testing
• B2B-friendly processes, with quotations, invoices, and documentation suited for corporate, institutional, and reseller clients.

With server memory, the cost of downtime far exceeds the cost of the DIMM. Working with a knowledgeable local supplier like BME greatly reduces that risk.

✅ Buying Guide

Before purchasing, walk through these steps:

1. Identify Your Exact Server/Workstation Model

   • Check vendor documentation or labels on the chassis.

2. Verify Supported Memory Type

   • Confirm support for DDR3L, ECC, and Registered (RDIMM) modules.
   • Ensure the system is not restricted to UDIMM or non-ECC memory.

3. Check Capacity Limits

   • Max supported RAM per DIMM, per channel, per CPU, and total.

4. Review Existing Memory Configuration

   • Note type, capacity, speed, and rank of current DIMMs.
   • Plan whether you’ll replace all or add alongside (prefer matched sets where possible).

5. Consider Future Expansion

   • It may be worth standardizing on 16GB modules if you foresee more growth.

6. Plan for Testing

   • Schedule a maintenance window.
   • Run memory diagnostics after installation, especially on production servers.

If any question remains, share your server model and current RAM details with BME for a quick compatibility check.

✅ Customers Ask About / Frequently Asked Questions

Q1: Can this SK Hynix 16GB module be used in a regular desktop PC?
Generally no. It is an ECC Registered (RDIMM) server module, not compatible with most consumer desktop motherboards that expect non‑ECC UDIMMs.

Q2: What does “PC3L-12800R” mean?

• PC3L = DDR3L, low-voltage DDR3
• 12800 = theoretical max bandwidth (12.8GB/s at 1600MT/s)
• R = Registered (server‑class ECC RDIMM)

Q3: Is this ECC memory?
Yes. “PC3L-12800R” and “2Rx4” in server context typically indicate ECC Registered memory.

Q4: Can I mix this with non‑ECC RAM?
No. Do not mix ECC RDIMM with non-ECC UDIMM in the same system. It is unsupported and can cause instability or failure to boot.

Q5: How many of these can I install?
Depends on your server motherboard and CPU. Some systems support 4, 8, or more DIMMs. Check vendor specifications.

Q6: Will it downclock if mixed with slower RAM?
Yes. The memory controller usually runs all DIMMs at the speed of the slowest module present.

Q7: Can I use PC3L modules in a system originally shipped with PC3?
Many DDR3 platforms support DDR3L (PC3L) as a drop‑in replacement; they may run at 1.5V or 1.35V depending on BIOS and CPU. Confirm with your system documentation.

Q8: How do I know if my server supports 2Rx4 DIMMs?
Check the official memory support list or manual for your server model; it will specify supported ranks (1R, 2R, 4R) and capacities.

Q9: Does more RAM always speed up my server?
If your server is currently RAM-limited (lots of swapping, high memory usage, VMs starved of RAM), then yes, adding RAM usually brings noticeable gains.

Q10: What is the typical warranty?
Warranty terms depend on the distributor and BME’s current policy. Confirm the warranty duration and conditions when purchasing.

✅ Why Buy This Product

The SK Hynix 16GB 2Rx4 PC3L-12800R Server RAM is a dependable, enterprise‑class memory module that can breathe new life into DDR3-based servers and workstations in Bangladesh. Whether you are running critical business applications, virtualization stacks, or technical workloads, reliable RAM is essential for performance and stability.

Instead of replacing whole systems, upgrading RAM capacity using high-quality SK Hynix modules is a high-impact, budget-conscious solution. Order the SK Hynix 16GB 2Rx4 PC3L-12800R Server RAM from BME to increase your server’s capacity, reduce slowdowns, and extend the life of hardware that still has plenty of CPU and storage performance left to give.
