Brand | TOA |
Model | A-2030 |
Rated Output Power | 30 W |
Power Consumption | 34 W (EN60065), 2 A (DC operation at rated output) |
Frequency Response | 50 - 20,000 Hz (±3 dB) |
Distortion | 1% or less at 1 kHz, 1/3 rated power |

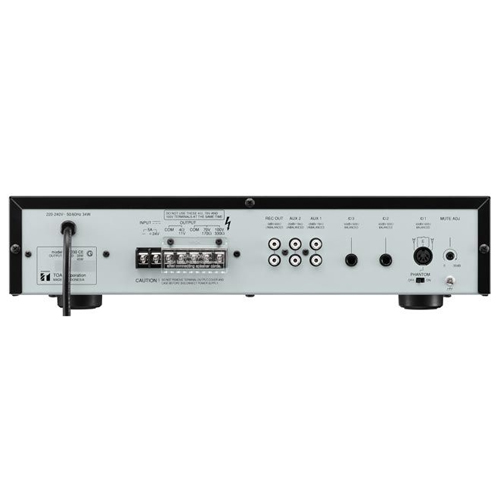

Input | MIC 1 - 3: -60 dB*, 600 Ω, balanced, equivalent to XLR-3-31 type AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack Mute: Contact screw terminal (for MIC 1) |
Output | Speaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33") High impedance: 330 Ω (100 V), 170 Ω (70 V) Low impedance: 4 Ω (11 V) Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack |
S/N Ratio | 60 dB or more |
Tone Control | Bass: ±10 dB at 100 Hz Treble: ±10 dB at 10 kHz |
Muting | MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal contact. |
Finish | Panel: ABS resin, black Case: Steel plate, black |
Phantom Power | DC +21 V (MIC 1) |
Power Source | 220 - 240 V AC, or 24 V DC |
Dimensions | 20 (W) × 100.9 (H) × 280.3 (D) mm (16.54" × 3.97" × 11.04") |
Weight | 5 kg (11.05 lb) |

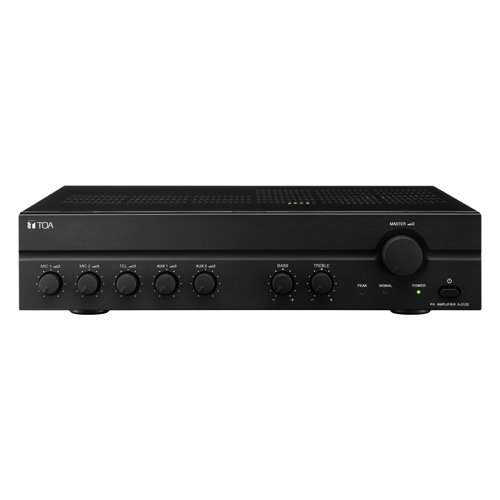

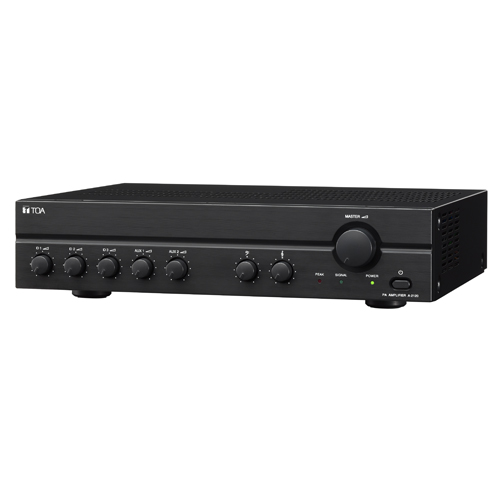

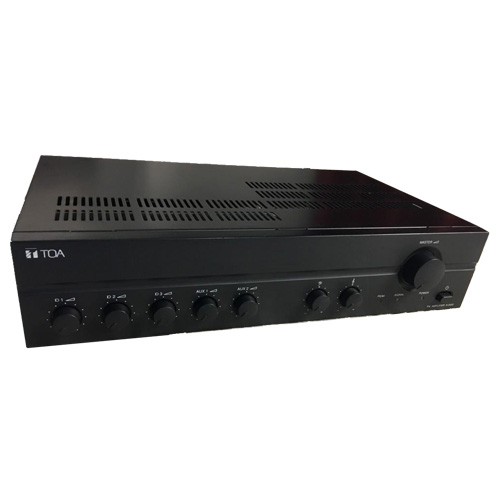

The A-2030 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms. Toa A 2030 is a high cost-performance Mixer Power Amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms, Excellent frequency response, 3 MIC inputs, 2 AUX inputs for tuner, Cassette player or other BGM sources, 100 V / 70 V line or 4 Ω speaker outputs, 3 electronically balanced microphone inputs, User-friendly front panel allows easy operation, Wide tone-control adjustment range of ±10dB for both bass and treble, Toa A-2030 mixer power amplifier provides high cost-performance, 60 watt output, input mic 1 - 3 with -60 dB, 600 Ω, equivalent to XLR-3-31 type, AUX 1, 2 with -20 dB, 10 kΩ, RCA pin jack, contact screw terminal.
