Brand | TOA |
Model | TZ-105 |
Rated Input | 10 W (Max. 15 W) |
Rated Impedance | 100 V line: 1 kΩ (10 W), 2 kΩ (5 W) |
Sound Pressure Level | 90 dB (1 W, 1 m) |
Frequency Response | 150 Hz - 10 kHz |
Speaker Component | 12 cm cone-type × 2 |
Water Protection | IPX3 Equivalent |
Finish | Enclosure: Extruded aluminum, silver gray, fully-glazed, baked paint Grille: Punched aluminum net, black, matte, baked paint Mounting bracket: Steel plate, silver gray, fully-glazed, baked paint |
Dimensions | 167 (W) × 335 (H) × 141 (D) mm |
Weight | 3.4 kg (unit only), 4 kg (including mounting bracket) |
Accessories | Mounting bracket …2, Mounting bolt, washer, packing …1 set |

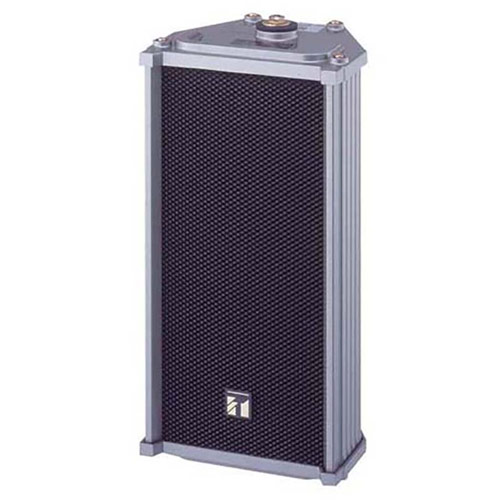

The Toa TZ-105 Metal-case column speaker employs multiple cone speakers arranged vertically on a single baffle board to provide wider horizontal directivity. TZ-105 column speaker employs several cone speakers that are arranged vertically on a standard baffle surface to provide effective and valuable directivity. The column speaker comes with 100V line 1 kΩ (10 W) rated Impedance Narrow sound dispersion along a vertical axis, 12 cm cone-type × 2 Speaker Component Wide sound dispersion along a horizontal axis, 150 Hz – 10 kHz Frequency Response, IPX3 requirements Splashproof metal body meets, 167 x 335 x 141mm dimensions, 3.4Kg weight
