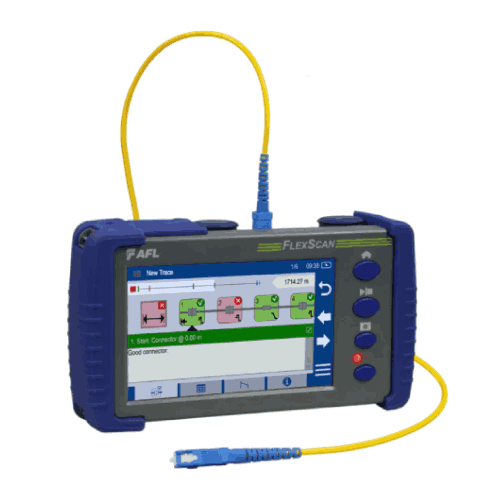

AFL FlexScan FS300 QUAD Quad-Wavelength OTDR

AFL FlexScan FS300 QUAD Quad-Wavelength OTDR in Bangladesh

Testing and certifying hybrid multimode and singlemode optical fiber networks—such as corporate data centers, local area network backbones, and passive optical LANs (POLANs)—requires a versatile, pocket-sized instrument that delivers high performance without heavy equipment bag clutter. When field technicians need to switch rapidly between enterprise premises wiring and outside plant access drops, traditional large-form-factor testers slow down daily workflows. The AFL FlexScan FS300 QUAD Quad-Wavelength OTDR stands out as an ultra-compact, high-capability optical time-domain reflectometer engineered specifically for efficient multi-media fiber testing. Distributed by Business Machine & Equipment (BME), this advanced handheld diagnostic system brings enterprise-grade quad testing directly to IT network specialists and telecommunication contractors in Dhaka, Chattogram, and regional technology hubs across Bangladesh.

At the technical center of the FS300 QUAD model (FS300-325) is a dual-port testing engine supporting both multimode wavelengths (850/1300 nm) and singlemode wavelengths (310/1550 nm). Delivering a dynamic range of up to 29 dB for multimode and 37 dB for singlemode, it handles point-to-point links as well as passive optical networks (FTTH PONs) up to 1:64 split ratios. The instrument features AFL’s proprietary SmartAuto multi-pulse acquisition technology, which automatically configures test parameters and runs multi-pulse scans to optimize both short-range event resolution and long-range trace clarity.

Designed for maximum field usability, the device features a rugged, pocket-sized enclosure weighing less than 1 pound (0.8 kg) while integrating a bright, 5-inch outdoor-enhanced touchscreen. Results are translated through AFL’s LinkMap icon-based software, which presents clear pass/fail evaluations and highlights events like splices, connectors, and macro-bends without manual trace interpretation. Integrated utility functions include an optical power meter (OPM), an optical light source (OLS), and a visual fault locator (VFL). Built-in Bluetooth and Wi-Fi capabilities support seamless wireless data transfer and PDF report generation via TRM (Test Results Manager) software. Powered by a high-capacity rechargeable lithium-polymer battery delivering up to 12 hours of continuous operation, the unit ensures reliable all-day performance.

Whether verifying enterprise structured cabling or turning up new FTTx drop lines, utilizing genuine AFL diagnostic hardware guarantees strict compliance with industry standards. BME ensures that local network providers and IT infrastructure teams across Bangladesh gain direct access to authentic AFL testing tools backed by dependable local support and clear procurement standards.

✅ Key Features

• Quad-Wavelength Versatility: Combines multimode (850/1300 nm) and singlemode (1310/1550 nm) testing ports in a single pocket-sized device.

• SmartAuto Multi-Pulse Technology: Automatically adjusts testing parameters to optimize event detection across varying link lengths.

• PON and Point-to-Point Support: Capable of verifying traditional corporate links and FTTH PON architectures up to 1:64 split ratios.

• LinkMap Icon-Based Diagnostics: Translates complex raw traces into straightforward, color-coded pass/fail event icons.

• All-in-One Utility Integration: Features a built-in optical power meter (OPM), optical light source (OLS), and visual fault locator (VFL).

• 5-Inch Outdoor Touchscreen: High-visibility capacitive display ensures effortless readability under direct sunlight.

• Wireless Connectivity & Reporting: Integrated Bluetooth and Wi-Fi support fast data export and direct Print-to-PDF report generation.

✅ Usage / Applications

• Data Center MMF/SMF Audits: Rapidly certifying high-density multimode and singlemode patch links inside enterprise server rooms.

• Passive Optical LAN (POLAN) Testing: Commissioning enterprise campus optical networks utilizing splitter architectures.

• FTTx / Access Network Turn-Up: Verifying drop cables and distribution spans for regional broadband providers.

• Enterprise Structured Cabling: Testing building-to-building riser cables and multi-media communication pathways.

• Troubleshooting High-Loss Links: Pinpointing micro-bends, bad splices, and connector degradation across mixed fiber plants.

• Compliance Documentation: Generating professional PDF test reports on-board or via PC software for client and carrier handovers.

✅ Benefits of This Product?

• Reduces Instrument Weight: Merges multimode and singlemode testing alongside an OPM, OLS, and VFL into a single sub-pound device, lightening field kits.

• Eliminates Interpretation Errors: Automated SmartAuto mode and LinkMap icons remove the need for manual waveform analysis.

• Accelerates Test Workflows: Rapid acquisition times and intuitive touchscreen controls speed up daily testing tasks significantly.

• All-Day Field Autonomy: High-capacity lithium-polymer battery provides 12 hours of continuous operation on a single charge.

• Flexible Data Management: Wireless connectivity and TRM software streamline project archiving and audit reporting.

• Rugged Field Durability: Engineered to withstand drop impacts and dusty industrial environments according to strict telecom standards.

✅ Ideal For

Enterprise IT managers, data center technicians, structured cabling contractors, ISP field engineers, and telecommunication auditors operating across Bangladesh. It serves professionals handling mixed multimode/singlemode environments where testing speed, compact portability, and reporting ease are mandatory.

✅ Why Choose the AFL FlexScan FS300 QUAD?

Selecting the AFL FlexScan FS300 QUAD means investing in unmatched portability and quad-wavelength flexibility for everyday fiber testing. While traditional quad OTDRs are bulky and require extensive setup adjustments, the FS300 packs full multimode and singlemode diagnostic power into a lightweight, smartphone-styled handheld unit. Its SmartAuto intelligence, LinkMap reporting, and all-day battery life address the practical challenges faced by mobile technicians working on location. For growing network teams that value efficiency and equipment compactness, this OTDR delivers exceptional professional value.

✅ Why Buy This Product from BME?

Purchasing from Business Machine & Equipment (BME) guarantees access to original optical testing hardware sourced specifically for professional users in Bangladesh. BME focuses on supplying authentic equipment supported by clear product specifications and dependable customer guidance. Corporate buyers and IT procurement teams benefit from transparent pricing, straightforward purchasing processes, and responsive service tailored to local business requirements. Dealing with a trusted local supplier ensures your critical test equipment arrives safely and ready for deployment.

✅ Buying Guide

• Verify Fiber Media Requirements: Ensure your infrastructure involves a combination of multimode (OM1 to OM5) and singlemode (G.65x) cabling matching the quad specification.

• Utilize SmartAuto Mode: Rely on the automated multi-pulse setting to streamline testing across mixed-distance links without manual parameter tuning.

• Maintain Optical Connectors: Clean connector ports and test jumpers regularly using approved optical cleaning tools to prevent signal contamination.

• Manage Battery Reserves: Charge the internal lithium-polymer battery fully before heading out to remote campus or outside plant assignments.

• Storage Care: Store the unit safely inside its protective soft carrying case when moving between job sites to safeguard the touchscreen and optical interfaces.

✅ Customers Ask About / Frequently Asked Questions

• What wavelengths does the AFL FlexScan FS300 QUAD support?

  It supports four wavelengths: 850 nm and 1300 nm for multimode fiber, and 1310 nm and 1550 nm for singlemode fiber.

• Can this quad OTDR test through passive optical splitters?

  Yes, it is designed to test singlemode point-to-point links as well as FTTH PON architectures and POLANs up to a 1:64 split ratio.

• What is LinkMap and how does it assist technicians?

  LinkMap is an automated analysis tool that converts complex OTDR waveforms into clean, icon-based representations, showing event types and pass/fail statuses instantly.

• Does the unit include built-in light sources and a power meter?

  Yes, it features an integrated optical power meter (OPM), optical light source (OLS), and a visual fault locator (VFL).

• How long does the battery last during field testing?

  The rechargeable lithium-polymer battery delivers 12 hours or more of continuous operating autonomy under Telcordia test conditions.

• Can test reports be generated directly from the device?

  Yes, reports can be compiled on-board using the Print-to-PDF feature or transferred wirelessly for management via TRM software.

• Is the device heavy to carry around data centers or towers?

  No, it features a lightweight, pocket-sized enclosure weighing approximately 0.8 kg (1.8 lbs).

• How do I purchase this unit or verify current availability?

  You can contact Business Machine & Equipment (BME) directly through their official customer communication channels to discuss corporate pricing, configuration options, and delivery timelines.

✅ Why Buy This Product

Order the AFL FlexScan FS300 QUAD Quad-Wavelength OTDR today to streamline your multi-media fiber testing and enhance field diagnostic speed. Equip your technical team with an industry-trusted pocket OTDR built for multimode/singlemode versatility, automated intelligence, and enduring reliability.
