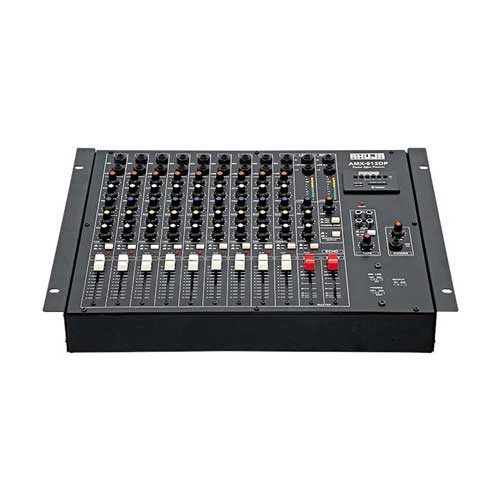

Ahuja AMX 912DP PA 9 Channel Mixer

Ahuja AMX 912DP PA 9 Channel Mixer in Bangladesh

The Ahuja AMX-912DP 9-Channel PA Mixer stands as a flexible audio console designed to process multiple inputs seamlessly.

Engineered by Ahuja, this mixing console pairs 9 input channels with a built-in digital media player (USB/SD/MMC) and an internal Digital Delay/Echo processor. Operating on both standard AC mains and 24V DC battery power, the AMX-912DP bridges the gap between traditional analog public address mixing and modern digital playback, delivering speech clarity and signal integrity.

Channel Input Flexibility & Independent Signal Equalization

The AMX-912DP features 9 dedicated input channels, each fitted with a 6.3mm (1/4”) phone jack that accepts both balanced and unbalanced signals from low-impedance microphones or high-level line instruments.

Every channel strip is equipped with comprehensive tone and gain-shaping controls:

• Gain Control & Clip LED: Adjusts input sensitivity to prevent preamp distortion, backed by a dedicated Peak/Clip LED indicator.

• 2-Band Active Equalizer: Dedicated Bass (±12dB at 100Hz) and Treble (±12dB at 10kHz) rotary controls for precise vocal and instrumental tone shaping.

• Echo/FX Send Level: Determines how much signal from each channel is routed to the internal digital delay processor.

• Pan Control: Adjusts spatial stereo placement between Left and Right output buses.

• Smooth Channel Fader: Smooth slide faders ensure precise volume balancing across all 9 channels.

Built-in Digital MP3 Player & Digital Echo Processing

The AMX-912DP integrates a front-panel Digital MP3 Media Player equipped with USB, SD card, and MMC card slots. The digital player operates via a dedicated Channel 9 / USB selector switch. When switched to USB mode, Channel 9 controls the digital playback level via its own volume knob, allowing smooth music fade-ins alongside live microphone feeds.

For vocal recitations, speech enhancement, and live music, the mixer includes an internal Digital Signal Processing (DSP) Delay/Echo system. Operators can fine-tune the spatial effect using three master controls:

1. Delay Time: Adjusts the interval gap between echo repeats.

2. Repeat (Feedback): Controls the number of echo repetitions.

3. Echo Level: Sets the overall wet/dry effect mix in the master output.

Mono/Stereo Routing & Dual AC/DC Power Protection

The AMX-912DP provides master output routing options. A rear-panel Mono/Stereo Switch allows operators to toggle between stereo L/R channel separation or summed mono distribution. In mono mode, the combined signal feeds both output channels evenly, making it ideal for distributed public address speaker networks.

Power reliability during live events is assured by its Dual-Power Architecture. Operating on 220–240V AC mains, the console also incorporates rear terminals for a 24V DC battery supply (using two 12V automotive batteries in series). If AC grid power fails during an event, the mixer continues operation on DC power without audio interruptions or system reboots.

Real-Life Usage Scenarios in Bangladesh

The channel flexibility, digital effects, and battery operation make the Ahuja AMX-912DP suitable for various local applications:

• Mosques & Religious Gatherings: Handles multiple vocal microphones (Imam, Muazzin, Tilawat) while adding warm digital echo for Quran recitations and Waz Mahfils.

• Educational Auditoriums & Cultural Clubs: Mixes multiple stage microphones, acoustic instruments, and backing audio tracks from USB drives simultaneously.

• Corporate Conference Rooms: Routes multiple tabletop delegate microphones to central power amplifiers or recording devices.

• Outdoor Events & Mobile PA Sets: Operates reliably on 24V DC battery backup during remote outdoor functions or unexpected electrical power outages.

✅ Key Features

• 9 Input Channels: 9 individual 1/4” phone jack inputs accepting balanced and unbalanced Mic/Line signals.

• Integrated Digital Media Player: Built-in USB/SD/MMC player with dedicated controls routed through Channel 9.

• Digital Echo/Delay Processor: Built-in DSP effect with dedicated Delay, Repeat, and Echo Level controls.

• Per-Channel Active Equalizer: Bass and Treble tone controls with Gain adjustment and Clip LEDs on every channel strip.

• Selectable Mono/Stereo Output: Mode switch allows choosing between stereo spatial separation and summed mono distribution.

• Dual AC / 24V DC Power Operation: Operates on AC mains power with seamless 24V DC battery backup capability.

• Headphone & Record Outputs: Stereo RCA line outputs for recording alongside a 1/4” headphone output with independent monitoring volume.

✅ Ideal For

• Mosques & Prayer Halls: Ideal for multi-microphone setups needing digital echo for vocal clarity during recitations.

• Schools & Colleges: Perfect for managing auditorium stages, morning assemblies, and cultural performances.

• Cultural Groups & Musical Bands: Versatile console for mixing instruments, vocals, and backing tracks.

• Commercial Paging Systems: Connects to high-power booster amplifiers for multi-zone voice announcements.

✅ Why Choose the Ahuja AMX-912DP PA Mixer?

Built-In Digital Playback & Effects

The built-in MP3 player and digital echo processor eliminate the need to carry external audio players or outboard delay units, simplifying your rig setup.

Uninterrupted 24V DC Battery Operation

Never worry about power cuts during live broadcasts. The 24V DC battery input allows continuous operation during grid power load-shedding.

Robust Commercial Build Quality

Designed with a steel chassis, slide faders, and circuit protection, the AMX-912DP is built for daily operational demands.

✅ Why Buy This Product

Choosing the Ahuja AMX-912DP 9-Channel PA Mixer provides complete control over multi-input public address setups. From fine-tuning vocal tone controls to integrating USB audio playback, its 9-channel architecture and dual AC/DC power options ensure clear, professional sound mixing.

Order the Ahuja AMX-912DP 9-Channel PA Mixer today to upgrade your audio console with digital effects and reliable battery power!
