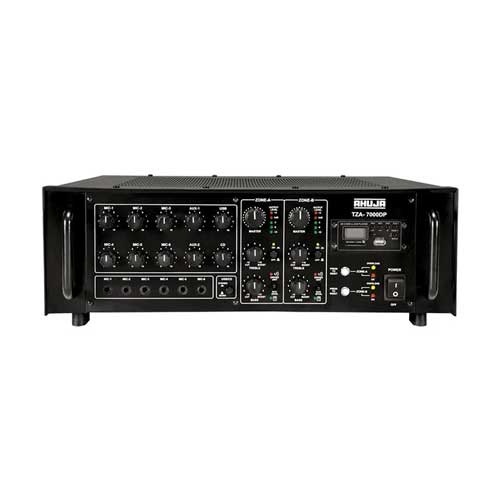

Ahuja TZA-7000DP 700 Watt PA Mixer Amplifier with Built-in Digital Player

Ahuja TZA-7000DP 700 Watt PA Mixer Amplifier with Built-in Digital Player in Bangladesh

Managing large-scale commercial public address systems across multi-room facilities, expansive campuses, or religious institutions requires an amplifier that delivers raw driving power, flexible zone management, and built-in playback convenience. The Ahuja TZA-7000DP 700 Watts 2-Zone PA Mixer Amplifier stands out as a high-output commercial audio workhorse engineered for continuous high-capacity performance.

Delivering a massive 700 Watts Maximum output (350W + 350W RMS), the TZA-7000DP integrates a built-in digital media player with an LCD display and remote control, eliminating the need for external playback devices. Engineered by Ahuja, this heavy-duty unit allows operators to control two independent acoustic zones with separate volume, bass, and treble adjustments. Built to withstand high ambient temperatures, dusty environments, and unpredictable electrical grids, the TZA-7000DP provides a complete combination of digital convenience and high-power audio distribution.

Dual-Zone Architecture: 700W Independent Power Matrix

The defining feature of the Ahuja TZA-7000DP is its dual-zone power amplification stage. Delivering 350 Watts + 350 Watts RMS at 10% THD (and up to 500W + 500W Max), the system functions as two distinct high-power amplifiers housed in a single heavy-duty chassis. This design gives operators complete independence over Zone A and Zone B, including individual master level controls, active bass, and treble tone shaping.

This dual-zone flexibility addresses complex multi-area installation needs seamlessly. For example, in large religious facilities or multi-story buildings, operators can run high-power outdoor reflex horn speakers on Zone A while driving soft indoor column or ceiling speakers on Zone B. Front-panel Zone ON/OFF toggle switches allow operators to isolate and mute a zone instantly without interrupting playback in the remaining area.

Integrated Digital Player & Stereo/Mono Ambient Switching

Equipped with an integrated front-panel digital audio module, the TZA-7000DP plays MP3 files directly from USB flash drives, SD cards, and MMC cards. An LCD display provides track information, while an included wireless remote control allows easy distant navigation. A dedicated digital player volume control knob allows smooth level matching alongside live vocal microphone feeds.

For mobile event operators, stage performances, and DJ setups, the amplifier features a Stereo/Mono mode selector switch. In Stereo mode, the unit handles left and right channel separation from CD players, laptops, or the internal MP3 player across two speaker banks. In Mono mode, vocal microphone inputs and music tracks are summed evenly across both zones to ensure maximum speech clarity throughout every corner of the venue.

Comprehensive Input Matrix & Horn Driver Unit Protection

The TZA-7000DP serves as a comprehensive mixing console, offering 6 Microphone inputs, 2 Auxiliary inputs, and dedicated CD/Stereo line inputs. Individual gain knobs on each microphone channel allow precise audio blending for multi-speaker panels, choir groups, or stage functions.

To preserve connected speaker drivers, the amplifier includes a dedicated Box Speaker / Driver Unit selector switch for each individual zone. When set to "Driver Unit" mode for outdoor horn speakers, the internal filter automatically cuts low-frequency bass boost. This active protection prevents low-end mechanical strain on horn diaphragms, preventing driver damage while projecting clear speech over long distances. Each zone includes low-impedance 4Ω and 8Ω terminal taps along with high-impedance 70V and 100V line outputs for extended speaker runs.

Instant 36V DC Battery Crossover & Circuit Defense

Unplanned power grid outages during critical events are handled seamlessly through the amplifier's dual-power capability. Operating on standard AC mains (220–240V 50/60Hz), the rear panel also includes heavy-duty terminals for a 36V DC battery bank (wired using three 12V automotive batteries in series).

If AC mains power cuts out, the internal monitor transfers power draw to the 36V DC battery system in a fraction of a second without audio dropouts, loud clicks, or system resets. Resettable circuit breakers protect internal transformers against accidental speaker short circuits or impedance overloads.

Real-Life Usage Scenarios in Bangladesh

The 700W output capacity, dual-zone structure, and digital media features make the Ahuja TZA-7000DP ideal for demanding applications:

• Large Mosques & Central Prayer Grounds: Powers high-wattage outdoor minaret horns on Zone A for long-range calls while independently managing indoor column speakers on Zone B.

• Educational Institutions & Auditoriums: Manages outdoor assembly fields via Zone A and indoor hall/corridor speaker arrays via Zone B.

• Garment Manufacturing Plants & Factories: Functions as a centralized paging amplifier across wide production floors using distributed 100V line speaker networks.

• Cultural Programs & DJ Events: Delivers energetic stereo playback via USB/SD card inputs alongside multi-microphone stage mixing.

✅ Key Features

• 700W Maximum Dual-Zone Output: Delivers high power (350W + 350W RMS) across two independently controlled speaker zones.

• Integrated Digital MP3 Player: Built-in USB, SD/MMC card reader with LCD display and wireless remote control.

• Independent Tone & Volume Controls: Separate master volume, bass, and treble controls for Zone A and Zone B.

• 6 Mic & 2 Aux Inputs: Connect up to 6 speech microphones simultaneously with auxiliary background audio sources.

• Stereo / Mono Mode Switch: Easily toggle between stereo audio separation and summed mono speech broadcasting.

• Active Horn Driver Protection: Automatically cuts low bass frequencies in "Driver Unit" mode to protect horn diaphragms.

• Instant 36V DC Battery Transfer: Switches seamlessly to 36V battery power (3 × 12V batteries) during AC grid failure.

• 70V & 100V Line Outputs: Run speaker cables over long distances without experiencing signal loss.

✅ Ideal For

The Ahuja TZA-7000DP 700 Watts PA Amplifier is built for large, multi-area public address setups:

• Central Mosques & Islamic Centers: Drive outdoor minaret horns and indoor prayer halls with separate volume management.

• Schools, Colleges & Stadiums: Perfect for campus-wide paging, sports events, and indoor auditorium functions.

• Industrial Plants & Warehouses: Drives 100V line speaker networks across factory complexes.

• Event Rental Providers: Powerful 40 kg heavy-duty steel chassis designed for touring and major public gatherings.

✅ Why Choose the Ahuja TZA-7000DP 700 Watts PA Amplifier?

Built-In Digital Playback

The integrated MP3 player with USB/SD card slots and remote control removes the need for external playback devices, reducing setup complexity and wiring.

Dual-Zone Output Flexibility

Functioning as two amplifiers in one, the TZA-7000DP allows you to drive two distinct environments with individual tone and volume settings without purchasing extra equipment.

Uninterrupted 36V DC Battery Power

Power outages during live broadcasts are handled automatically with instantaneous 36V DC battery transfer, ensuring unbroken operation.

✅ Why Buy This Product

Choosing the Ahuja TZA-7000DP 700 Watts PA Mixer Amplifier provides complete control over demanding public address deployments. From multi-zone mosque installations to open-air stage setups, its 700W max power reserve, digital MP3 integration, and dual-zone matrix deliver clear, robust sound coverage.

Order the Ahuja TZA-7000DP 700 Watts PA Mixer Amplifier today for high-capacity, dual-zone commercial sound distribution!
