Brand | H3C |
Model | US1750-52P |
Ethernet ports | 52 x 10/100/1000 Mbps |
Power over Ethernet | support on all ports |
PoE Power Budget | Total PoE power budget: [Specify the power budget in watts] |
Switching Capacity | Specify the switching capacity in Gbps |
Forwarding Rate | Specify the forwarding rate in Mpps (Million packets per second |
Switching Capacity | Specify the switching capacity in Gbps |
Forwarding Rate | Specify the forwarding rate in Mpps |
VLAN Support: | IEEE 802.1Q VLAN support - VLAN Tagging - VLAN Trunking |
Quality of Service (QoS) | IEEE 802.1p QoS prioritization - Differentiated Services (DiffServ) - Traffic Classification and Prioritization |
Security Features | MAC Address Filtering -Port Security - IEEE 802.1X Authentication - Access Control Lists (ACLs) |
Redundancy and Resilience | Spanning Tree Protocol (STP) support - Rapid Spanning Tree Protocol (RSTP) support - Link Aggregation (LACP) |

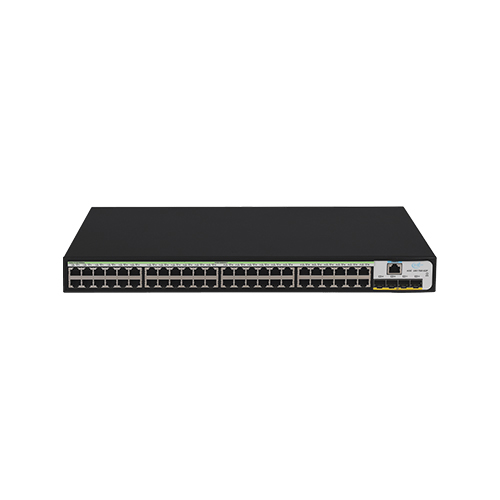

The H3C US1750-52P is a high-performance, managed Layer 2 switch with designed for small to medium-sized enterprises, schools, and campus networks that require reliable network performance and the ability to Manageble devices.. The H3C (48×10/100/1000 Base-T Ethernet Ports, 4*1000 Base-X SFP optical port) 52 Ports Ethernet Switch is a versatile networking device offering a combination of fixed ports with different speeds (10/100/1000Base-T Ethernet and 1000Base-X SFP optical ports). It is equipped with advanced features to enhance network functionality and management. The switch provides a high switching capacity ranging from 192Gbps to 336Gbps, ensuring efficient data transfer within the network. With a packet forwarding rate ranging from 108 Mpps, the switch can handle a substantial amount of data traffic. Supports various Ethernet functionalities, including static MAC configuration, MAC address learning limits, port aggregation, port isolation, IEEE 802.3ad (LACP), and port self-loop detection. Enables the creation of VLANs with support for up to 4,000 VLANs using the 802.1Q standard. The switch supports SP/WRR/SP+WRR queue scheduling, 802.1p, DSCP priority mapping, and port speed limit for effective traffic management. Offers Layer 2 ACL and IPv4/IPv6 ACL for network security and control. Includes SSH support for secure encrypted channel, FTP login and password mechanisms, SNMPv3 for secure network management, broadcast message suppression, and port dynamic ARP detection for enhanced port security. Facilitates management tasks with features like FTP, TFTP, Xmodem, SFTP file upload/download, SNMP V1/V2c/V3 support, NTP clock synchronization, and system work log. The switch can operate in temperatures ranging from -5°C to 45°C, with an operating humidity of 10% to 95% (non-condensing). The switch supports Power over Ethernet on certain models, with varying maximum power outputs per port. Power consumption is specified for each model. Physical dimensions vary between models, with lengths, widths and heights provided in Millimeters. With a robust feature set, it provides advanced switching capabilities, security, and management flexibility while simplifying network deployment. Below is an in-depth look at its features and functionalities:
Ports and Connectivity: The H3C US1750-52P offers 52 ports in total, designed to provide fast, scalable connectivity for modern networking environments:
This combination of copper Ethernet and fiber uplink ports allows for flexible deployment scenarios, whether it’s for internal networking or connecting to larger backbone networks.
Layer 2 Switching Features: The H3C US1750-52P supports comprehensive Layer 2 features, allowing it to efficiently handle local network traffic while offering management, security, and performance enhancements.
Performance and Switching Capacity: The H3C US1750-52P delivers high-performance switching capabilities suited for environments requiring efficient data handling and reliability:
Network Management and QoS (Quality of Service): The US1750-52P offers multiple management interfaces and protocols to simplify the deployment and monitoring of network operations:
Security Features: The H3C US1750-52P offers advanced security mechanisms to ensure the protection of network resources and prevent unauthorized access. The H3C US1750-52P switch incorporates several security features to safeguard the network from unauthorized access and malicious threats.
Energy Efficiency: The H3C US1750-52P is designed to be energy efficient, making it ideal for environments where reducing power consumption is important.
Physical Design and Environmental Specifications: The switch is built to be durable and is designed for rack-mounting in a standard 1U rack space, making it suitable for data centers and wiring closets.
Use Cases: The H3C US1750-52P is ideal for a variety of networking environments, such as:
The H3C US1750-52P Managed Ethernet Switch is a highly capable, feature-rich switch designed to meet the networking needs of modern businesses and institutions. Its support, advanced Layer 2 features, security protocols, and flexible management options make it an excellent choice for environments where reliable connectivity, performance, and power delivery are critical. Whether you’re setting up a new office, expanding a school network, or upgrading an enterprise campus, the US1750-28P provides the scalability and management you need for seamless network operations.
