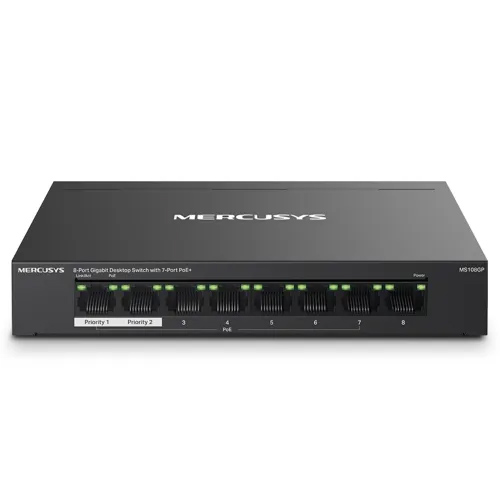

The Mercusys MS108GP is a powerful 8-port gigabit switch built for modern networks where both speed and power over Ethernet are required. With 8 RJ-45 ports capable of 10/100/1000 Mbps, and 7 of those supporting PoE+ (IEEE 802.3af/at), it enables you to deliver both data and power via a single Ethernet cable to devices like IP cameras, wireless access points, VoIP phones, or other powered devices. The total PoE power budget is 65 W, allowing you to run multiple devices simultaneously while providing up to 30 W to each PoE port as needed.
One standout feature is its Extend Mode, which increases the PoE transmission distance up to 250 meters, making the switch especially useful in installations with long cable runs—such as surveillance setups or large premises. For added network safety and traffic control, the Isolation Mode lets you segregate traffic on certain ports to reduce interference or snooping between connected devices.
The MS108GP comes housed in a durable, fanless metal case, offering excellent heat dissipation and silent operation—very suitable for indoor and always-on scenarios. It supports Jumbo Frames (~9 KB), has a MAC address table of 8,000 entries, and works with an external power adapter. Installation is simple plug-and-play, with auto-negotiation, auto-MDI/MDIX, minimal configuration overhead. Overall, for gigabit performance plus powerful, flexible PoE features in a compact desktop/wall-mount form, the MS108GP offers strong value.
8 Gigabit Ports: All 8 RJ-45 ports support 10/100/1000 Mbps for high-speed data throughput.
7 PoE+ Ports: Ports 1-7 can supply power (802.3af/at compliant), up to 30 W per port.
65 W Total PoE Budget: Combined power budget for all PoE ports.
Extend Mode up to 250 m: Enables longer reach for PoE devices when necessary.
Isolation Mode: One-click traffic separation among the PoE ports for enhanced security and stability.
Durable Metal Housing & Fanless Design: Silent operation, better heat dissipation, sturdy build.
Plug and Play: Auto-negotiation, auto-MDI/MDIX; no manual setup needed.
High Capacity & Buffering: 8K MAC address table, Jumbo Frame support (~9 KB) for large packets.
You want gigabit network speeds for multiple devices plus PoE power delivery without needing separate adapters—ideal for IP cameras, access points, VoIP setups where wiring and power outlets are limited.
The generous 65 W PoE budget gives room for several high-wattage PoE devices simultaneously without overloading the switch.
Extend Mode is especially useful if some devices are located far from the switch—this saves needing extra injectors or local power sources.
Isolation Mode helps secure network traffic by preventing connected devices from unnecessarily communicating, useful in mixed environments (e.g. guest vs internal).
The metal, fanless build ensures quiet, reliable operation in indoor or long-uptime settings.
Minimal setup required—comes almost ready out of the box, which is good if you want something that works fast and reliably without much configuration.
