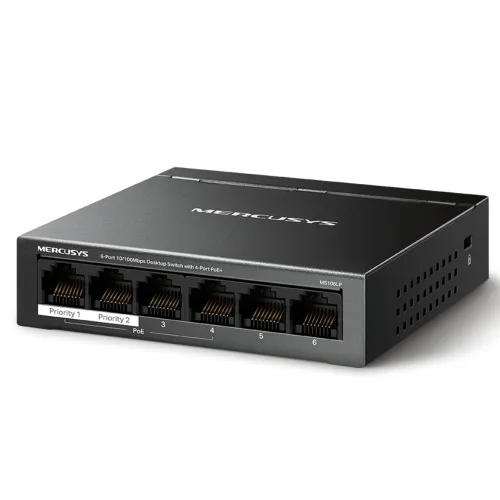

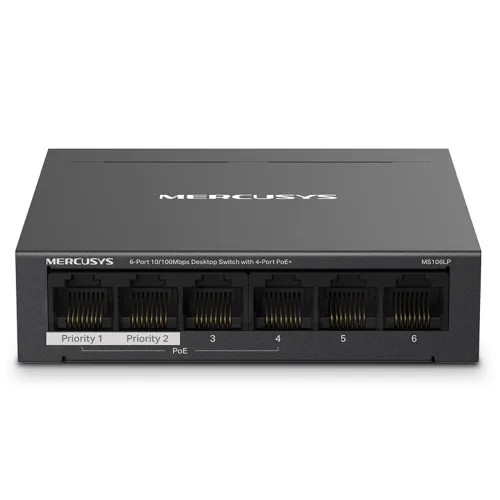

Mercusys MS106LP 6-Port 10/100Mbps PoE Desktop Switch

Mercusys MS106LP 6-Port 10/100Mbps PoE Desktop Switch in Bangladesh

The Mercusys MS106LP is a compact, unmanaged Fast Ethernet switch built for environments where power and data need to be delivered over the same cable. With 6 RJ-45 10/100 Mbps ports, this switch includes 4 PoE+ (802.3af/at) ports that supply both data and power to compatible devices like IP cameras, access points, or VoIP phones. The design is plug-and-play, requiring no configuration. Mercusys has added smart features like Extend mode (up to 250 m), isolation mode, and PoE auto recovery to make deployment easier and more resilient.

Housed in a sturdy metal shell, the MS106LP dissipates heat quietly without a fan, making it suitable for indoor use in offices or control rooms. With a total PoE budget of ≈ 40 W, each PoE port can deliver up to 30 W (depending on load). The switch offers two ports for data-only uplinks, giving flexibility in how you connect your upstream network. Its traffic isolation mode helps segment sensitive ports, while auto recovery attempts to reboot unresponsive powered devices automatically. For small surveillance setups, AP clusters, or small business networks, this switch strikes a balance between simplicity, features, and reliability.

✅ Key Features

• 6 × 10/100 Mbps Ports, with 4 PoE+ capable ports (ports 1–4) and 2 uplink data ports.

• PoE Budget & Power: Up to ~30 W per PoE port and ~40 W total shared budget.

• Extend Mode (Up to 250 m): When enabled, ports 1–4 can transmit at 10 Mbps over up to 250 m distance.

• Isolation Mode: Ports 1–4 can be isolated from each other—only uplink ports can communicate with them.

• PoE Auto Recovery: The switch monitors the PDs (powered devices); if a device stops sending data, the switch can reboot it automatically.

• Metal Housing & Fanless Design: Silent operation and solid heat dissipation.

• Plug & Play Use: Auto MDI/MDIX, auto-negotiation, no manual setup required.

✅ Why Buy This Product

• When you need to power multiple PoE devices without running separate power lines, this switch consolidates power and data provisioning in one device.

• The Extend mode allows you to place devices (e.g. cameras) beyond the standard 100 m Ethernet limit, especially in longer-range or outdoor surveillance projects.

• Isolation mode provides additional security or traffic segregation between PoE devices, which is useful in environments where devices should not communicate directly.

• Automatic recovery of devices reduces downtime by rebooting unresponsive PoE devices without manual intervention.

• Because it’s unmanaged and plug-and-play, it is ideal for users who want reliable performance without needing to deal with complex switch configurations.
