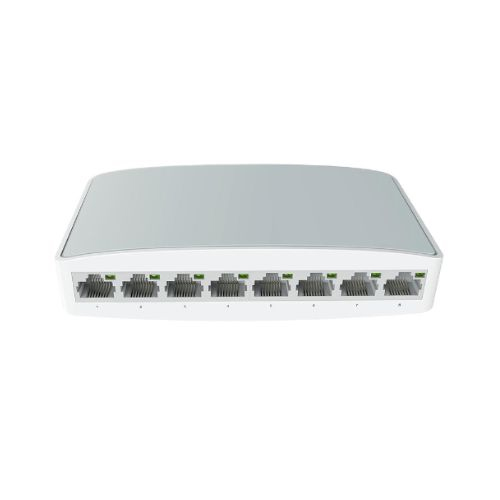

The ONV-H3008S is a full Gigabit Ethernet switch designed to provide reliable and high-speed network connectivity for various applications. With 8 fixed ports supporting 10/100/1000Base-T RJ45 for data transmission, this switch ensures seamless communication in modern networking environments. The Ethernet ports support 10/100/1000Base-T auto-sensing, featuring full/half duplex MDI/MDI-X self-adaptation for flexible and adaptive network configurations. Twisted Pair Transmission capabilities ensure compatibility with various cable types, including Cat3, Cat4, and Cat5 UTP for 10BASE-T, as well as Cat5 or later UTP for 100BASE-TX and Cat5e or later UTP for 1000BASE-T, all within a range of up to 100 meters. In terms of chip parameters, the switch adheres to IEEE802.3 standards, encompassing 10BASE-T, 10Base-T, 100Base-TX, and 1000Base-T, as well as IEEE802.3x for efficient network flow control. Operating in a Store and Forward mode at full wire speed, the switch boasts a non-blocking 16Gbps switching capacity, with a forwarding rate of 11.9Mpps at a 64-byte packet size. The MAC table accommodates 2K addresses, and the switch includes 2M of buffer memory for optimized data handling. Supporting Jumbo Frames up to 9.2K enhances data transfer efficiency. The LED indicators provide clear visual status updates, including a Power indicator (PWR, Green) and a Network indicator (Link/Act, Green), ensuring easy monitoring of the switch's operational status. In terms of power supply, the switch operates with a total power consumption of 5W at DC5V. The power adapter, with an input voltage range of AC100~240V at 50-60Hz and a current of 0.56A, is external for ease of use. Power consumption is minimal, with less than 1W in standby mode and less than 5W at full load. Physically, the switch is designed to operate in a temperature range of 0~+55°C, with a humidity range of 5%90% RH in a non-condensing environment. For storage, it is suitable for temperatures between -40+75°C, with a humidity range of 5%~95% RH in a non-condensing environment. The compact dimensions measure 1407832mm, with a net weight of less than 0.15kg and a gross weight of less than 0.3kg. The switch is versatile in installation, suitable for both desktop and wall-mounted configurations. Certifications include CCC, CE mark, commercial, CE/LVD EN60950, FCC Part 15 Class B, and RoHS compliance. The switch comes with a 1-year warranty, with lifelong maintenance support, and features lightning protection at 4KV 8/20us with a protection level of IP30.
