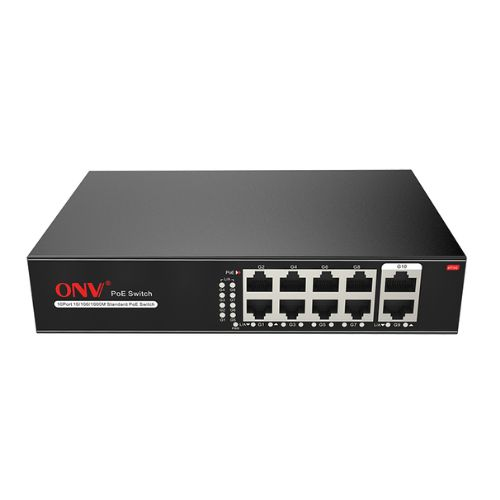

The ONV H3108PFS is a robust 10-port Full Gigabit PoE (Power over Ethernet) switch designed for efficient and high-performance networking. It features a combination of fixed and uplink ports, providing versatile connectivity options for various devices. The switch includes 8 fixed ports supporting 10/100/1000Base-T with PoE capability, delivering both data and power to connected devices. Additionally, there are 2 uplink ports with 10/100/1000Base-T RJ45 interfaces for high-speed data connectivity. Port 1-6/Port 1-10 support auto-sensing for 10/100/1000Base-T, with full/half duplex MDI/MDI-X self-adaptation. Supports Cat3, 4, 5 UTP for 10BASE-T, Cat5 or later UTP for 100BASE-TX, and Cat5e or later UTP for 1000BASE-T, all within a range of ≤100 meters. Compliant with IEEE802.3 standards, including 10BASE-T, 10Base-T, 100Base-TX, 1000Base-T, and IEEE802.3x. Utilizes a Store and Forward mechanism, ensuring full wire speed for efficient data transmission. Boasts a non-blocking 16Gbps switching capacity for smooth and reliable network performance. Achieves a forwarding rate of 8.93Mpps at 64-byte packet size. Equipped with an 8K MAC table for effective address management. Features 2M of buffer memory to optimize data flow. Supports Jumbo Frames with a size of 9.2k for enhanced data transfer efficiency. Provides clear visual indications with power (PWR, green), network link status (Link, green), and PoE activity (PoE, green). Ports 1 to 4 support Power over Ethernet, delivering a maximum power of 30W per port compliant with IEEE802.3af/at standards. Utilizes pins 1/2(+) and 3/6(-) for power supply. Offers a total power of 65W with input voltage ranging from AC100-240V. Operates with low power consumption, using less than 5W in standby mode and less than 65W at full load. Equipped with a built-in power supply supporting AC100~240V at 50-60Hz with a current of 1.1A. Designed to operate in a temperature range of -20~+55°C with a humidity range of 5%~90% RH (Non-condensing). Suitable for storage in temperatures between -40~+75°C with a humidity range of 5%~95% RH (Non-condensing). Compact dimensions measuring 140 x 115 x 40mm. Lightweight with a net weight of <0.6kg and a gross weight of <1.0kg. The switch comes with a 1-year warranty, with lifelong maintenance support.
