Power Guard PG 6KVA Standard Backup Online UPS

Regular Price:৳125,000.00
Availability: SKU: 7.45.216.2240
Quick Overview
Model:
PG 6KVA (S)
  • Capacity: 6000VA/5400W
  • Input Voltage Range: 110-280 VAC
  • Voltage (Inverter Mode): 220+/-1%
  • Battery: Lead-Acid Maintenance-Free
  • Battery Ampere: 8.2Ah; Number of Battery: 16 Pcs

View More
Rating: (0 Reviews)

Share:
  • Support

    Saturday – Thursday: 09 AM - 06 PM.
  • Hotline

    0967 881 4452
  • Whatsapp

    +880170 999 8396
  • Payment

    Cash on Delivery | Card | Online Payment
  • Shipping Cost

    Inside Dhaka 1200tk | Outside Dhaka 1550tk
  • Warranty Policy

    Read More

Specification

General Information
Brand Power Guard
Model PG 6KVA
Efficiency
To AC Mode 93%
To Battery Mode 87%
Input
Frequency Range 46Hz-54Hz / 56Hz-64Hz
Phase Single phase with ground
Power Factor R0.99 @ nominal voltage (100% load)
Battery
Battery Type 12 V / 8.2 AH
Numbers 16
Typical Recharge Time 6 hours recovery to 90% capacity
Charging Current (max.) 1.0A/2.0A/4.0 A/6.0A
DC Voltage 192 VDC
Output
AC Voltage Regulation (Batt. Mode) 2%
Current Crest Ratio 3:01
Frequency Range (Batt. Mode) 50 Hz 0.2 Hz or 60 Hz 0.2 Hz
Frequency Range (Synchronized Range) 46 ~ 54 Hz or 56 ~ 64 Hz
Harmonic Distortion Q4 % THD (Linear Load) Q 6 % THD(For Full RCD Load,PF=0.8)
Output Voltage 110/115/120/127 VAC or 208/220/230/240 VAC
Transfer Time Line mode to Battery mode Zero
Waveform (Batt. Mode) Pure Sine Wave

Description

Buy Power Guard PG 6KVA Standard Backup Online UPS Price in Bangladesh.

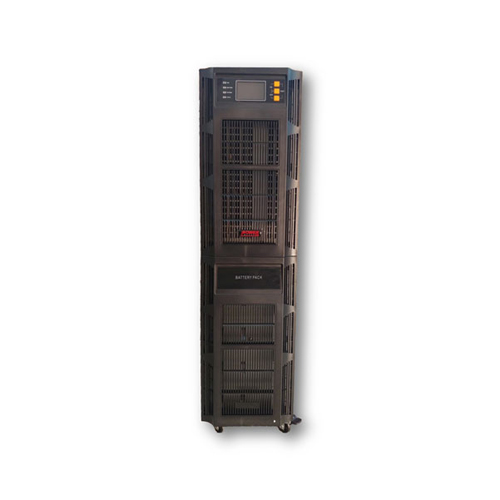

The Power Guard PG 6KVA (S) Metal Body Online Standard Online Backup UPS is likely to be a high-capacity uninterruptible power supply designed to provide reliable and continuous power protection for critical electronic equipment. The "6000VA" in the product name indicates that the UPS has a capacity of 6000VA/5400W Watt, which represents the power it can supply to connected devices. This UPS is suitable for supporting medium to large-sized IT equipment or critical loads that require substantial power backup. An online UPS employs double conversion technology, where the incoming AC power is first converted to DC and then back to AC again.

This ensures a constant, clean, and regulated output power, making it ideal for protecting sensitive and mission-critical devices. The UPS comes with a large internal battery bank that provides power to connected devices during power outages. The online double conversion technology means there is no transfer time when switching to battery power, ensuring uninterrupted power delivery to the load. Online UPS systems typically provide precise voltage regulation, ensuring that connected devices receive a stable power supply even when the input voltage fluctuates.

The UPS is likely to have built-in surge protection to shield connected equipment from voltage spikes and transients. Many UPS models come with an LCD display or LED indicators on the front panel, providing real-time information about the UPS status, load capacity, battery level, and other relevant data. The UPS may have multiple communication ports, such as USB, RS-232, or SNMP, enabling remote monitoring and management of the UPS through compatible software. Some UPS models allow for scalability, where additional battery packs can be added to increase the backup runtime as per specific requirements.

More: 6KVA Online UPS price in Bangladesh

What is the price of Power Guard PG 6KVA Standard Backup Online UPS in Bangladesh?

The latest price of Power Guard PG 6KVA Standard Backup Online UPS in Bangladesh is ৳125,000.00 . You can buy the Power Guard PG 6KVA Standard Backup Online UPS at best price from BME ONLINE SHOP, Bangladesh.
