Brand | Power Guard 1KVA |
Model | Power Guard 1KVA |
To AC Mode | 87% |
To Battery Mode | 83% |
Nominal Voltage | 200/208/220/230/240VAC |
Input Voltage Range | 110-280 VAC (Based on Load at 50%) |
Frequency Range | 46Hz-54Hz / 56Hz-64Hz |
Phase | Single phase with ground |
Power Factor | R0.99 @ nominal voltage (100% load) |
Battery Type | 12 V / 8.2Ah |
Numbers | 3 |
Typical Recharge Time | 4 hours recovery to 90% capacity |
Charging Current (max.) | 1.0A |
DC Voltage | 36 VDC |
Output Voltage | 200/208/220/230/240VAC |
Voltage Regulation | ±1% |
Frequency Range (Synchronized Range) | 46 ~ 54 Hz or 56 ~ 64 Hz |
Frequency Range (Batt. Mode) | 50 Hz or 60 Hz ±0.1% |
Current Crest Ratio | 3:01 |

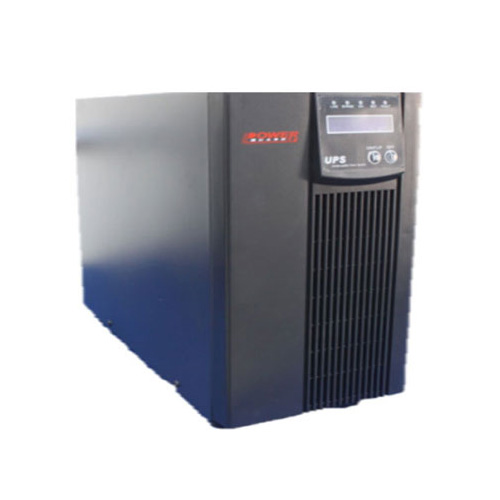

Buy Power Guard PG 1KVA Metal Body Online Standard Backup UPS Price in Bangladesh.
The Power Guard 1KVA Metal Body Online Standard Backup UPS is likely to be a small to medium-capacity uninterruptible power supply (UPS) designed to provide reliable and continuous power protection for critical electronic equipment. The "1KVA" in the product name indicates that the UPS has a capacity of 1,000 Volt-Amperes, which represents the power it can supply to connected devices. This UPS is suitable for supporting small to medium-sized IT equipment or critical loads that require backup power. An online UPS employs double conversion technology, where the incoming AC power is first converted to DC and then back to AC again. This ensures a constant, clean, and regulated output power, making it ideal for protecting sensitive and mission-critical devices. The UPS comes with an internal battery bank that provides power to connected devices during power outages. The online double conversion technology means there is no transfer time when switching to battery power, ensuring uninterrupted power delivery to the load. Online UPS systems typically provide precise voltage regulation, ensuring that connected devices receive a stable power supply even when the input voltage fluctuates. The UPS is likely to have built-in surge protection to shield connected equipment from voltage spikes and transients. Many UPS models come with an LCD display or LED indicators on the front panel, providing real-time information about the UPS status, load capacity, battery level, and other relevant data. The UPS may have multiple communication ports, such as USB, RS-232, or SNMP, enabling remote monitoring and management of the UPS through compatible software. Some UPS models allow for scalability, where additional battery packs can be added to increase the backup runtime as per specific requirements. Warranty: 01 Year Battery & 01 Service with Spare Parts.
