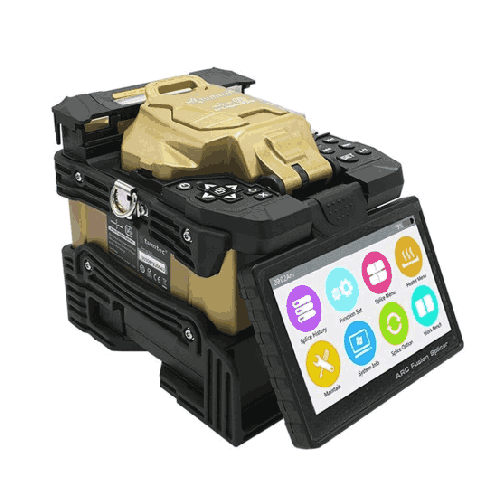

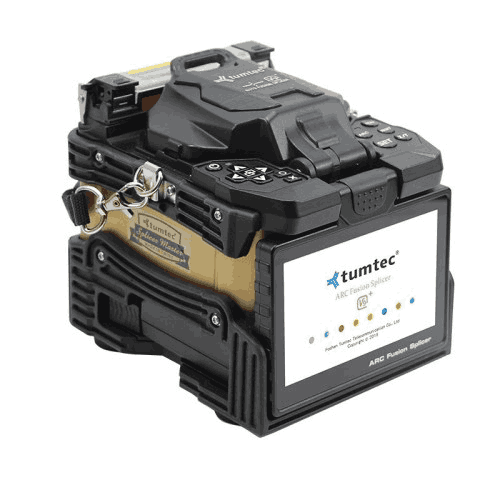

Tumtec V9 mini Core to Core 6 Splicer Machine

Tumtec V9 mini Core to Core 6 Splicer Machine in Bangladesh

Building out high-capacity fiber optic infrastructure across crowded metropolitan environments and regional distribution hubs requires absolute precision and dependable hardware. When internet service providers and telecommunication contractors deploy expansive Fiber to the Home (FTTH) grids or long-haul trunk lines, minimizing splice loss is crucial for network performance. The Tumtec V9 mini Core to Core 6 Splicer Machine stands out as an advanced, high-performance fusion splicer engineered to handle demanding field operations. Distributed by Business Machine & Equipment (BME), this compact device brings true core-to-core alignment technology and intelligent automated calibration directly to field engineering teams across Bangladesh.

At the technical center of the V9 mini is a sophisticated 6-motor core alignment system driven by advanced German CNC manufacturing technology. Unlike basic cladding-alignment machines, this motorized framework positions individual glass cores independently along precise axes to guarantee ultra-low insertion loss. The unit accommodates single-mode (SM), multi-mode (MM), dispersion-shifted (DS), and non-zero dispersion-shifted (NZDS) fibers with exceptional accuracy. Splicing operations finish in an impressive average of 6 seconds in quick mode, while the high-efficiency tube heater completes shrink cycles in roughly 13 seconds, enabling field crews to maximize productivity during large deployment projects.

Visual monitoring and system control are managed through a sharp 4.3-inch high-resolution color LCD touch screen. The dual-camera optical arrangement offers high-magnification X and Y views of the fiber strands, allowing installers to inspect joint points thoroughly before heat application. To support comprehensive project documentation, the internal memory saves up to 20,000 recent splice records and 200 operational images. Furthermore, automatic arc calibration adjusts dynamically based on current air pressure and temperature changes, ensuring consistent performance across varying weather conditions.

Field endurance and power reliability are vital during long shifts or unexpected load-shedding events. The unit is powered by a robust 5200mAh rechargeable lithium-ion battery, supporting up to 250 continuous splicing and heating cycles per charge. Its rugged, shock-resistant housing is built to withstand dust, moisture, and rough transport across active job sites in Dhaka, Chattogram, and regional corridors. Integrated high-brightness white LED lights illuminate the work area, making it safe and easy to operate inside dark utility boxes or evening enclosures.

Whether constructing corporate local area networks or maintaining critical transmission lines, utilizing a true core-alignment splicer ensures long-term link stability. BME ensures that local network operators gain direct access to authentic hardware backed by transparent standards and dependable customer support.

✅ Key Features

• True 6-Motor Core Alignment: Uses independent motorized axes with advanced German CNC technology to align fiber cores with extreme precision.

• Ultra-Fast Processing: Achieves quick-mode splicing in about 6 seconds and tube heating in roughly 13 seconds.

• High-Capacity Battery: Equipped with a 5200mAh rechargeable battery supporting up to 250 continuous splice and heat cycles.

• HD Touch Screen Interface: Features a bright 4.3-inch color high-resolution touch display with 480x magnification.

• Extensive Data Storage: Saves up to 20,000 recent splice records and 200 operational images for project tracking.

• Automatic Environmental Calibration: Adjusts arc parameters automatically based on real-time air pressure and temperature.

• Rugged Field Build: Designed to withstand dust, moisture, and physical shock on demanding outdoor work sites.

• Built-In LED Illumination: Features triple white LEDs to illuminate the V-groove area during night work or dark indoor spaces.

✅ Usage / Applications

• FTTH Network Construction: Splicing drop cables and distribution lines for high-speed fiber-to-the-home internet providers.

• ISP Backbone Maintenance: Repairing damaged optical links and establishing new trunk connections across urban and rural zones.

• Enterprise Data Center Cabling: Installing high-speed multi-building local area networks and server room cross-connects.

• Telecom Substation Work: Performing critical repairs and maintaining optical distribution frames inside communication racks.

• CCTV Surveillance Backhaul: Setting up dependable long-distance fiber links for municipal and corporate security grids.

• ISP Emergency Restoration: Rapidly repairing broken outdoor fiber lines to restore user connectivity with minimal downtime.

✅ Benefits of This Product?

• Guarantees Minimum Signal Loss: Core-to-core alignment meets strict telecommunication criteria for optimal transmission efficiency.

• Maximizes Crew Productivity: Rapid processing speeds allow technicians to complete more high-precision joints per shift.

• Ensures Power Independence: Robust 5200mAh battery prevents work stoppages during extended field assignments.

• Simplifies Quality Control: Internal record logging makes compliance auditing and client reporting effortless.

• User-Friendly Touch Control: Modern interface simplifies complex menu navigation for operators of all skill levels.

• All-Weather Adaptability: Automatic arc calibration ensures consistent fusion quality regardless of environmental shifts.

✅ Ideal For

Telecommunication engineers, senior ISP field technicians, fiber optic contractors, and network infrastructure builders operating across Bangladesh. It serves professionals handling demanding backbone rollouts, data center interconnections, and complex FTTH projects where absolute splice accuracy and network uptime are essential.

✅ Why Choose the Tumtec V9 mini Core to Core 6 Splicer Machine?

Selecting the Tumtec V9 mini means investing in top-tier optical splicing accuracy packaged in a portable, field-ready unit. While basic active V-groove machines work well for standard drops, the 6-motor core alignment system removes human error by mechanically positioning actual glass cores for maximum light transmission. Its rapid 6-second splice time, powerful battery, and automated environmental calibration address the real-world demands faced by technicians working long hours on location. For growing network operators who demand professional results and rugged reliability, this machine delivers unmatched long-term value.

✅ Why Buy This Product from BME?

Purchasing from Business Machine & Equipment (BME) guarantees access to original fiber optic testing and splicing hardware sourced specifically for professional users in Bangladesh. BME focuses on supplying authentic equipment supported by clear product specifications and dependable customer guidance. Corporate buyers and ISP procurement teams benefit from transparent pricing, straightforward purchasing processes, and responsive service tailored to local business requirements. Dealing with a trusted local supplier ensures your critical equipment arrives safely and ready for deployment.

✅ Buying Guide

• Evaluate Project Requirements: Determine whether your network demands core-alignment precision (such as backbone or high-density FTTH links) where signal attenuation must be tightly controlled.

• Verify Fiber Compatibility: Confirm that the machine supports the specific bend-insensitive or single-mode fibers utilized in your cable layout.

• Manage Field Power: Keep the 5200mAh battery charged before heading out to remote work sites to ensure uninterrupted full-day performance.

• Maintain Optical Cleanliness: Regularly clean the internal V-grooves, objective lenses, and electrodes using approved cleaning kits to prevent alignment errors.

• Avoid Common Mistakes: Never attempt to splice unstripped, dirty, or poorly cleaved fibers, as this will trigger arc errors and wear out electrodes prematurely.

✅ Customers Ask About / Frequently Asked Questions

• What alignment method does the Tumtec V9 mini use?

  It features a true 6-motor core-to-core alignment system built with German CNC technology.

• How fast is the splicing process?

  It achieves an average splicing time of about 6 seconds in quick mode.

• How long does tube heating take?

  Quick heating takes roughly 13 seconds, while typical heating is about 30 seconds.

• How many splices can the battery handle on a single charge?

  The 5200mAh battery supports approximately 250 continuous splice and heat cycles.

• Does it feature a touchscreen display?

  Yes, it features a 4.3-inch color high-resolution display with full touch screen support.

• How many records can the internal memory save?

  It stores up to 20,000 recent splice records and 200 operational images.

• Does it adjust automatically to weather changes?

  Yes, it features automatic arc calibration by air pressure and temperature.

• Is this machine suitable for outdoor field conditions?

  Yes, its rugged build is designed to handle challenging outdoor environments.

✅ Why Buy This Product

Order the Tumtec V9 mini today to maximize your network performance and achieve flawless core alignment on every connection. Equip your technical team with an industry-leading fusion splicer built for precision, speed, and enduring reliability.
