Model | F106 |
Country of Origin & Manufacture | China |
Measuring / Test Distance | 1 ~ 15cm |
Reaction Time | 0.5 second |
Over Range Warning | Display "Hi"/"Lo" |
Emissivity | Fastened to 0.95 |
Spectral Response | 6~14um |
Body Temperature Range | 32.0 ºC to 42. 9ºC / 85.9ºF to 109.2ºF |
Object Temperature Range | 0 ºC to 100ºC (32ºF to 212ºF) |
Resolution | ±0.1ºC /ºF |
Memory | Automatic recall of 32 memories |
Display | LCD Back-Lit Display |
Reading Scale | Celsius or Fahrenheit |
Automatic Shut Off | In 20 Seconds |
Working Temperature | 16ºC to 35ºC (60.8ºF to 104ºF) |
Storage Temperature Range | -20ºC to 55ºC(-4ºF to 131ºF) |
Relative Humidity ( Operation) | 10%~90% RH |
Relative Humidity ( Storage ) | <80% RH |
Power Consumption | When Off ≤10µw & When measurement ≤30mW |
Power Supply | DC 3V 2AAA Alkaline battery |
Dimensions (W x L x H) | 125mmx74mmx38mm |
Weight | 82g |
Standards | EN60601-1, ISO 80601-2-56 ASTM 1965-98 |
Warranty | No Warranty. |

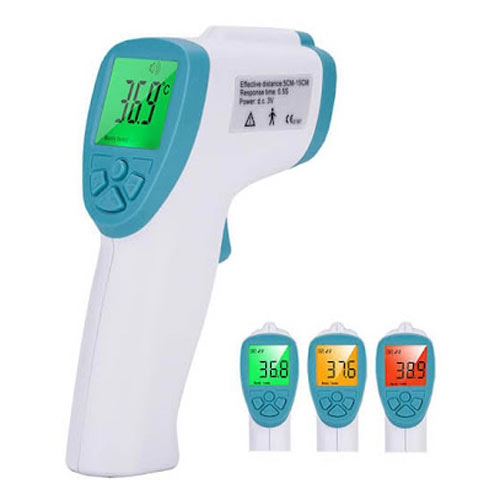

The F106 Non-Contact human body infrared thermometer (IR) Gun Measurement Device has Forehead digital baby thermometer infrared for milk water room medical pacifier fever body thermometer non-contact baby care. the infrared Thermometer is a thermometer that measures the temperature of the human body by using the principle of receiving infrared. When used, it is only required to detect with the forehead to measure the body temperature quickly and accurately. Any object with a temperature higher than absolute zero will radiate a certain proportion of infrared energy according to its own temperature. The amount of radiation energy and its distribution by wavelength is closely related to the object's surface ( human body) temperature. In accordance with this principle, the surface ( human body) temperature of the forehead can be measured accurately, and the accurate body temperature can be determined and shown by offsetting the difference between the surface temperature of the forehead and the actual body temperature.
We will pack it well, pls don't shake your head when measuring, it will read inaccurately when the battery is low, pls keep your forehead not covered by hair or others, pls long-press the back button. change Object/Body mode, can't use a rechargeable battery or strong battery, pls only use a cheap regular battery, when you change settings. it must change F1-F2-F3-power off, then setting success and Functionally Accuracy ±0.2℃(0.4℉), It will automatically turn off after not using it for the 20s, Normal work temperature 10-40℃, Measure range of object mode is 0-100℃(32-212.0℉), Measure the range of body mode is 32.0-42.9℃(89.6-109.3℉), Mesure distance 5-15cm(1.9-5.9in)between thermometer to the forehead, Battery 2pcs AAA batteries(not contain batteries because ship problem) & Multifunctional body mode(forehead), object mode(milk, kitchen, room temperature).
The F106 Non-Contact Body Infrared Thermometer (IR) Temperature Gun Measurement Device is a professional non-contact infrared thermometer, which can be used to measure both the temperature of the human body and the object's surface. With a new generation microchip, greatly improves the accuracy of the digital thermometer.
The infrared thermometer F106 measures the surface temperature of a Human Body or object. The unit’s optics sense emitted, reflected, and transmitted energy which is collected and focused onto a detector. The unit’s emitted, reflected, and transmitted energy is collected and focused onto a detector. The unit’s electronics transmitted energy which is displayed on the unit. For increased ease and accuracy the laser pointer makes aiming even more precise.
How to use for Body Temperature:
Press the measurement button to turn on the thermometer and it displays the boot screen. after POST and two beeps, it will display the value of room temperature and be ready for measurement. now you make sure the thermometer is in underbody mode. keep distance from the upper eyebrows to the probe. press the measurement button and when it gives a "beef" measurement is finished and the value will be displayed. if the measurement value is exceeding the alarm value, it will give "bi. bi. bi" as an Indication. after measurement, if the thermometer is idle for 20 seconds, it will display "OFF" and gives a "Bi" and shut off automatically.
