Brand | H3C |
Model | SFP-GE-SX-MM850-D |
Type | Fiber Module |
Form Factor | SFP |
Wavelength | 850nm |
Connector | Duplex LC |
Media | MMF |
TX Power | -9.5 ~ - 3dBm |
Max. Data Rate | 1000Mbps |
Max. Cable Distance | 550m over OM2 MMF |
Optical Components | VCSEL 850nm |
DOM Support | Yes |
Receiver Sensitivity | < -17dBm |
Protocols | MSA Compliant, IEEE 802.3z |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) |

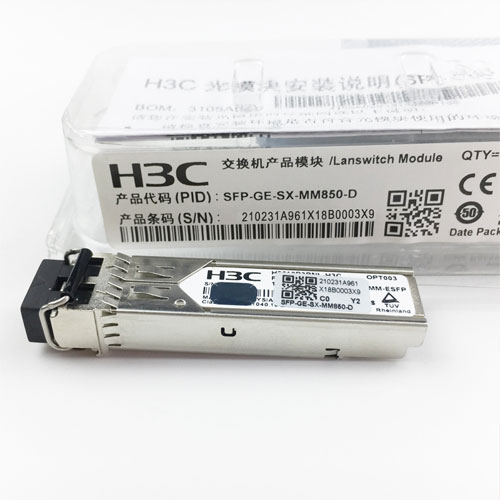

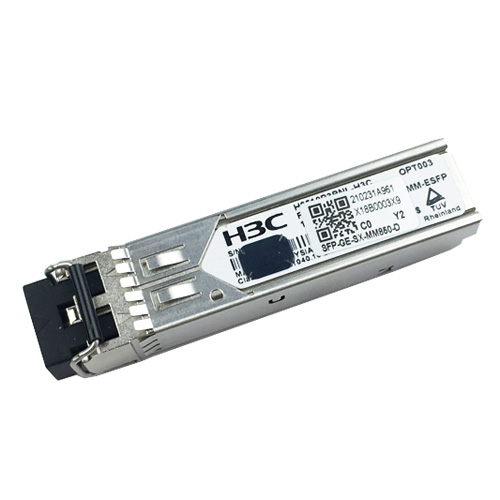

The H3C SFP-GE-SX-MM850-D is SFP (Small Form factor Pluggable) Transceiver, operating over duplex multi-mode fiber. It has minimum guaranteed optical budget of 7.5 dB, with in most cases is enough to reach about 550 m distance. This transceiver use top quality VSCEL Laser transmitter with operating at nominal wavelength 850 nm. It support DDM/DOM optical diagnostics, with provide diagnostic information about the present operating conditions. The H3C SFP-GE-SX-MM850-D operates in standard 0°-70°C temperature range and has duplex LC interface. The SFP supports 1.063-1.25Gbps data rate and such applications as Gigabit Ethernet (1.25 Gbps) and 1G Fiber Channel (1.0625 Gbps).
The H3C SFP-GE-SX-MM850-D compatible SFP transceiver supports up to 550m link lengths over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector. Each SFP transceiver module is individually tested to be used on a series of H3C switches, routers, servers, network interface card (NICs) etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.

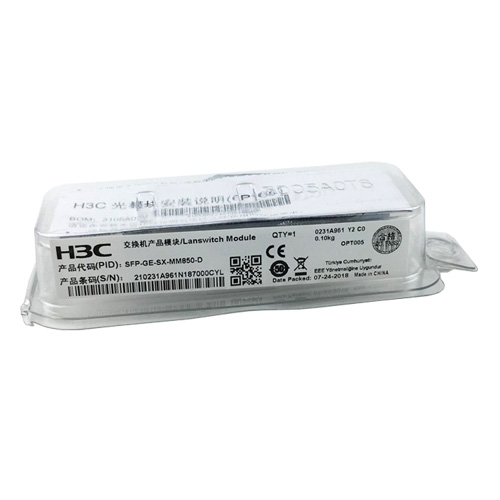

This SFP-GE-SX-MM850-D is 100% genuine H3C product. It won't have any compatibility problem with your H3C devices. And the H3C 1000BASE-SX SFP Transceiver, MMF 850nm 550m, Duplex LC, DDM is factory new with original packaging.
