Brand | GMAC |
Model | HANOVER-LX33160 |
Product Type | Uninterruptible Power Supply (UPS) |
Power Rating | 160KVA |
Topology | Online |
Input Voltage | 200-240VAC |
Output Voltage | 220VAC +/- 1% |
Frequency | 50/60Hz +/- 1% |
Efficiency | >93% |
Waveform | Pure sine wave |
Transfer Time | Zero |
Battery Type | VRLA |
Battery Backup Time | 10-30 minutes (depending on load) |
Bypass | Internal |
Communication Port | RS232, USB |
Dimensions (H x W x D) | 1400 x 1300 x 520 mm |
Weight | 400 kg |

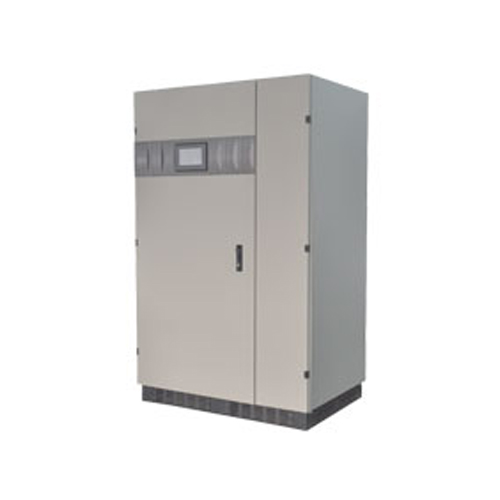

Buy GMAC HANOVER-LX33160 160KVA Transformer Based Industrial Online UPS Price in Bangladesh.
The GMAC HANOVER-LX33160 160KVA Transformer Based Industrial Online UPS is a robust and reliable uninterruptible power supply (UPS) designed to cater to industrial applications and mission-critical systems. With a capacity of 160kVA or 144kW, this UPS model, manufactured by GMAC with its origin in Germany, offers a high level of power reliability and protection for industrial facilities. The UPS operates on a 3:3 phase configuration, accepting a wide input voltage range of 380/400/415Vac with variations of -25% to +20%. Its online double-conversion technology ensures continuous and seamless power supply to connected equipment, safeguarding them against power disturbances, voltage fluctuations, and electrical anomalies. The input frequency range of 50/60Hz with a tolerance of ±5% further enhances its adaptability to varying power sources. The UPS boasts an impressive power factor of >0.97 with a filter, ensuring efficient utilization of power and reducing unnecessary energy wastage. On the output side, the UPS provides a stable output voltage of 380/400/415Vac with an accuracy of ±1%, making it suitable for sensitive industrial equipment. The output frequency remains consistent at 50/60Hz with a tight tolerance of ±0.05%. Additionally, the Total Harmonic Distortion of the output voltage is kept below 3% when operating under linear loads, thereby ensuring clean and reliable power delivery. For bypass operation, the UPS supports a rated voltage of 380/400/415Vac with auto-sensing capabilities for a frequency range of 50/60Hz. It also offers voltage and frequency protection features, allowing adjustable upper and lower limits to suit specific requirements. The UPS employs a 384Vdc battery system composed of 12V batteries, totaling 40 pieces. This setup, along with optimized battery management and self-test capabilities, ensures reliable backup power during mains failure. The GMAC HANOVER-LX33 is equipped with various features that enhance its functionality and performance. It has a fast transfer time of 0ms from line mode to battery mode, eliminating any interruptions during power switchover. The UPS can handle overload conditions up to 150% for short durations, protecting critical equipment during sudden power spikes. The UPS features LED and LCD displays that provide comprehensive information about its input, inverter, bypass, battery, and output status. Users can monitor parameters such as voltage, frequency, power, power factor, battery status, load percentage, and UPS history records through the LCD display. Communication interfaces include dry contacts, RS232, RS485, and an optional SNMP card, facilitating easy integration with network management systems for remote monitoring and control. Built to withstand harsh industrial environments, the UPS operates within a temperature range of 0°C to 40°C and can be stored in temperatures between -25°C to 55°C. It is also designed to function effectively at altitudes below 1500m and in humid conditions up to 95% (non-condensing). The noise level during operation remains below 65dB, ensuring a relatively quiet performance. The UPS complies with various international safety, performance, and EMC standards, including IEC/EN 62040-1, IEC/EN 60950-1, IEC 62040-3, and a range of IEC 61000 series standards, guaranteeing its reliability and adherence to industry regulations. In summary, the GMAC HANOVER-LX33 160KVA Transformer Based Industrial Online UPS is a high-performance solution tailored for industrial applications, providing seamless and stable power to critical equipment, backed by a robust battery system and a comprehensive set of features for enhanced control and monitoring. Its advanced technology and solid construction make it a reliable choice for industries seeking maximum power reliability and protection.
