Brand | Sekonic |
Model | SR-11000 |
Read Head | 1 (Single side) or 2 (Dual Side) |
Mark Discrimination | 16 Steps (256 Degrees) |
Light Source | Infra-Red Ray (940nm) or Visible Red Ray (660nm) |
Mark Implements | 1/6″ (48 Channels), 0.2″ (40 Channels), 0.25″ (33 Channels), or 0.3″ (27 Channels) |
Mark Sharpes | Rectangle Oval and Circles |
Read Technique | Reading reflective sensor |
Error Detection | Automatic Peper Discharge, Sheet Empty, Double feeding, Timing mark, Left and skew lest sheet on the (eject) tray |
USB | 2.0 (High Speed) |
LCD Display | 40 Charactors (20 charactors x 2 lines) |
Operation button | 5 buttons |
Hopper Capacity (*1) | 500 Sheets <Option> A4 sheet loading assist |
Marksheet Size | Card (IBMcard) B5 A4 8.5″ 9″ |
Marksheet width | 82.55 to 228.6mm (3.25″ to 9″) |
Marksheet length | 187 to 304.8mm (7.36″ to 12.0″) |
Rows | 80 rows |
Columns | 48 columns (1/6″) 40 columns (1/6″) 33 columns (1/4″) 27 columns (1/3″) |
Form Quality | High Quality paper or OCR paper |
Thickness | 72-135kg (0.11-0.19mm / 83.8g / m2 to 157g/m2) |
Feed Speed | Up to 11,000/hour |
Suction system | In the device |
Printing method | Ink Jet |
Print contents (*2) | Fixed characters (Max 20 bytes) Sequence number (Max 8 digits) Date, time (yyyy/mm/dd hh:mm:ss) |
The number of printable Characters | Alphabet, Numeric, Japanese (Kana) |
Character size | H:3mm W:4mm-6.4mm (H:0.1″ W:0.15″-0.25″) |
Character gap | 0.8mm-92mm (0.03″-3.62″) |
Print Pixels | H: 12 pixels W: 9 pixels |
Temperature | 5-35 °C (41-95°F) |
Humidity | 30-80% |
W x H x D Inch | 31.5″ x 19.3″ x 14.3″ |
Weight | 37 kgs |

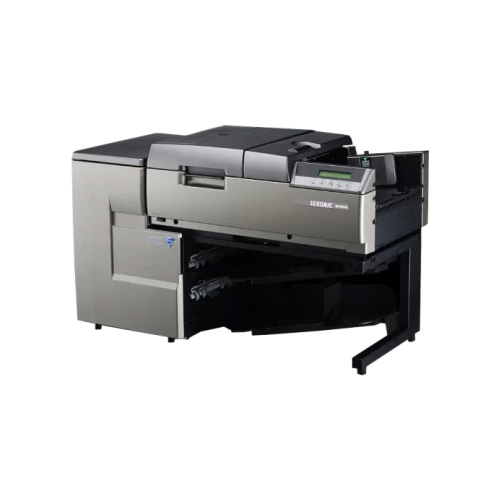

Buy Sekonic SR-11000 OMR Scanner Machine Price in Bangladesh.
The Sekonic OMR Scanner SR-11000 is a high-speed, high-accuracy optical mark reader that can process up to 11,000 sheets per hour. The SR-11000 features a number of advanced technologies that make it one of the most reliable and efficient OMR scanners on the market. The SR-11000 is also easy to use and maintain. It comes with a comprehensive user manual and a number of helpful features, such as a built-in help system and a self-diagnostic function. The Sekonic OMR Scanner SR-11000 is a powerful and versatile tool that can be used to automate a wide variety of tasks. It is a reliable and efficient solution for businesses and organizations that need to process large volumes of OMR sheets quickly and accurately.
