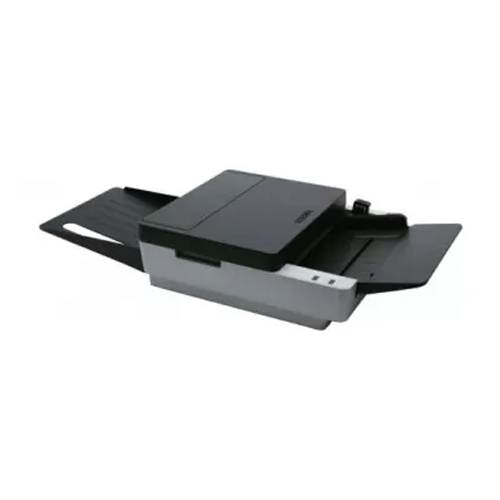

Sekonic SR-1800EX OMR Scanner Machine

Regular Price:৳0.00
Availability: SKU: 7.29.230.2466
Quick Overview
Brand:
SEKONIC
Model:
SR-1800EX
  • Reading accuracy: 99.9%
  • Mark size: 3 mm to 6.4 mm
  • Mark pitch: 0.8 mm to 92 mm
  • Mark types: Rectangle, oval, circle
  • Reading speed: Up to 30 sheets per minute

View More
Rating: (0 Reviews)

Share:
  • Support

    Saturday – Thursday: 09 AM - 06 PM.
  • Hotline

    0967 881 4452
  • Whatsapp

    +8801709998397
  • Payment

    Cash on Delivery | Card | Online Payment
  • Shipping Cost

    Inside Dhaka 150tk | Outside Dhaka 250tk
  • Warranty Policy

    Read More

Specification

General Information
Brand Sekonic
Model SR-1800EX
Read Sensor
Read Head 1 (Single side) or 2 (Dual Side)
Mark Discrimination 16 steps (256 Degrees)
Light Source Infra-Red Ray (940 nm) or Visible Red Ray (660 nm)
Mark Implements Infra-Red Ray: Pencil, Visible Red Ray : Pencil + Pen
Read head Channels 1/6 inch (48 Channels)
Mark Shapes Rectangle Ovals and Circles
Read Technique Reading Reflective Sensor
Equipment Control
Display LED (2 LEDs “READY” &“ERROR”)
Operation Button 2 (START / CLEAR)
Form Input
ADF (Hopper) Approx. 50 forms
Scanning
Form Width 63.55 to 228.60 mm(2.5 Inch to 9.0 Inch)
Form Length 110 to 355.6 mm(4.3 Inch to 14.0 Inch)
Number of Rows 108 Rows
Number of Columns 48 Columns
Mark Position Under 5,184 Mark Positions
Paper Weight 72 to 135 kg (0.11 to 0.19 mm / 84 to 157 g/m2)
Throughput speeds *Approx. 1800 forms / hour
Form Output
Stacker 100 forms
Power
Voltage / Relatives AC100V 50 / 60Hz to 240V 50 / 60Hz AC Adaptor : Input 24V 2.1A
Conditions
Temp / Humid 5 to 35°C (41 to 95°F) / 30 to 80%
Dimensions
W x H x D (Inch) Footprint 12.9 x 5.0 x 28.7 Inch / 12.9 x 5.0 x 15.4 Inch

Description

Buy Sekonic SR-1800EX OMR Scanner Price in Bangladesh.

The Sekonic SR-1800EX OMR Scanner is a compact, high-speed optical mark reader that can process up to 30 sheets per minute. The SR-1800EX features a number of advanced technologies that make it a reliable and efficient OMR scanner. The SR-1800EX is also easy to use and maintain. It comes with a comprehensive user manual and a number of helpful features, such as a built-in help system and a self-diagnostic function. The Sekonic SR-1800EX OMR Scanner is a powerful and versatile tool that can be used to automate a wide variety of tasks. It is a reliable and efficient solution for businesses and organizations that need to process small to medium volumes of OMR sheets quickly and accurately. 256 density detection (shows as 16 steps on the software) provides accurate capture the OMR marks. SR-1800EX has function to eliminate the feeding errors (double feeding / no feeding) etc… to capture the OMR data correctly. It can be connected to computers via USB or RS-232C. It comes with a general reading software that can save Text or CSV file for easy to analize by the next application software. It also supports printer option to print information such as consecutive numbering, dates, etc on each sheet. The Sekonic SR-1800EX OMR Scanner is a good choice for businesses and organizations that need to process small to medium volumes of OMR sheets quickly and accurately. It is a reliable and efficient scanner that is easy to use and maintain.

What is the price of Sekonic SR-1800EX OMR Scanner Machine in Bangladesh?

The latest price of Sekonic SR-1800EX OMR Scanner Machine in Bangladesh is ৳0.00 . You can buy the Sekonic SR-1800EX OMR Scanner Machine at best price from BME ONLINE SHOP, Bangladesh.
