Brand | Sekonic |
Model | SR-3500 |
Reading Speed per hour | Approx 3500 pages |
Input Process | ADF / Head Feed (Adjusted by Operation mode) |
Form Input | 500 forms |
Mark writing implements | Pencil (infra-red ray) / Pen & Pencil (Visible red ray-Option) |
Read Technique | Reading reflective sensor |
Number of read head | 1 (Standard) or (Option) |
Mark Discrimination | 256 degrees (16 steps of discrimination) |
Calibration | Automatic |
Mark Shapes | Rectangle, Ovals and Circles |
Communication Interface | USB 2.0 / RS-232C serial interface |
Baud rate (Only RS-232C mode) | 9,600 to 115,200 bits / second |
Paper Thickness | 72kg-135kg (84g/m2 – 157g/m2) |
Paper Size | 63.5 x 110 to 228.6 x 355.6 (mm) / 2.5 x 4.33 to 9 x 14 (inch) |
Mark Opsition | 5,232-mark positions (per each page) |
Maximum Scan Area | 48 x 109 |
Temperature | 5-35°C (41-95F) |
Relative Humidity | 30-80% |
Power Requirements | 100-220 VAC 50Hz/60Hz |
Noice | 60db |
Dimensions (W x H x D mm) | 365 x 227 x 575 (mm) |
Weight | 17kg |
Backside Reading | Option |
Select Stacker | Option (SR-3500) |
Printer | Option (SR-3500) |
Bar Code Reader (Horizonal) | (JAN / EAN / UPC / ITF / CODE39 / EAN128 / CODE93) |
Bar Code Reader (Vertical) | (JAN / EAN / UPC / NW7 / ITF / CODE39 / INDUSTRIAL 2 OF 3 / COOP 2 OF 5) |
Pen & Pencil Reading | Option (Black and Blue Ball-Point-Pen) |
Utility Software | “Markview” |

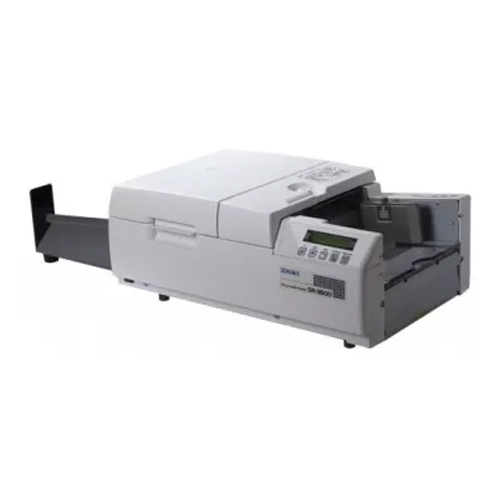

Buy Sekonic SR-3500 OMR Scanner Machine Price in Bangladesh.
The SR-3500 features a number of advanced technologies that make it a reliable and efficient OMR scanner. The SR-3500 is also easy to use and maintain. It comes with a comprehensive user manual and a number of helpful features, such as a built-in help system and a self-diagnostic function. The Sekonic SR-3500 OMR Scanner is a powerful and versatile tool that can be used to automate a wide variety of tasks. It is a reliable and efficient solution for businesses and organizations that need to process medium to high volumes of OMR sheets quickly and accurately. 256 density detection (shows as 16 steps on the software) provides accurate capture the OMR marks. SR-3500 has function to eliminate the feeding errors (double feeding / no feeding) etc… to capture the OMR data correctly. It can be connected to computers via USB or Ethernet. It comes with a general reading software that can save Text or CSV file for easy to analize by the next application software. It also supports printer option to print information such as consecutive numbering, dates, etc on each sheet. It has a high capacity input ADF tray (max: 500 sheets) that can be used to scan large volumes of sheets quickly and easily. It also has a number of optional accessories, such as a barcode reader, a stacker, and a printer, that can be used to further automate the scanning process. The Sekonic SR-3500 OMR Scanner is a good choice for businesses and organizations that need to process medium to high volumes of OMR sheets quickly and accurately. It is a reliable and efficient scanner that is easy to use and maintain.
