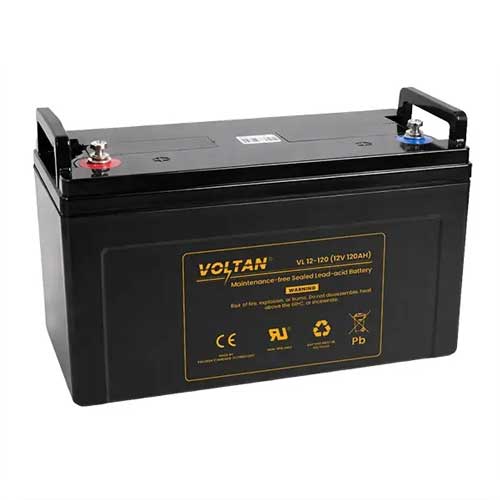

Voltan 12V-120AH UPS Battery

Voltan 12V-120AH UPS Battery in Bangladesh

Reliable backup power begins with a battery that can deliver dependable energy when the main electricity supply is unavailable. The Voltan 12V-120AH UPS Battery is a high-capacity battery designed for UPS backup applications where stable energy storage and dependable discharge performance are important. With a nominal voltage of 12V and a rated capacity of 120Ah under the specified 10-hour discharge condition, this battery provides a substantial energy-storage platform for compatible UPS systems. The manufacturer lists an internal resistance of approximately 4mΩ when fully charged at 25°C, while its designed floating life is specified as 5 years or more under the stated conditions.

For homes, offices, businesses, and other installations that depend on UPS systems, battery quality directly affects backup performance. A UPS can only provide meaningful battery backup when its connected battery bank has sufficient capacity and is correctly matched with the system. The Voltan 12V-120AH is therefore suited to users who need a substantially larger battery capacity than compact 7Ah, 9Ah, or 12Ah UPS batteries.

The battery has a nominal 12V rating and provides 120Ah capacity at a 10-hour discharge rate to 10.8V at 25°C. The manufacturer's published data also lists 105Ah at a 5-hour discharge rate to 10.5V and 74.4Ah at a 1-hour discharge rate to 9.60V. These different ratings are important because actual battery capacity depends on the discharge rate rather than being a single fixed number in every operating condition.

High-Capacity 120Ah Energy Storage

The most important characteristic of the Voltan 12V-120AH UPS Battery is its 120Ah nominal capacity under the specified 10-hour test condition. For compatible UPS installations, a higher-capacity battery can provide a larger energy reserve than lower-capacity batteries, although actual backup time always depends on the connected load, UPS efficiency, battery condition, discharge rate, and configuration.

At the nominal rating, the battery represents approximately 1.44kWh of nominal electrical energy when calculated from 12V × 120Ah. This is an energy calculation based on the nominal voltage and rated capacity, not a guaranteed amount of usable AC output energy. Actual usable energy will vary depending on the UPS, discharge characteristics, load, cutoff voltage, and operating conditions.

This distinction is important for customers choosing a battery for a specific UPS system. Rather than assuming a particular number of backup hours, users should match the battery with their UPS specifications and calculate expected runtime from the actual connected load.

Designed for UPS Backup Applications

The Voltan 12V-120AH is specifically listed by the manufacturer as a battery for UPS applications.

A UPS battery serves as the energy reservoir that allows a compatible UPS system to continue supplying connected equipment when utility power fails. For larger UPS systems, high-capacity batteries can be used to create an appropriate battery bank depending on the UPS's required DC voltage.

Because this is a 12V battery, the correct number of batteries depends entirely on the UPS architecture. Some UPS systems operate with a single 12V battery, while larger systems may require multiple batteries connected in series or parallel. Customers should therefore verify their UPS manufacturer's required battery voltage and configuration before purchasing.

Stable Electrical Characteristics

The manufacturer specifies approximately 4mΩ internal resistance when the battery is fully charged at 25°C. Lower internal resistance can be beneficial in high-current battery applications because electrical losses associated with internal resistance are reduced.

The published specifications also identify copper terminal material and T5/T11 terminal types. Proper terminal compatibility is essential when replacing an existing UPS battery because physical and electrical compatibility must both be considered.

The battery's maximum charging current is specified as 36A, while its maximum discharge current is listed as 960A for 5 seconds. These figures should not be interpreted as recommended continuous operating currents. They are manufacturer-specified electrical limits under stated conditions, and the UPS's charging and discharge management should always remain within the battery manufacturer's specifications.

Charging Specifications

Correct charging is critical for battery performance and service life. The manufacturer specifies a float charging voltage of 13.60V to 13.80V at 25°C, with temperature compensation of -18mV/°C. For cyclic charging, the published voltage range is 14.50V to 14.90V at 25°C, with temperature compensation of -30mV/°C.

These specifications are particularly important when installing the battery in a UPS, charger, inverter, or compatible backup system. A suitable charging system should be configured according to the battery manufacturer's requirements.

Using an incompatible charger or an incorrect charging voltage can adversely affect battery performance and service life. For this reason, professional installation or verification by a qualified technician is recommended when replacing batteries in larger UPS systems.

Performance Across Different Discharge Rates

Battery capacity is influenced by the rate at which the battery is discharged. The Voltan specification sheet clearly demonstrates this by providing capacity ratings at different discharge periods.

At 25°C, the battery is rated at 120Ah for a 10-hour discharge to 10.8V. At a 5-hour discharge to 10.5V, the published capacity is 105Ah. At a 1-hour discharge to 9.60V, the capacity is listed as 74.4Ah.

This information is valuable when designing a UPS system because a high-power load can draw energy much more quickly than a light load. Therefore, the actual runtime should always be calculated using the intended load and battery discharge characteristics rather than simply dividing capacity by power consumption.

Temperature Considerations

Operating temperature can affect battery capacity. According to the manufacturer's published data, the 10-hour capacity is 102% at 40°C, 100% at 25°C, 85% at 0°C, and 65% at -15°C.

The nominal operating temperature is specified as 25°C ±3°C. The stated discharge operating range is -15°C to 50°C, while the charging range is -10°C to 50°C. The storage temperature range is specified as -20°C to 50°C.

For Bangladesh, where ambient temperatures can become high, appropriate installation conditions remain important. Keeping a UPS battery in a well-ventilated environment within the manufacturer's recommended temperature range can help maintain appropriate operating conditions.

Self-Discharge Characteristics

A battery naturally loses some stored charge while sitting unused. The Voltan 12V-120AH specification provides self-discharge information at 25°C.

After three months, the remaining capacity is specified as 91%. After six months, it is specified as 82%, while the published figure after twelve months is 65%.

These figures are useful when considering battery storage or backup inventory. Batteries should not simply be purchased and left unused indefinitely without appropriate maintenance or consideration of their storage requirements.

Physical Construction and Installation

The Voltan 12V-120AH has a published length of approximately 410±2mm, width of 180±2mm, and height of 240±2mm. The total height is also listed as approximately 240±2mm. Its approximate weight is 34.5kg with a stated tolerance of ±4%.

With a weight of around 34.5kg, this is not a small portable battery. Installation should therefore be performed carefully, particularly when the battery is being placed inside a UPS cabinet or battery enclosure.

Before purchasing, customers should check the available installation space and confirm that the dimensions and terminal arrangement match the existing UPS or battery cabinet.

Long Floating-Life Design

The manufacturer specifies a designed floating life of 5 years or more at 25°C.

A floating application generally means the battery remains connected to a charging system and is maintained in a charged state while waiting to supply power during an outage. Actual service life can vary depending on operating temperature, charging conditions, discharge frequency, depth of discharge, maintenance, installation quality, and other factors.

Therefore, the published 5-year-plus figure should be understood as the manufacturer's designed floating-life specification under stated conditions rather than a guarantee that every installation will achieve the same service life.

Suitable for Power Backup Systems

The Voltan 12V-120AH UPS Battery can be considered for compatible UPS installations requiring a 12V, 120Ah battery. Its relatively high capacity makes it particularly relevant to applications where a compact small-capacity UPS battery would not provide sufficient energy storage.

Potential applications may include compatible:

• UPS systems
• Office backup systems
• Business power protection systems
• Network and IT backup installations
• Equipment requiring battery-supported UPS power
• Larger backup-power configurations

The exact application should always be determined by the voltage, charging requirements, battery-bank configuration, and manufacturer's specifications of the UPS or backup system.

A Practical Choice for Bangladesh

Power interruptions and voltage instability can create challenges for homes and businesses that depend on computers, networking equipment, security systems, communication devices, and other electronics. A suitable UPS system can provide battery-backed power during interruptions, while a correctly matched high-capacity battery can help support longer backup requirements.

For Bangladeshi users, the Voltan 12V-120AH is relevant where a compatible UPS requires a 12V 120Ah-class battery. However, customers should focus on compatibility rather than simply choosing a battery based on capacity.

The battery should match the UPS's required battery voltage, charging profile, physical dimensions, terminals, and battery-bank design.

Reliable Backup Starts with the Right Battery

Choosing a UPS battery is not simply about selecting the largest Ah number available. Battery chemistry, capacity, voltage, discharge requirements, charging voltage, temperature, physical dimensions, and terminal configuration all matter.

The Voltan 12V-120AH provides a clear specification set that helps users and installers evaluate whether it is appropriate for their UPS system. Its 120Ah 10-hour capacity, approximately 4mΩ internal resistance, copper terminals, defined charging voltages, and 5-year-plus designed floating life make it a serious option for compatible backup-power applications.

For businesses and organizations, selecting a properly matched battery can also simplify maintenance and improve the predictability of backup-power planning. A battery that meets the UPS manufacturer's electrical and physical requirements is essential for safe and effective operation.

Important Compatibility Consideration

Before ordering the Voltan 12V-120AH UPS Battery, customers should verify the existing battery's voltage, capacity, dimensions, terminal type, and charging requirements.

The 12V rating does not mean this battery can automatically replace every 12V battery. The UPS must support the battery's charging voltage and capacity, and the physical installation must accommodate its approximately 410 × 180 × 240mm dimensions and approximately 34.5kg weight.

If a UPS uses multiple batteries, the complete battery-bank voltage and configuration must also be checked. When in doubt, consult the UPS manufacturer, an authorized service provider, or a qualified technician before installation.

Overall Value

The Voltan 12V-120AH UPS Battery is built around a straightforward proposition: substantial 120Ah energy-storage capacity in a battery designed for UPS applications.

Its published specifications provide useful information about capacity at different discharge rates, internal resistance, charging voltage, temperature performance, dimensions, weight, terminal type, and expected floating life. This makes it easier for installers and businesses to determine whether the battery is appropriate for a particular backup-power system.

For users in Bangladesh searching for a high-capacity 12V UPS battery, the Voltan 12V-120AH can be an appropriate choice when the UPS system is designed to operate with this battery specification.

✅ Key Features

• 120Ah Capacity: Provides substantial energy storage for compatible UPS backup applications.
• 12V Nominal Voltage: Designed for UPS systems requiring a 12V battery.
• 10-Hour Capacity Rating: Rated at 120Ah at 25°C under the manufacturer's specified 10-hour discharge condition.
• Multiple Discharge Ratings: Published capacity includes 105Ah at 5-hour discharge and 74.4Ah at 1-hour discharge.
• Approx. 4mΩ Internal Resistance: Manufacturer-specified internal resistance when fully charged at 25°C.
• Copper Terminals: Uses copper terminal material for electrical connection.
• T5/T11 Terminal Type: Published terminal configuration for compatibility checking.
• 36A Maximum Charging Current: Manufacturer-specified maximum charging current.
• 960A Maximum Discharge Current: Specified maximum discharge current for 5 seconds.
• 5 Years+ Designed Floating Life: Manufacturer's designed floating-life specification at 25°C.
• Temperature-Defined Operation: Published charging, discharging, and storage temperature ranges.
• Heavy-Duty Construction: Approximately 34.5kg, making it suitable for fixed backup-power installations.
• UPS Application: Specifically listed by the manufacturer as a UPS battery.

✅ Ideal For

The Voltan 12V-120AH UPS Battery is ideal for users who need a high-capacity battery for a compatible UPS backup system. It is particularly suitable for businesses, offices, IT environments, and other installations where dependable battery storage is important during power interruptions.

It can be considered by organizations running computers, networking infrastructure, communication equipment, or other critical electronics through a compatible UPS system. Its 120Ah capacity makes it a substantially larger battery than compact UPS batteries, making it relevant to systems designed for higher battery capacity.

For Bangladeshi businesses, offices, and institutions, the battery can be useful when the existing UPS system specifically requires a 12V 120Ah battery or a compatible specification.

It is also suitable for professional UPS installers and system integrators who need a battery with clearly published electrical and physical specifications.

However, the ideal user is not simply someone looking for a large-capacity battery. The battery must match the UPS's required voltage, charging characteristics, terminal configuration, dimensions, and battery-bank arrangement.

✅ Why Choose the Voltan 12V-120AH UPS Battery?

The Voltan 12V-120AH UPS Battery is an attractive option for compatible UPS systems because it combines high capacity with a detailed manufacturer-published specification profile.

Its 120Ah capacity at the specified 10-hour discharge rate provides a substantial energy-storage platform. More importantly, the manufacturer provides additional discharge-rate figures, allowing professional users to understand how the rated capacity changes under different load conditions.

The approximately 4mΩ internal resistance specification, copper terminals, and defined charging parameters provide additional information for system designers and installers. Instead of relying on vague performance claims, customers can compare these specifications against their existing UPS requirements.

Another advantage is the published 5-year-plus designed floating life at 25°C. Although actual service life depends on operating conditions, this specification makes the battery relevant to UPS systems intended for long-term standby operation.

The battery also provides clearly defined temperature ranges and charging characteristics. This is especially useful in Bangladesh, where installation environments can experience relatively high temperatures.

Ultimately, the strongest reason to choose this model is specification-based compatibility. If your UPS system requires a 12V 120Ah battery and supports the Voltan battery's charging, terminal, and physical requirements, this model offers a substantial backup-energy solution from a product line specifically marketed for UPS applications.

✅ Why Buy This Product

When power continuity matters, the battery inside a UPS is just as important as the UPS itself. The Voltan 12V-120AH UPS Battery offers a high-capacity 120Ah rating, defined charging specifications, copper terminals, and a manufacturer-stated 5-year-plus designed floating life under specified conditions.

Its capacity makes it relevant for compatible backup systems where smaller batteries may not provide sufficient energy storage. At the same time, the detailed specifications make it easier for professional installers to evaluate compatibility before installation.

For customers in Bangladesh looking for a Voltan 12V 120Ah UPS battery, this model provides a practical option for appropriately configured UPS systems.

If your existing UPS requires a 12V 120Ah battery and the dimensions and terminals are compatible, the Voltan 12V-120AH deserves consideration.

Choose the Voltan 12V-120AH UPS Battery for your compatible backup-power system and build a more capable energy-storage solution for your UPS installation.
