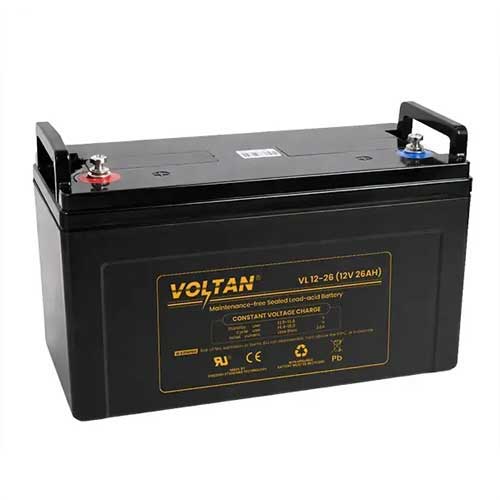

Voltan 12V-26AH UPS Battery

Voltan 12V-26AH UPS Battery in Bangladesh

The Voltan 12V-26AH UPS Battery is engineered as a heavy-duty, high-capacity energy cell built to deliver extended runtime and robust voltage stability during severe power disruptions. Going beyond standard desktop-class backup batteries, this 26-Ampere-Hour power reservoir supplies the substantial energy required to run high-load servers, multi-terminal IT centers, multi-channel security arrays, and sensitive medical instruments smoothly across Bangladesh.

Whether you are supporting a commercial data hub, maintaining continuous 24/7 CCTV security recording, or ensuring uninterrupted power for medical and networking hardware, Voltan delivers rock-solid, reliable energy. Built with advanced sealed lead-acid technology, it functions as a high-performance replacement battery or external battery bank component that elevates the standby duration and overall dependability of high-capacity offline and online UPS systems.

Advanced VRLA & AGM Technology: Leak-Proof and Maintenance-Free

At the core of the Voltan 12V-26AH battery lies state-of-the-art Valve-Regulated Lead-Acid (VRLA) architecture paired with Absorbent Glass Mat (AGM) internal construction. The liquid electrolyte is completely immobilized inside fine, high-porosity micro-glass fiber mat separators positioned between lead plates.

This sealed engineering yields key operational advantages:

• 100% Maintenance-Free: Internal gas recombination technology recombines over 99% of generated gases, removing liquid loss and eliminating the need for periodic distilled water top-ups.

• Leak-Proof Safety: The non-spillable AGM design eliminates acid leaks, allowing safe installation in various orientations inside server enclosures or external battery cabinets.

• Integrated Pressure Protection: Built-in low-pressure safety release valves automatically vent excess gas during accidental overcharge states and reseal immediately to preserve structural integrity.

Ultra-Low Internal Resistance & Heavy Surge Discharge Performance

Electrical delivery efficiency is governed by internal resistance. The Voltan 12V-26AH battery features an exceptionally low internal resistance of approximately 12mΩ when fully charged at 25°C. This low internal resistance limits thermal energy buildup during operation, prevents internal overheating, and optimizes current output under heavy load demands.

With a nominal 26AH capacity (at the 20-hour rate to 10.5V), this model delivers up to 3.5 times the backup runtime of standard 7.5AH batteries under identical workloads. When heavy equipment powers on or experiences sudden current spikes, the battery delivers a massive 390 Amperes of maximum discharge current for 5 seconds. This high-rate discharge capability prevents low-voltage cutoffs by the UPS and handles initial inrush currents smoothly.

Thermal Resilience, Low Self-Discharge, and Fast Recharge

In Bangladesh, high ambient summer temperatures inside non-air-conditioned server spaces can strain power storage cells. The Voltan 12V-26AH battery is built to perform in challenging environmental conditions, featuring a wide operating temperature range:

• Discharge Range: -15°C to 50°C

• Charge Range: -10°C to 50°C

• Storage Range: -20°C to 50°C

Its lead-calcium-tin alloy grid composition suppresses self-discharge rates during idle standby periods. When stored at 25°C, the battery retains approximately 91% capacity after 3 months, 82% after 6 months, and 65% after 12 months. Supporting a maximum charging current of 7.8A, the battery accepts rapid energy recovery between frequent load-shedding cycles.

Multi-Industry Application Versatility

While deployed extensively in high-capacity UPS setups, the Voltan 12V-26AH battery serves as a versatile DC power source across various commercial and industrial fields:

• High-Capacity UPS Systems: Ideal for 2KVA, 3KVA, and 6KVA online and offline UPS units requiring high-reserve battery banks.

• Commercial CCTV & Access Control: Powers 32-channel DVR/NVR arrays, biometric locks, and security monitoring setups continuously.

• Telecommunications & Data Networks: Keeps core fiber network switches, server racks, and cellular base hardware active during extended outages.

• Medical Equipment & Solar Backup: Delivers stable DC backup for portable medical monitors, emergency lighting, and solar power storage.

Heavy-Duty ABS Shell & Conductive Copper Terminals

Protected by a high-impact, flame-retardant ABS resin casing, the battery resists mechanical shocks, physical impacts, and thermal expansion. High-grade T3/T8 copper terminals provide maximum electrical conductivity and low contact resistance, preventing terminal heating during continuous high-amperage output.

Physical Specifications:

• Length: 180mm (±2mm)

• Width: 168mm (±2mm)

• Height / Total Height: 130mm (±2mm)

• Approximate Weight: ~7.30 kg (16.1 lbs) ±4%

Real-Life Usage Scenarios in Bangladesh

1. Commercial Server Rooms & IT Workstations

Corporate offices running active local servers, network-attached storage (NAS), and multi-terminal workstations cannot afford sudden power drops that cause system file corruption. Installing a bank of Voltan 12V-26AH batteries provides the extended runtime needed to keep servers operational through short load-shedding cycles or perform controlled network shutdowns.

2. Non-Stop Commercial CCTV & Bank Security

For retail outlets, banking halls, and shopping malls across Dhaka and Chittagong, losing security recording power creates immediate vulnerabilities. Installed in a central backup power system, the Voltan 12V-26AH battery delivers steady DC current to keep recording feeds active continuously.

3. Enterprise Fiber Networking & Remote Work

Telecommunication providers and remote corporate teams depend on uninterrupted fiber internet during data transfers and client calls. Connected to high-capacity DC power systems, this 26Ah battery keeps switches, routers, and optical equipment running through prolonged utility outages.

✅ Key Features

• 12V 26AH Industrial Energy Reserve: Delivers extended power backup for server racks, high-draw PCs, and multi-device setups.

• Maintenance-Free VRLA AGM Build: Fully sealed, non-spillable design requires zero water refilling or fluid maintenance.

• Ultra-Low Internal Resistance (~12mΩ): Maximizes electrical transfer efficiency while minimizing heat buildup under heavy loads.

• 390A High Surge Discharge Rating: Delivers 390A maximum discharge current for 5 seconds to handle equipment startup surges.

• 7.8A Fast Recharge Acceptance: Recharges quickly to full capacity between frequent load-shedding cycles.

• Low Self-Discharge Rate: Retains 91% capacity after 3 months and 82% after 6 months of standby storage at 25°C.

• High-Conductivity Copper Terminals: T3/T8 copper connectors reduce electrical contact resistance and prevent terminal overheating.

• Broad Thermal Range: Performs reliably across severe temperature conditions from -15°C up to 50°C during discharge.

• Flame-Retardant ABS Casing: Tough outer shell shields interior grid components against physical shock and vibration.

• Long Designed Float Life: Engineered for 5+ years of floating standby service under standard conditions.

✅ Ideal For

The Voltan 12V-26AH UPS Battery is the perfect energy choice for IT administrators, network engineers, software development agencies, and corporate offices requiring extended power backup for servers and workstation pools. It is equally essential for commercial business owners protecting 32-channel CCTV security setups, medical facility operators maintaining diagnostic standby power, and telecom teams keeping fiber switches live across Bangladesh.

✅ Why Choose the Voltan 12V-26AH UPS Battery?

Unmatched Performance

Standard lower-capacity batteries suffer rapid voltage sags under heavy hardware loads, leading to premature low-voltage UPS cutoffs. The Voltan 12V-26AH battery delivers a flat, stable discharge voltage curve. Its 26Ah capacity reserve and ultra-low 12mΩ internal resistance keep your equipment running significantly longer during grid blackouts.

Innovative Technology

Featuring advanced Absorbent Glass Mat (AGM) separators, the liquid electrolyte is immobilized within fine glass fiber mats. Combined with corrosion-resistant lead-calcium-tin alloy grids and pressure relief valves, this battery ensures consistent power density, leak safety, and long operational lifespan.

Future-Proof Investment

Sudden power loss caused by depleted batteries can lead to hard drive failure and system file corruption. Upgrading to a high-reserve 26Ah battery protects your hardware components and safeguards vital work files for years to come.

Premium Brand Value

Voltan products undergo strict quality checks for capacity accuracy, terminal conductivity, and casing durability. Choosing Voltan guarantees an authentic, factory-tested power cell engineered for demanding local environments.

✅ Why Buy This Product

Do not let unpredictable power cuts interrupt your critical work or risk damaging high-end electronics. Upgrading your power system with the Voltan 12V-26AH UPS Battery is a reliable way to gain extended, dependable backup runtime during load-shedding hours.

With its spill-proof VRLA AGM build, 390A surge tolerance, fast 7.8A recharge acceptance, and robust thermal endurance, this battery offers long-term value. Order the Voltan 12V-26AH UPS Battery today to secure your energy supply and keep your critical electronics powered without interruption!
