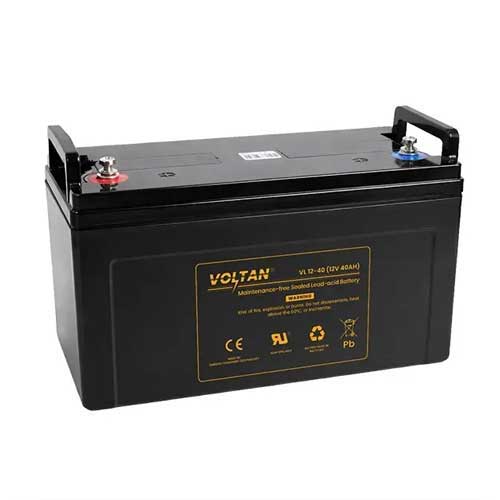

Voltan 12V-40AH UPS Battery

Voltan 12V-40AH UPS Battery in Bangladesh

The Voltan 12V-40AH UPS Battery is an industrial-grade, high-capacity sealed lead-acid battery engineered to provide extended energy backup during prolonged electrical outages. Designed to far exceed standard desktop-class backup cells, this heavy-duty 40-Ampere-Hour unit offers the substantial power storage needed to run online server banks, multi-station IT environments, medical monitoring equipment, and extensive CCTV security setups smoothly across Bangladesh.

Whether you are protecting enterprise server racks, sustaining continuous power for telecommunication hubs, or establishing a reliable high-capacity battery bank for a 3KVA to 10KVA UPS system, Voltan delivers rock-solid electrical output. Manufactured with precision engineering, it acts as a premium direct-replacement or expansion energy cell that elevates operational uptime and protects sensitive hardware from hard shutdowns.

Advanced VRLA & AGM Architecture: Spill-Proof and Maintenance-Free

The foundation of the Voltan 12V-40AH battery relies on Valve-Regulated Lead-Acid (VRLA) technology coupled with fine Absorbent Glass Mat (AGM) internal separators. The liquid electrolyte is fully absorbed within high-porosity glass fiber micro-mats positioned between robust lead plates.

This sealed engineering delivers key operational advantages:

• 100% Maintenance-Free: Internal gas recombination technology recombines over 99% of generated gases, removing liquid loss and completely eliminating the need for periodic distilled water top-ups.

• Leak-Proof Safety: The non-spillable AGM construction prevents acid leaks, allowing safe installation in various orientations inside server racks or specialized battery cabinets.

• Automatic Pressure Regulation: Integrated low-pressure safety release valves vent excess gas during unexpected overcharging and reseal automatically to preserve internal structural safety.

Low Internal Resistance & High-Current Surge Discharge Capability

Electrical current transfer efficiency is dictated by internal resistance. The Voltan 12V-40AH battery features an exceptionally low internal resistance of approximately 8.5mΩ when fully charged at 25°C. This ultra-low resistance minimizes internal thermal heat buildup under heavy current draw, maximizing output efficiency and extending usable battery runtime.

With a nominal capacity of 40Ah (at the 10-hour discharge rate to 10.8V), this cell delivers substantial runtime for high-wattage equipment. When heavy machinery or high-draw server hardware initializes, the battery handles high surge demands smoothly, delivering a massive 400 Amperes of maximum discharge current for 5 seconds without triggering low-voltage UPS alarms.

Thermal Endurance, Low Self-Discharge, and Fast Recharge

In Bangladesh, high ambient summer temperatures inside non-air-conditioned utility rooms can accelerate battery wear. The Voltan 12V-40AH battery is built to perform in challenging environmental conditions across a broad operational range:

• Discharge Temperature: -15°C to 50°C

• Charge Temperature: -10°C to 50°C

• Storage Temperature: -20°C to 50°C

Its lead-calcium tin alloy grid composition suppresses self-discharge rates during idle standby periods. Stored at 25°C, the battery retains 91% capacity after 3 months, 82% after 6 months, and 65% after 12 months. Supporting a maximum charging current of 12A, it accepts rapid energy recovery between frequent load-shedding cycles.

Multi-Industry Application Versatility

While deployed extensively in high-capacity UPS setups, the Voltan 12V-40AH battery serves as a versatile DC power source across various commercial and industrial fields:

• High-Capacity UPS Systems: Ideal for 3KVA, 6KVA, and 10KVA online and offline UPS units requiring high-reserve battery banks.

• Commercial CCTV & Access Control: Powers 32-channel and 64-channel DVR/NVR setups, biometrics, and security monitoring centers continuously.

• Telecommunications & Data Networks: Keeps core fiber switches, base transceiver stations, and server racks active during extended grid outages.

• Medical Equipment & Solar Storage: Delivers stable DC backup for diagnostic equipment, emergency lighting, and solar power storage arrays.

Heavy-Duty Shell & Conductive Copper Terminals

Protected by a high-impact, flame-retardant ABS resin casing, the battery resists mechanical shocks, physical impacts, and thermal expansion. High-purity T4/T9 copper terminals provide maximum electrical conductivity and low contact resistance, preventing terminal heating during continuous high-amperage output.

Physical Specifications:

• Length: 200mm (±2mm) / 7.87 inches

• Width: 168mm (±2mm) / 6.61 inches

• Height / Total Height: 180mm (±2mm) / 7.07 inches

• Approximate Weight: ~12.3 kg (27.11 lbs) ±4%

Real-Life Usage Scenarios in Bangladesh

1. Enterprise Server Rooms & Data Hubs

Corporate offices running central database servers, local clouds, and network-attached storage (NAS) cannot afford sudden power cuts that cause file corruption. Installing a series bank of Voltan 12V-40AH batteries provides the extended runtime needed to keep servers operational through long load-shedding windows or perform safe, automated network shutdowns.

2. Commercial CCTV & Financial Institution Security

For banking halls, retail centers, and industrial warehouses across Dhaka and Chittagong, losing security recording power creates immediate vulnerabilities. Installed in a central backup system, the Voltan 12V-40AH battery delivers steady DC current to keep recording feeds active continuously.

3. Fiber Internet Providers & Core Networking

Telecommunication providers and IT support teams depend on uninterrupted power to maintain core fiber switches during power grid failures. Connected to high-capacity DC power systems, this 40Ah battery keeps optical equipment and routers running smoothly through extended utility blackouts.

✅ Key Features

• 12V 40AH Heavy Industrial Capacity: Delivers prolonged energy backup for enterprise server racks, high-draw equipment, and multi-device setups.

• Maintenance-Free VRLA AGM Build: Fully sealed, non-spillable design requires zero water refilling or fluid maintenance.

• Ultra-Low Internal Resistance (~8.5mΩ): Maximizes electrical transfer efficiency while minimizing internal heat buildup under load.

• 400A High Surge Discharge Rating: Delivers a massive 400A maximum discharge current for 5 seconds to handle equipment startup surges.

• 12A Rapid Charge Acceptance: Recharges quickly to full capacity between frequent load-shedding cycles.

• Low Self-Discharge Rate: Retains 91% capacity after 3 months and 82% after 6 months of standby storage at 25°C.

• High-Conductivity Copper Terminals: T4/T9 copper connectors reduce electrical contact resistance and prevent terminal overheating.

• Broad Thermal Adaptability: Performs reliably across severe temperature conditions from -15°C up to 50°C during discharge.

• Flame-Retardant ABS Casing: Tough outer shell shields interior grid components against physical shock and structural deformation.

• 5+ Years Floating Design Life: Engineered for long-term standby service under standard operating conditions.

✅ Ideal For

The Voltan 12V-40AH UPS Battery is the perfect energy choice for IT administrators, network engineers, data center operators, and corporate offices requiring extended power backup for server pools and high-power workstations. It is equally essential for commercial business owners protecting multi-channel CCTV security setups, medical facility operators maintaining diagnostic standby power, and telecom teams keeping fiber switches live across Bangladesh.

✅ Why Choose the Voltan 12V-40AH UPS Battery?

Unmatched Performance

Standard lower-capacity batteries suffer rapid voltage sags under heavy hardware loads, leading to premature low-voltage UPS cutoffs. The Voltan 12V-40AH battery delivers a flat, stable discharge voltage curve. Its 40Ah capacity reserve and ultra-low 8.5mΩ internal resistance keep your equipment running significantly longer during grid blackouts.

Innovative Technology

Featuring advanced Absorbent Glass Mat (AGM) separators, the liquid electrolyte is immobilized within fine glass fiber mats. Combined with corrosion-resistant lead-calcium tin alloy grids and pressure relief valves, this battery ensures consistent power density, leak safety, and a long operational lifespan.

Future-Proof Investment

Sudden power loss caused by depleted batteries can lead to hard drive failure, data corruption, and hardware damage. Upgrading to a high-reserve 40Ah battery protects your hardware components and safeguards vital operational data for years to come.

Premium Brand Value

Voltan products undergo strict quality checks for capacity accuracy, terminal conductivity, and casing durability. Choosing Voltan guarantees an authentic, factory-tested power cell engineered for demanding local environments.

✅ Why Buy This Product

Do not let unpredictable power cuts interrupt your critical work or risk damaging high-end electronics. Upgrading your power system with the Voltan 12V-40AH UPS Battery is a reliable way to gain extended, dependable backup runtime during load-shedding hours.

With its spill-proof VRLA AGM build, 400A surge tolerance, fast 12A recharge acceptance, and robust thermal endurance, this battery offers long-term value. Order the Voltan 12V-40AH UPS Battery today to secure your energy supply and keep your critical electronics powered without interruption!
