Brand | GMAC |
Model | HAMBURG-HH1110KL |
Phase | Single Phase (1:1) |
Capacity | 10KVA/9000W |
Nominal Voltage | 200/208/220/230/240VAC |
Input Voltage Range | 110-280 VAC (Based on Load At 50%) |
Frequency Range | 46Hz-54Hz / 56Hz-64Hz |
Phase | Single Phase with Ground |
Power Factor | R0.99 @ Nominal Voltage (100% Load) |
Output Voltage | 200/208/220/230/240VAC |
Voltage Regulation | ±1% |
Frequency Range (Synchronized Range) | 46 ~ 54 Hz Or 56 ~ 64 Hz |
Frequency Range (Batt. Mode) | 50 Hz Or 60 Hz ±0.1% |
Line Mode To Battery Mode | Zero |
Inverter To Bypass | 2~4 Ms (Typical) |
Waveform (Batt. Mode) | Pure Sine Wave |
Warranty | One-year warranty. |

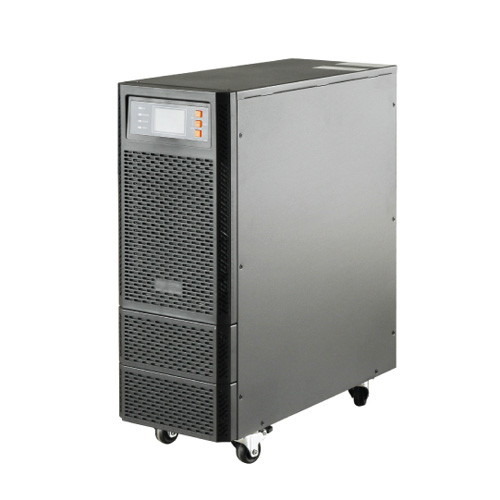

Buy GMAC 10KVA HAMBURG-HH1110KL Long Backup Online UPS Price in Bangladesh.
The GMAC 10KVA HAMBURG-HH1110KL Long Backup Transformerless Online UPS is a high-performance uninterruptible power supply (UPS) that provides reliable backup power for critical loads. It features a transformerless design that is more efficient and reliable than traditional UPS systems. The HAMBURG-HH1110KL also features a long backup time, making it ideal for applications where extended power outages are possible.
Here are some of the key features of the GMAC 10KVA HAMBURG-HH1110KL Long Backup Transformerless Online UPS:
True sine wave output: Provides the highest quality power to protect sensitive electronic equipment.
Wide input voltage range: Accepts a wide range of input voltages, from 160 to 280 VAC, without the need for batteries.
Advanced PFC technology: Corrects the power factor to improve efficiency and reduce energy costs.
Self-diagnosis at startup: Automatically tests all critical components to ensure reliable operation.
Advanced battery management (ABM): Extends battery life and performance.
Cold start feature (DC power on): Allows the UPS to start up even when there is no AC power available.
Automatically charging batteries in UPS off mode: Keeps the batteries charged even when the UPS is turned off.
Lightning and surge protections: Protects connected equipment from damaging surges and spikes.
Short circuit and overload protections: Protects the UPS and connected equipment from damage.
Fan speed automatically changes as load varies: Reduces noise and extends fan life.
Optional external battery pack: Provides additional backup time for critical applications.
EMI/RFI noise filter: Protects connected equipment from electromagnetic interference and radio frequency interference.
RS232 interface: Allows the UPS to be monitored and managed remotely.
Shutdown & restart schedule: Allows the UPS to be automatically shut down and restarted at scheduled times.
The GMAC 10KVA Long Backup Online UPS is a high-performance uninterruptible power supply (UPS) that provides reliable, conditioned power to critical equipment during power outages and other disturbances. It features a high-frequency, double-conversion design that provides continuous, pure sine wave output, even during the most severe power conditions.
Here are some of the benefits of using the GMAC 10KVA HAMBURG-HH1110KL Long Backup Transformerless Online UPS:
Protects critical loads from power outages
Provides reliable backup power for extended periods of time
Improves efficiency and reliability
Protects sensitive equipment from voltage spikes and sags
Guards against damaging surges
Easy to use and manage
Overall, the GMAC 10KVA HAMBURG-HH1110KL Long Backup Transformerless Online UPS is a high-performance UPS that provides reliable backup power for critical loads. It is a good choice for a variety of applications, and it offers a number of benefits, including improved efficiency and reliability, protection from voltage spikes and sags, and surge protection.*
The GMAC 10KVA HAMBURG-HH1110KL Long Backup Transformerless Online UPS is a good choice for a variety of applications, including:
Data centers and server rooms: Provides reliable power protection for critical IT equipment.
Network closets: Protects network equipment from power outages and disturbances.
Telecommunications equipment: Provides clean, conditioned power for sensitive telecom equipment.
Medical equipment: Protects life-saving medical equipment from power failures.
Security systems: Ensures that security systems continue to operate during power outages.
Industrial applications: Provides reliable power protection for critical industrial equipment.
Any other critical application where extended power outages are possible.
The GMAC 10KVA Long Backup Online UPS is a reliable and affordable solution for protecting critical equipment from power outages and other disturbances. It is backed by a one-year warranty and is available from BME.
