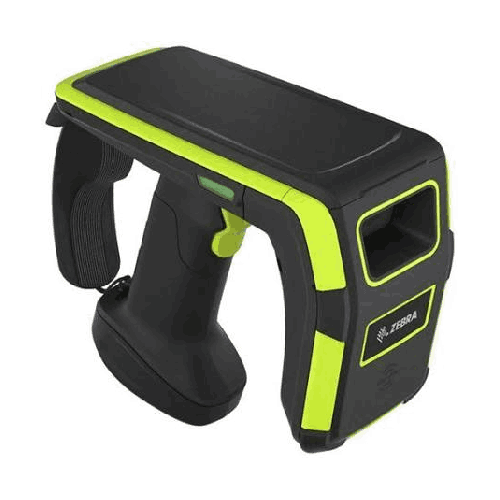

Zebra RFD90 Ultra-Rugged UHF RFID Sleds

Zebra RFD90 Ultra-Rugged UHF RFID Sleds Price in Bangladesh

The Zebra RFD90 Ultra-Rugged UHF RFID Sleds (including RFD9030 and RFD9090) are built for high-speed, long-range RFID capture in demanding Bangladesh environments such as large warehouses, container yards, industrial distribution hubs, manufacturing plants, and field operations where equipment gets dropped, exposed to dust/water, and used continuously across shifts. Compared to basic RFID add-ons, the RFD90 series is positioned as an “ultra-rugged” platform with strong sealing ratings, advanced RFID performance, flexible host connectivity, and optional integrated imagers for barcode scanning.

If your operation needs faster inventory visibility, rapid cycle counting, or long-range RFID reads with a device that can survive harsh handling, the RFD90 family is designed for that role. It supports widely used UHF RFID standards and delivers a confirmed fastest read rate of 1,300+ tags per second, while offering two range profiles: the RFD9030 (~6.7 m nominal) and the RFD9090 (~22.9 m nominal).

RFID becomes a serious productivity tool when it can be used everywhere—warehouse aisles, loading bays, outdoor yards, production areas, and even field sites—without worrying about device failure. In Bangladesh, many businesses want RFID benefits (fast inventory, reduced manual scans, better visibility), but their environments are hard on devices: dust, humidity, accidental drops, heavy usage, and long operating hours. The Zebra RFD90 Ultra-Rugged UHF RFID Sleds are designed specifically for those conditions.

Unlike a fixed RFID reader (installed infrastructure), an RFID sled is a mobile tool—used by inventory teams, supervisors, and logistics operators. A sled attaches to or connects with a host device (Zebra mobile computer, tablet, or even some 3rd-party smartphones/tablets), providing RFID reading capability and—depending on configuration—barcode scanning through an imager module. This supports flexible deployment: you can move the reader to where the work is, rather than forcing the work to pass through a fixed read portal.

The RFD90 series includes two models with different range expectations:

• RFD9030 nominal read range: ~22 ft / ~6.7 m
• RFD9090 nominal read range: ~75 ft / ~22.9 m

That range difference is crucial for Bangladesh use cases. The RFD9030 is often suitable for store backrooms, standard warehouses, and typical inventory counting. The RFD9090 is designed for much longer-range reads, which can be valuable for large warehouses, bulk storage yards, or situations where you want to identify tagged items from farther away.

RFID standards and performance that align with enterprise deployments

The RFD90 series supports:

• EPC Class 1 Gen 2
• EPC Gen2 V2

These are widely used UHF RFID standards in enterprise and supply chain environments. Zebra specifies the RFID engine as Zebra Proprietary Radio Technology, and performance includes a confirmed fastest read rate of 1,300+ tags/sec. For Bangladesh operations, this kind of read rate can dramatically reduce the time required for cycle counting, shelf audits, and bulk item verification—especially when many tags are present within the read zone.

Frequency ranges and RF output (region-specific)

You provided detailed frequency and RF output information for both models:

RFD9030

• US: 902–928 MHz; 0–30 dBm (EIRP)
• EU: 865–868 MHz; 0–30 dBm (EIRP)
• 916.3, 917.5, 918.7 MHz; 0–30 dBm (EIRP)
• Japan: 916–921 MHz (w LBT); 0–30 dBm (EIRP)

RFD9090

• US: 902–928 MHz; 5.5–35.5 dBm (EIRP)
• EU: 865–868 MHz; 5.5–35.5 dBm (EIRP)
• 916.3, 917.5, 918.7 MHz; 5.5–35.5 dBm (EIRP)
• Japan: 916–921 MHz (w LBT); 5.5–35.5 dBm (EIRP)

For Bangladesh buyers, region configuration matters because local regulatory allowances and deployment requirements must align with the reader’s configured band and power settings. In real projects, this is typically handled through proper region configuration and compliance planning.

Wireless LAN (Wi‑Fi 6) and remote management readiness

A standout capability in your provided specifications is the included Wireless LAN radio:

• Radio: IEEE 802.11 ax/ac/a/b/g/n 2×2, MU‑MIMO, IPv4
• Data rate: 5 GHz PHY up to 1.2 Gbps; 2.4 GHz PHY up to 458 Mbps
• Operating channels: Channel sets listed (1–14 and 36–196 with bandwidth 20/40/80 MHz)
• Security & encryption: TKIP, AES, EAP‑TLS, EAP‑PEAPv2, EAP‑TTLS, EAP‑FAST, PEAP, LEAP

Why this matters in Bangladesh: large warehouses and multi-site operations often require device oversight—battery health, device status, and standardization. The RFD90 includes remote management options including Wi‑Fi 6, Ethernet cradles, and via attached host device. This improves manageability when deploying multiple sleds across teams.

Host connectivity: eConnex, Bluetooth 5.3, and more

The RFD90 series offers flexible host connection methods:

• Host connection: Electronic 8‑pin connection (eConnex™)
• Bluetooth: Bluetooth 5.3
• USB: USB Cable Cup
• Host computer support: Zebra mobile computers and tablets; 3rd-party smartphones and tablets; Windows-based PCs
• Mobile computer adaptors: eConnex, Bluetooth, OtterBox uniVERSE Case System
• Bluetooth profiles supported: SPP, HID, Apple iAP2/MFi

This flexibility is valuable for Bangladesh organizations because device fleets are not always uniform. Some teams use Zebra devices, some use tablets, and some workflows require a Windows PC. The RFD90’s connectivity options support different deployment styles.

Optional barcode imagers: SE4750MR or SE4850

The RFD90 series can be configured with different imager options (for barcode capture alongside RFID):

SE4750MR Standard Range Imager

• Sensor: 1280 × 960 pixels
• FOV: 31° H, 23° V
• Skew/pitch tolerance: ±60°, roll 360°
• Focal distance: 14.2 in / 36.1 cm
• Aiming LED: 655 nm laser
• Illumination: 2× warm white LEDs

SE4850 Extended Range Imager

• Sensor: 1280 × 800 pixels
• FOV: Far 12° H, 7.6° V; Near 32° H, 20° V
• Skew/pitch tolerance: ±60°, roll 360°
• Focal distance: Far 15–350 in (38.1–889 cm); Near 11 in (27.8 cm)
• Aiming: 655 nm laser
• Illumination: Hyper red 660 nm LED
• Minimum print contrast: 25%

For Bangladesh workflows, this matters because many RFID projects still require barcode scanning for exceptions, serial verification, or mixed inventory where not all items are tagged. A combined RFID + barcode sled can reduce device switching and improve operational continuity.

Battery and shift endurance

The RFD90 sleds use:

• Quick-Release PowerPrecision+ Li‑Ion 7,000 mAh battery

This aligns with long-shift usage in Bangladesh warehouses and distribution environments. Quick-release batteries support hot-swap style workflows when you need to keep teams running across extended counting or dispatch windows.

User feedback and controls (work-ready)

You provided notification and user input features:

• Bluetooth status LED, Wi‑Fi status LED, decode LEDs, battery status LED
• Beeper
• Tri‑Function user programmable trigger

For field use, these feedback mechanisms are practical—operators can confirm reads and status without constantly looking at the host screen.

Ultra-rugged environmental protection (IP65/IP67, drops, tumble)

The RFD90 series is designed for harsh environments with confirmed ruggedness:

• Drop spec: Multiple 6 ft / 1.8 m drops to concrete
• Tumble spec: 500 cycles (1,000 drops) at 0.5 m
• Operating temp: -20°C to 55°C
• Storage temp: -40°C to 70°C
• Humidity: 5–85% non-condensing
• ESD: ±15 kV air, ±8 kV direct, ±8 kVdc indirect
• Sealing: IP65 (spray) and IP67 (submersion)

For Bangladesh, IP65/IP67 sealing is especially relevant during monsoon season and in dusty industrial areas. If devices will be used near loading docks, open warehouse gates, or outdoor yard operations, this ruggedness level helps protect your investment.

Physical dimensions and weight (confirmed)

• RFD9030 dimensions: 189 × 83.4 × 173 mm
• RFD9090 dimensions: 248 × 96.3 × 173 mm

Weights depend on imager configuration:

• RFD9030 with SE4750MR: 714 g; with SE4850: 751 g
• RFD9090 with SE4750MR: 759 g; with SE4850: 799 g

This helps in planning for operator comfort and selecting holsters/belts for long tasks.

Accessories and charging ecosystem

You listed multiple accessories including:

• charging cradles (1-slot, multi-slot, Ethernet cradle)
• cable cup and USB wall brick for cable cup
• 4-slot battery toaster
• belt holster, battery locking foot
• eConnex adaptors

For Bangladesh organizations deploying multiple units, a proper charging strategy is essential. Multi-slot cradles help centralize device readiness at shift changes.

Use cases in Bangladesh

The RFD90 series is especially relevant for:

• Retail inventory (rapid stock counts, back-room verification)
• Warehouse operations (cycle counting, location audits)
• Logistics (staging verification, dispatch accuracy)
• Asset tracking (equipment visibility in industrial sites)

The choice between RFD9030 and RFD9090 often comes down to read range and site scale: standard warehouse vs very large zones/outdoor yards.

✅ Key Features

• Ultra-rugged UHF RFID sled family: RFD9030 and RFD9090 options for different range needs.
• Fastest read rate 1,300+ tags/sec: High-speed inventory and verification performance.
• Long read range options: RFD9030 ~6.7 m; RFD9090 ~22.9 m nominal.
• Supports EPC Class 1 Gen2 and EPC Gen2 V2: Enterprise UHF RFID standards.
• Zebra proprietary radio technology: RFID engine designed for performance and reliability.
• Wi‑Fi 6 capable WLAN (802.11ax 2×2 MU‑MIMO): Supports high-speed connectivity and remote management workflows.
• Bluetooth 5.3 host connectivity: Flexible pairing for supported devices and platforms.
• Quick-release 7,000 mAh PowerPrecision+ battery: Built for long shift operation.
• IP65/IP67 sealing: Designed to withstand spray and submersion conditions.
• 6 ft drop + tumble rated: Built for harsh handling in industrial operations.
• Optional integrated imagers: SE4750MR standard range or SE4850 extended range barcode capture options.

✅ Usage / Applications

• Retail stock counts and store inventory audits
• Warehouse cycle counting and location verification
• Logistics staging, dispatch verification, and exception handling
• Yard management and large-area tagged item identification (model dependent)
• Asset tracking for tools, equipment, and returnable containers
• Mixed workflows requiring RFID plus barcode scanning (imager dependent)
• Multi-site deployments needing remote management and standardized charging
• High-volume operations where ruggedness reduces downtime from damage

✅ Benefits of This Product?

• Speeds up inventory counts with 1,300+ tags/sec read performance
• Improves visibility and reduces manual scanning effort
• Enables long-range reads (especially with RFD9090) for large sites and yard workflows
• Reduces device failure risk thanks to ultra-rugged drop/tumble and IP65/IP67 sealing
• Supports long shifts with a 7,000 mAh quick-release battery system
• Flexible connectivity for different device fleets (eConnex, Bluetooth, Windows PC support)
• Supports secure WLAN deployments with enterprise authentication methods
• Option to include barcode imaging for mixed inventory and exception scanning
• Scales better for large teams through multi-slot charging and battery accessories

✅ Ideal For

• Large warehouses and distribution centers in Bangladesh running frequent cycle counts
• Logistics and yard operations needing longer-range RFID identification
• Retail chains standardizing high-speed RFID inventory workflows
• Industrial manufacturing sites tracking WIP, containers, and assets
• Teams needing ultra-rugged devices due to heavy handling and harsh environments
• Organizations using mixed devices (Zebra mobiles, tablets, Windows PCs) that need flexible connectivity

✅ Why Choose the Zebra RFD90 Ultra-Rugged UHF RFID Sleds?

Choose the Zebra RFD90 Ultra-Rugged UHF RFID Sleds when your RFID program needs more than basic performance—when you need speed, range, ruggedness, and flexible connectivity in one platform. With 1,300+ tags/sec performance, model choices for ~6.7 m or ~22.9 m nominal range, and protection ratings including IP65/IP67 plus 6 ft drop resistance, the RFD90 series fits Bangladesh operations where devices are used hard. Added capabilities like Wi‑Fi 6, Bluetooth 5.3, and optional SE4750MR/SE4850 imagers make it easier to integrate RFID into real mixed workflows.

✅ Why Buy This Product from BME?

• Bangladesh RFID deployment guidance: We help select RFD9030 vs RFD9090 based on range, environment, and workflow.
• Quotation support: Formal quotations for corporate, industrial, retail, and logistics procurement.
• Accessory and rollout planning: Assistance with charging cradles, batteries, and adapter planning for multi-unit deployments.
• Compatibility planning: Help matching sled connectivity (eConnex/Bluetooth/OtterBox) to your device fleet.
• Project-oriented support: Guidance on RFID adoption steps—tags, software integration, and operational SOPs.

✅ Buying Guide

• Choose the right model by range: RFD9030 for standard operations; RFD9090 for long-range identification needs.
• Decide if you need barcode imaging: Select SE4750MR for standard range barcode work, SE4850 for extended range scanning.
• Plan host device strategy: Use eConnex for direct connection to Zebra mobiles; consider Bluetooth for broader device compatibility.
• Confirm frequency region configuration: Ensure the device is configured for the correct band and regulatory region.
• Plan charging and spares: Multi-slot cradles and spare batteries help avoid downtime during shift changes.
• Design RFID workflows: Define how you’ll prevent unintended reads and ensure accurate counting in dense tag environments.
• Use secure Wi‑Fi policies: If you manage devices via WLAN, align with enterprise authentication and encryption requirements.
• Train operators on read techniques: Range is powerful; define distance and zone discipline to keep data clean.

✅ Customers Ask About / Frequently Asked Questions

• Q1: What is the difference between RFD9030 and RFD9090?
  A: Nominal read range: RFD9030 ~6.7 m, RFD9090 ~22.9 m (confirmed), with different RF output ranges.

• Q2: How fast can the RFD90 series read tags?
  A: The fastest read rate is 1,300+ tags per second (confirmed).

• Q3: What RFID standards are supported?
  A: EPC Class 1 Gen2 and EPC Gen2 V2 (confirmed).

• Q4: What battery does it use?
  A: Quick-release PowerPrecision+ Li‑Ion 7,000 mAh battery (confirmed).

• Q5: How rugged is it for industrial use?
  A: It supports multiple 6 ft (1.8 m) drops, tumble testing, and sealing IP65/IP67 (confirmed).

• Q6: Does it support Wi‑Fi?
  A: Yes, it includes WLAN radio IEEE 802.11 ax/ac/a/b/g/n 2×2 MU‑MIMO (confirmed).

• Q7: Does it support Bluetooth?
  A: Yes, it supports Bluetooth 5.3 (confirmed).

• Q8: Can it also scan barcodes?
  A: It can be configured with barcode imagers SE4750MR or SE4850 (confirmed).

• Q9: What devices can it connect to?
  A: Zebra mobile computers and tablets, 3rd-party smartphones/tablets, and Windows-based PCs (confirmed).

• Q10: What are the physical sizes?
  A: RFD9030: 189 × 83.4 × 173 mm; RFD9090: 248 × 96.3 × 173 mm (confirmed).

✅ Why Buy This Product

If your Bangladesh operation needs high-speed RFID inventory capture with true industrial durability—and you want the flexibility of a sled that can connect to Zebra devices and more—the Zebra RFD90 Ultra-Rugged UHF RFID Sleds (RFD9030/RFD9090) are a strong choice. Contact BME to check availability and request a formal quotation for your RFID rollout, including accessories and multi-unit deployment planning.
