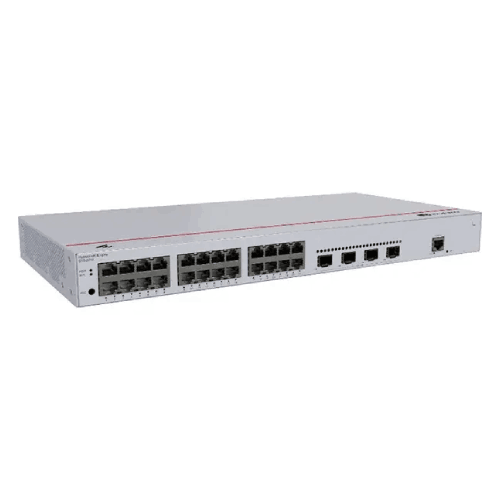

Huawei eKit S220-24T4X 24-Port & 4-Port 10GE SFP+ Managed Non-PoE Switch

Huawei eKit S220-24T4X 24-Port & 4-Port 10GE SFP+ Managed Non-PoE Switch Price in Bangladesh

The Huawei eKit S220-24T4X 24-Port & 4-Port 10GE SFP+ Managed Non-PoE Switch is a rack-mount business networking switch designed for organizations that require 24 Gigabit Ethernet access ports together with high-speed 10 Gigabit optical uplink interfaces. The model combines 24 × 10/100/1000BASE-T Ethernet ports with 4 × 10GE SFP+ ports, giving network administrators a practical way to connect conventional Gigabit devices while maintaining a high-speed optical uplink layer. Huawei's official S220 datasheet lists 128 Gbps switching capacity and 95 Mpps packet forwarding for the S220-24T4X.

The switch belongs to Huawei's eKitEngine S220 series, which Huawei describes as a managed switching platform. The S220 family supports cloud and on-premise management modes, allowing the management approach to be selected according to the network environment.

For Bangladesh businesses, offices, educational institutions, branch networks, retail environments, and structured LAN deployments, the S220-24T4X can provide an effective combination of copper access connectivity and 10GE fiber uplink capability. The 24 copper interfaces can connect standard Gigabit Ethernet endpoints, while the four SFP+ interfaces can be used with compatible 10 Gigabit optical transceivers and fiber infrastructure.

24 Gigabit Ethernet Access Ports

The Huawei S220-24T4X provides 24 × 10/100/1000BASE-T ports. These copper interfaces support Ethernet connectivity at 10 Mbps, 100 Mbps, and 1000 Mbps according to the connected device and negotiated link capability. Huawei confirms this port configuration in its official S220 datasheet.

This makes the switch suitable for environments where a significant number of users or network devices need wired connectivity from a centralized switching point. Desktop computers, network printers, servers, storage devices, wireless access infrastructure, IP-based business equipment, and other Ethernet-compatible devices can be connected through the copper ports, subject to their individual networking requirements.

For a typical office network, the 24-port configuration can provide a centralized access layer for employee workstations and shared resources. In a school or training center, the same port density can support computer labs and administrative equipment. In a retail or professional environment, it can consolidate multiple Ethernet connections into a single rack-mounted switch.

Four 10GE SFP+ Uplink Ports

The most distinctive feature of the S220-24T4X is its 4 × 10GE SFP+ port configuration. Unlike a switch with only Gigabit SFP uplinks, this model provides 10 Gigabit SFP+ interfaces, allowing suitable optical or compatible SFP+ connectivity to operate at higher uplink speeds. Huawei lists four 10GE SFP+ ports for the S220-24T4X.

These ports can be particularly useful when the access switch needs to connect to a higher-capacity aggregation or core network. For example, a network administrator can use the Gigabit copper ports for endpoint devices while using one or more SFP+ interfaces for high-speed connections toward another switch or network layer.

The actual optical distance, wavelength, fiber type, and transmission characteristics depend on the compatible SFP+ transceiver and fiber infrastructure selected. Therefore, buyers should not assume a specific transmission distance simply from the presence of an SFP+ port.

10 Gigabit Uplink Capability

10GE uplinks are particularly useful in modern business networks because the access layer can contain many Gigabit devices while the uplink layer needs additional bandwidth to accommodate aggregated traffic.

A 1 Gbps access connection may be sufficient for an individual workstation, but multiple active Gigabit connections can generate substantially more aggregate traffic. A 10GE uplink provides a higher-speed path toward the aggregation or core layer, subject to the network topology and configuration.

The S220-24T4X therefore fits network architectures where Gigabit access and 10 Gigabit uplinks are required in the same device. This is one of the primary reasons to consider this model instead of a switch equipped only with Gigabit SFP interfaces.

128 Gbps Switching Capacity

Huawei's official English S220 datasheet specifies 128 Gbps switching capacity for the S220-24T4X.

Switching capacity represents the internal switching bandwidth specified for the device. It is an important technical indicator when evaluating a managed switch because it provides context about the switch's ability to handle traffic across its interfaces.

However, switching capacity should not be interpreted as guaranteed application throughput. Real-world network performance depends on traffic patterns, packet sizes, connected devices, uplink design, enabled features, and the architecture of the wider network.

95 Mpps Packet Forwarding Performance

The same official datasheet lists 95 Mpps packet-forwarding performance for the S220-24T4X.

Packet forwarding performance describes the switch's packet-processing capability. Along with the switching-capacity specification, it helps network designers understand the hardware performance class of the switch.

Actual performance in a production environment will depend on the specific traffic conditions and configuration. Therefore, the 95 Mpps figure should be regarded as the manufacturer's specified forwarding capability rather than an application-level performance guarantee.

Managed Layer 2 Networking

Huawei's S220 documentation describes the series as a managed switching platform. Huawei's portfolio documentation identifies S220 as an L2 managing switch and lists Layer 2 capabilities including 16K MAC entries and 4K VLANs. It also identifies support for STP, RSTP, MSTP, and ERPS within the S220 platform.

This managed architecture gives administrators considerably more control than an unmanaged Ethernet switch. Instead of simply connecting devices and allowing a flat LAN to operate, network administrators can configure logical segmentation and network behavior according to organizational requirements.

VLANs, for example, can be used to separate different categories of traffic. An organization might establish different VLANs for employees, guests, administrative systems, voice services, or other logical network groups, depending on its network architecture.

16K MAC Entries and 4K VLANs

Huawei's S220 portfolio documentation specifies 16K MAC address entries and 4K VLANs for the platform.

A MAC address table allows the switch to associate network devices with the appropriate interfaces. A larger address-table capacity can be useful as the number of connected endpoints grows.

VLAN support provides another important network-management capability. By separating traffic into logical broadcast domains, VLANs can help organizations structure larger networks without necessarily requiring a separate physical switch for every logical segment.

The precise VLAN architecture should always be planned around the organization's routers, firewalls, servers, wireless systems, and other switches.

STP, RSTP, MSTP and ERPS

Huawei's S220 documentation lists support for STP, RSTP, MSTP, and ERPS.

These technologies are associated with Layer 2 network topology and redundancy. Spanning Tree variants are commonly used to help prevent problematic Layer 2 loops in networks containing redundant paths.

ERPS is designed for Ethernet ring protection scenarios. Its usefulness depends on whether the organization's physical network topology is designed to use such a mechanism.

These features are therefore particularly relevant for professional networks where availability, structured topology, and controlled redundancy are important considerations.

Cloud and On-Premise Management

One of the useful management characteristics of the S220 family is its support for both cloud management and on-premise management modes. Huawei states that these modes can be switched according to requirements.

Huawei also documents the use of the Huawei eKit App for configuring, monitoring, and inspecting supported switches through cloud management.

For organizations managing multiple network devices, this can provide additional flexibility in how the infrastructure is administered. A network team can select an approach that matches its operational model, deployment environment, and management requirements.

Non-PoE Switch Design

The S220-24T4X is the non-PoE version of this 24-port S220 configuration. Huawei separately lists the S220-24P4X with 400 W PoE+ capability, while the S220-24T4X is specified with standard 24 × 10/100/1000BASE-T ports and four 10GE SFP+ ports without the PoE power budget.

This distinction is important during procurement.

If the network includes access points, IP cameras, VoIP phones, or other PoE-powered equipment that must receive power through Ethernet, a PoE-capable model should be selected. If connected devices already have independent power sources, a non-PoE switch such as the S220-24T4X may be appropriate.

Selecting the correct model before installation helps prevent the need for additional PoE injectors or replacement switching equipment later.

1U Rack-Mount Chassis

Huawei specifies a chassis size of 43.6 mm × 442 mm × 220 mm (H × W × D) for the S220-24T4X and identifies the chassis height as 1U.

A 1U rack-mount design is suitable for structured server rooms, network cabinets, and professional IT infrastructure. It allows the switch to be installed alongside patch panels, firewalls, routers, servers, UPS systems, and other rack-mounted equipment.

Huawei lists the full-configuration weight, including packaging materials, as 3.44 kg for the S220-24T4X.

Built-In AC Power

The S220-24T4X uses a built-in AC power module. Huawei specifies a rated input voltage of 100–240 V AC at 50/60 Hz. The official datasheet also specifies an AC input range of 90–290 V AC at 45–65 Hz and maximum power consumption of 35.04 W for the non-PoE S220-24T4X.

This power configuration makes the switch suitable for standard AC-powered network infrastructure. Appropriate electrical protection, grounding, rack installation, and environmental conditions should still be maintained during deployment.

Cooling and Operating Environment

Huawei's S220 documentation identifies air cooling with intelligent fan-speed adjustment for the S220-24T4X. Huawei's current S220 materials specify an operating temperature range of −5°C to +50°C, with storage temperature of −40°C to +70°C and relative humidity of 5% to 95% non-condensing.

These environmental specifications are important when installing the switch in a Bangladesh server room or network cabinet. Adequate airflow should be maintained, particularly when several networking devices are installed close together.

Huawei's published Chinese S220 brochure also lists noise figures for the S220-24T4X and describes intelligent fan-speed adjustment.

High-Speed Fiber Networking for Business Infrastructure

The combination of 24 Gigabit copper ports and four 10GE SFP+ interfaces gives the S220-24T4X a clear role in structured business networks.

A typical deployment can use the copper interfaces for endpoint access while the SFP+ interfaces connect the switch to an aggregation or core layer. This architecture can reduce the possibility of a heavily loaded Gigabit uplink becoming a bottleneck when many access ports are active simultaneously.

The exact number of uplinks required depends on network topology, redundancy requirements, traffic volume, and the capabilities of the upstream switch.

Suitable for Bangladesh Office and Enterprise Networks

For organizations in Bangladesh, the Huawei eKit S220-24T4X can be considered for office networks, educational institutions, branch offices, retail environments, corporate floors, and other structured LAN deployments.

In a multi-floor office, for example, the 24 copper ports can provide access connectivity to users and network devices on one floor, while SFP+ interfaces can provide high-speed optical connectivity toward an aggregation switch.

In a school or training center, the switch can consolidate computer-lab connections while maintaining high-speed uplink options for the broader campus network.

For a business with a growing server or storage environment, the 10GE SFP+ interfaces can also provide higher-speed network paths where compatible optical networking equipment is available.

A Practical Access Switch with 10GE Uplinks

The central value of the S220-24T4X is its combination of Gigabit access and 10 Gigabit uplink connectivity.

Organizations do not necessarily need every endpoint to operate at 10 Gigabit speeds. Instead, high-speed uplinks can be used to aggregate traffic from many Gigabit-connected devices and carry that traffic toward a higher network layer.

This architecture is common in structured enterprise and SME networking because it separates endpoint connectivity from the higher-bandwidth aggregation paths.

Before purchase, however, buyers should confirm that the upstream equipment, SFP+ transceivers, fiber cabling, and network architecture all support the intended 10GE deployment.

Important Specification Note

Huawei's official S220 documentation currently available in different regional materials shows different published performance figures for the S220-24T4X. The official English datasheet lists 128 Gbps switching capacity and 95 Mpps forwarding, while a newer Huawei Chinese S220 brochure lists 408 Gbps and 126 Mpps for the same model.

Because these figures differ between Huawei documents, the specifications above use the current English S220 datasheet values of 128 Gbps and 95 Mpps rather than mixing figures from different document revisions. For a project-level procurement, the exact hardware revision and applicable regional datasheet should be confirmed with the supplier before placing an order.

✅ Key Features

• 24 × 10/100/1000BASE-T Ports: Provides 24 Gigabit Ethernet copper interfaces for standard wired network devices.
• 4 × 10GE SFP+ Ports: Provides four high-speed SFP+ interfaces for compatible 10 Gigabit optical or supported SFP+ connectivity.
• Managed Network Architecture: Provides configurable network-management capabilities rather than the limited functionality of an unmanaged switch.
• 128 Gbps Switching Capacity: Huawei's current English datasheet specifies 128 Gbps for this model.
• 95 Mpps Forwarding Performance: Provides the manufacturer's specified packet-forwarding capability for the S220-24T4X.
• 16K MAC Entries: Supports a substantial MAC address table according to Huawei's S220 portfolio documentation.
• 4K VLANs: Supports VLAN-based Layer 2 network segmentation.
• STP/RSTP/MSTP/ERPS: Provides Layer 2 topology and redundancy-related capabilities for suitable network designs.
• Cloud and On-Premise Management: Huawei documents both management modes for the S220 series.
• 1U Rack-Mount Design: Uses a compact 1U chassis measuring 43.6 × 442 × 220 mm.
• Built-In AC Power: Uses an integrated AC power module rated at 100–240 V AC, 50/60 Hz.
• Non-PoE Configuration: Designed without an integrated PoE power budget, unlike the S220-24P4X.

✅ Usage / Applications

• Corporate Office Networks: Connect workstations, printers, servers, storage, and other Ethernet devices.
• SME Networking: Build managed Gigabit LAN infrastructure with 10GE uplink capability.
• Branch Offices: Connect branch users while maintaining high-speed links to an aggregation or central network.
• Educational Institutions: Support computer labs, administration systems, and network infrastructure.
• Retail Networks: Connect POS systems, computers, printers, and other wired devices.
• Multi-Floor Buildings: Use suitable SFP+ fiber links for high-speed inter-floor connectivity.
• Server Room Networks: Provide Gigabit access with 10 Gigabit uplink options.
• Business LAN Segmentation: Use VLAN capabilities to create logical network segments.
• Fiber-Based Uplinks: Connect the switch to compatible 10GE optical infrastructure.
• Structured Network Expansion: Add a managed access layer to a larger enterprise or SME network.

✅ Benefits of This Product?

• High-Speed Uplinks: Four 10GE SFP+ interfaces provide substantially higher uplink capability than conventional Gigabit SFP interfaces.
• 24-Port Access Capacity: Connects up to 24 standard copper Ethernet endpoints through the fixed access interfaces.
• Managed Network Control: Provides configurable Layer 2 network functionality for structured deployments.
• VLAN Support: 4K VLAN capability supports logical segmentation of business network traffic.
• Topology Management: STP, RSTP, MSTP, and ERPS support can be useful in networks requiring controlled Layer 2 topology and redundancy.
• Rack-Friendly Installation: The 1U chassis fits standard rack-based IT infrastructure.
• Non-PoE Flexibility: Appropriate for networks where connected devices receive power separately.
• Cloud or Local Management: Provides flexibility in how the S220 series is administered.
• Business-Oriented Platform: Huawei positions the S220 family within its eKit SME network portfolio.

✅ Ideal For

The Huawei eKit S220-24T4X is designed for organizations that need a managed Gigabit Ethernet access switch with 10GE SFP+ uplink capability. It can be considered for corporate offices, SME networks, educational institutions, branch offices, retail environments, and structured business LAN deployments.

The 24 copper ports provide connectivity for conventional Gigabit Ethernet endpoints, while the four 10GE SFP+ ports allow the switch to participate in a higher-speed optical uplink architecture. This makes the model particularly relevant where several Gigabit access connections need to connect toward an aggregation or core network.

The switch is also appropriate for network designs that require VLAN segmentation, Layer 2 topology management, and centralized or local administration. Huawei's documentation identifies 16K MAC entries, 4K VLANs, and STP/RSTP/MSTP/ERPS capabilities for the S220 platform.

Because the S220-24T4X is a non-PoE model, it should be selected when connected devices do not need power delivered through Ethernet. Organizations that require integrated PoE+ for cameras, wireless access points, or VoIP phones should consider the corresponding PoE model instead.

✅ Why Choose the Huawei eKit S220-24T4X 24-Port & 4-Port 10GE SFP+ Managed Non-PoE Switch?

The Huawei eKit S220-24T4X combines 24 Gigabit copper access ports with four 10GE SFP+ interfaces, creating a network switch configuration that separates conventional endpoint connectivity from high-speed uplink requirements. Huawei's official English datasheet specifies 128 Gbps switching capacity and 95 Mpps packet forwarding for the model.

Its 10GE SFP+ interfaces are particularly significant for organizations planning a modern access-to-aggregation network architecture. While individual workstations and other endpoints may continue using Gigabit Ethernet, multiple active access connections can be aggregated toward a higher-capacity network layer through 10GE uplinks.

The S220 platform also provides managed Layer 2 capabilities. Huawei documents 16K MAC entries, 4K VLANs, and STP/RSTP/MSTP/ERPS support, giving network administrators tools for segmentation and structured Layer 2 topology management.

The model's non-PoE configuration is another important characteristic. Huawei separately identifies the S220-24P4X as the PoE+ version with a 400 W PoE budget. If the network does not require Ethernet-based power delivery, the S220-24T4X provides the corresponding non-PoE architecture.

The 1U rack-mount design, built-in AC power module, 100–240 V AC rated input, and cloud/on-premise management options make the model suitable for professional network infrastructure.

✅ Why Buy This Product from BME?

When sourcing professional networking equipment in Bangladesh, choosing the exact model and configuration is important because Huawei's S220 family contains multiple variants with different port arrangements and PoE capabilities.

The Huawei eKit S220-24T4X should be specified by its complete model number when requesting a quotation, particularly because the related S220-24P4X has a PoE+ power budget while the S220-24T4X is non-PoE. Huawei confirms these model differences in its official documentation.

For organizations purchasing several switches for an office, branch, educational facility, or structured network project, the exact technical requirements should be confirmed before procurement. These requirements can include the number of copper ports, required 10GE uplinks, SFP+ transceiver compatibility, fiber type, VLAN architecture, rack space, and whether PoE is necessary.

BME can serve as a Bangladesh sourcing channel for buyers looking for Huawei eKit networking equipment. When requesting a quotation, providing the exact model S220-24T4X helps keep the requested configuration clear and reduces confusion between similar Huawei switch variants.

For larger B2B projects, buyers should also document the required quantity, intended deployment, uplink requirements, and any required compatible optical modules before finalizing the purchase.

✅ Buying Guide

1. Confirm the Exact Model:
Make sure the required switch is S220-24T4X, not the visually similar S220-24P4X or another S220 variant.

2. Check the Copper Port Requirement:
The S220-24T4X provides 24 × 10/100/1000BASE-T ports. Confirm that this meets the number of wired endpoints in your installation.

3. Check the Uplink Speed:
This model provides four 10GE SFP+ ports. Confirm that your upstream equipment supports the required 10 Gigabit connectivity.

4. Determine Whether PoE Is Required:
The S220-24T4X is non-PoE. If cameras, wireless access points, or VoIP phones need Ethernet power, consider a suitable PoE model instead.

5. Select Compatible SFP+ Modules:
The required SFP+ transceiver should match the fiber type, wavelength, connector, transmission distance, and compatibility requirements of the network.

6. Plan the VLAN Structure:
If multiple departments, services, or user groups need network separation, plan the VLAN architecture before deployment.

7. Plan Layer 2 Redundancy:
If the network includes redundant links, determine whether STP, RSTP, MSTP, or ERPS is appropriate for the topology. Huawei lists these capabilities for the S220 platform.

8. Check Rack Space:
The S220-24T4X uses a 1U chassis measuring 43.6 × 442 × 220 mm. Confirm sufficient rack depth and front/rear clearance.

9. Check Power:
Huawei specifies a built-in AC power module with a rated input of 100–240 V AC, 50/60 Hz.

10. Consider Cooling:
Maintain sufficient airflow around the switch, especially when multiple network devices are installed in the same cabinet.

11. Confirm the Performance Revision:
Huawei's available S220 documents contain different published performance figures for this model. For procurement, confirm the applicable hardware revision and current regional datasheet with the supplier.

12. Consider the Complete Network:
Check compatibility with routers, firewalls, aggregation switches, servers, wireless infrastructure, fiber links, and network-management systems before installation.

✅ Customers Ask About / Frequently Asked Questions

Q1. Is the Huawei S220-24T4X a managed switch?
Yes. Huawei identifies the S220 family as a managed switching platform, with Layer 2 management capabilities.

Q2. How many Ethernet ports does the S220-24T4X have?
It has 24 × 10/100/1000BASE-T Ethernet ports.

Q3. How many 10GE SFP+ ports are included?
The model has four 10GE SFP+ ports.

Q4. Does the S220-24T4X support PoE?
No. It is the non-PoE version. Huawei separately lists the S220-24P4X with 400 W PoE+ capability.

Q5. What is the switching capacity?
Huawei's current English S220 datasheet specifies 128 Gbps switching capacity.

Q6. What is the packet-forwarding performance?
The current English datasheet specifies 95 Mpps.

Q7. Does it support VLANs?
Yes. Huawei's S220 portfolio documentation specifies support for up to 4K VLANs.

Q8. How many MAC addresses can it support?
Huawei's S220 portfolio documentation specifies 16K MAC entries.

Q9. Does it support STP and RSTP?
Yes. Huawei lists STP, RSTP, MSTP, and ERPS support for the S220 platform.

Q10. Is the S220-24T4X rack-mountable?
Yes. Huawei specifies a 1U chassis measuring 43.6 × 442 × 220 mm.

Q11. What is the power input?
The switch has a built-in AC power module with a rated input of 100–240 V AC, 50/60 Hz.

Q12. Does the S220 series support cloud management?
Yes. Huawei states that S220 switches support both cloud management and on-premise management modes.

✅ Why Buy This Product

The Huawei eKit S220-24T4X combines 24 Gigabit Ethernet copper ports with four 10GE SFP+ interfaces, making it suitable for managed business networks that need high-speed uplink connectivity alongside conventional Gigabit endpoint access. Huawei's current English datasheet specifies 128 Gbps switching capacity and 95 Mpps forwarding performance.

Its managed Layer 2 capabilities, 16K MAC entries, 4K VLAN support, and STP/RSTP/MSTP/ERPS features provide tools for building structured network infrastructure.

The non-PoE design is appropriate for deployments where connected equipment has independent power, while the four 10GE SFP+ interfaces provide a path toward higher-speed fiber-based network connectivity.

For businesses, institutions, branch offices, and IT infrastructure projects in Bangladesh, the model can be considered when the requirement is specifically for 24 Gigabit access ports, 10GE SFP+ uplinks, managed Layer 2 networking, and a 1U rack-mount design.

Use the exact model Huawei eKit S220-24T4X when requesting product availability, quotation, or technical confirmation.
