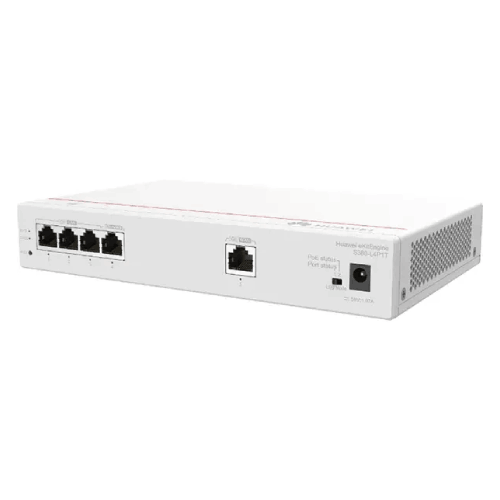

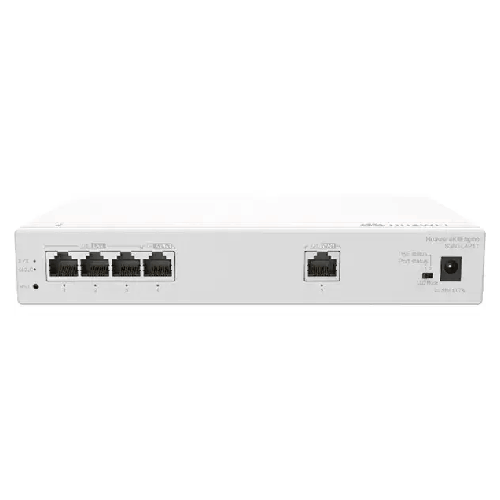

Huawei S380-L4P1T 1-Port GE WAN & 4-Port GE LAN Managed PoE+ Router

Huawei S380-L4P1T 1-Port GE WAN & 4-Port GE LAN Managed PoE+ Router in Bangladesh

The Huawei S380-L4P1T 1-Port GE WAN & 4-Port GE LAN Managed PoE+ Router is a compact networking solution designed for small and medium-sized businesses that need dependable wired connectivity, integrated PoE+ power delivery and centralized network management. As part of Huawei's eKitEngine S380 series, this device combines gateway and switching capabilities in a compact multi-service platform. It is designed to simplify network deployment in offices, retail outlets, educational environments and other business locations.

The Huawei S380-L4P1T features one Gigabit Ethernet WAN port and four Gigabit Ethernet LAN ports. The WAN interface connects the local network to an Internet service or upstream network, while the LAN interfaces connect compatible devices within the business environment. All four LAN ports support PoE+, with a shared maximum PoE output budget of 50W. This arrangement allows compatible powered devices to receive both data and electrical power through Ethernet cabling.

With an 8Gbps switching capacity and 1Gbps egress bandwidth, the S380-L4P1T is designed for small-business network traffic and Gigabit Ethernet connectivity. Huawei specifies a packet forwarding rate of 300 Kpps for upload and 420 Kpps for download. The platform supports up to 200 users and can manage up to 32 access points, making it suitable for deployments that combine wired endpoints with managed wireless networking.

One of the main advantages of this model is its integrated design. Instead of relying on separate devices for every networking function, businesses can use the S380-L4P1T as a central gateway with wired LAN connectivity and PoE+ support. This can help simplify cabling, reduce equipment complexity and make the network easier to organize.

The router also has a compact metal chassis with natural heat dissipation. It supports desk and wall mounting, allowing it to fit into smaller network spaces where a full-size rack-mounted appliance may not be necessary. Its fanless design helps keep equipment noise low in offices and customer-facing environments.

For businesses in Bangladesh looking for a compact Huawei networking platform, the S380-L4P1T brings together Gigabit Ethernet connectivity, PoE+ power delivery and multi-service gateway functionality in one device.

✅ Key Features

✅ 1-Port Gigabit Ethernet WAN

The Huawei S380-L4P1T includes one 10/100/1000BASE-T Gigabit Ethernet WAN interface. This port connects the gateway to an upstream network, such as a broadband modem, an Internet service provider's Ethernet handoff or another compatible network device.

Supporting 10Mbps, 100Mbps and 1Gbps Ethernet speeds allows the interface to work with a range of compatible Ethernet connections. Its Gigabit capability provides a suitable foundation for business Internet services and local networks designed around 1Gbps connectivity.

✅ 4-Port Gigabit Ethernet LAN

The device provides four 10/100/1000BASE-T Gigabit Ethernet LAN ports. These interfaces connect local wired devices such as computers, printers, access points, IP phones and other compatible Ethernet equipment.

Gigabit Ethernet can provide high-speed connectivity for everyday business applications, including cloud-based services, file sharing, video meetings and access to network resources. Actual performance depends on the Internet service, network configuration, connected equipment and traffic conditions.

✅ Four PoE+ LAN Ports

All four LAN ports support PoE+, allowing compatible powered devices to receive electrical power and network data through a single Ethernet cable.

This is useful when deploying devices in locations where a separate electrical outlet may be inconvenient. For example, a compatible access point can be installed in a suitable location and connected to the router using Ethernet cabling, with the same cable carrying both network data and power.

Huawei specifies a maximum PoE power budget of 50W. This is a shared budget across the PoE-capable ports, not 50W per port. Before connecting powered devices, check their PoE standards and power requirements to ensure that the combined load stays within the router's available budget.

✅ 8Gbps Switching Capacity

The S380-L4P1T has a switching capacity of 8Gbps. Switching capacity describes the internal switching fabric's ability to handle traffic across the device's interfaces.

This specification helps characterize the platform's network-processing capability. It should not be confused with the router's 1Gbps egress bandwidth, which is a separate performance specification.

✅ 1Gbps Egress Bandwidth

Huawei specifies 1Gbps egress bandwidth for the S380-L4P1T. This makes the device suitable for network environments built around Gigabit Ethernet services.

For businesses selecting a gateway, egress bandwidth is an important consideration alongside WAN service speed, the number of connected users, traffic patterns and the applications running on the network.

✅ Support for Up to 200 Users

The Huawei S380-L4P1T supports a maximum of 200 users, according to Huawei's product specifications. This provides a useful reference when evaluating the gateway for an office, shop, branch location or other small-business environment.

The practical number of users supported at a particular performance level depends on the types of applications being used, concurrent traffic, wireless infrastructure and network configuration. The maximum-user figure should therefore be treated as a product capacity specification rather than a guarantee of a particular experience for every user.

✅ Management for Up to 32 Access Points

The S380-L4P1T supports management of up to 32 access points. This makes it relevant to business networks that combine wired connectivity with centrally managed wireless access.

The actual access points and required software or configuration should be checked for compatibility before deployment. The managed-AP capacity is a device specification and does not mean that wireless radios are built into the router itself.

✅ Multi-Service Gateway Architecture

The S380-L4P1T belongs to Huawei's multi-service gateway family. It combines gateway functionality with Ethernet switching and PoE+ support in one compact device.

This integrated approach can reduce the number of separate networking appliances required in a small deployment. It can also make the physical network easier to organize, especially where space, power outlets and cabling routes are limited.

✅ Compact Metal Chassis

The router uses a metal chassis and measures approximately 35 × 210 × 130 mm in its basic dimensions. Its maximum depth, including protruding parts, is approximately 136.3mm.

The compact design makes it easier to place on a desk, shelf or suitable wall-mounted location. Its metal enclosure provides a sturdy physical housing for the networking hardware.

✅ Natural Heat Dissipation

The Huawei S380-L4P1T uses natural heat dissipation rather than a fan-based cooling system. A fanless design helps reduce operating noise, which can be useful in offices, retail counters, classrooms and other environments where equipment may be located near people.

The router should still be installed in a suitable location with adequate clearance and within the specified operating environment. Avoid obstructing ventilation areas or placing the device near excessive heat sources.

✅ Practical PoE+ Networking for Business Devices

Power over Ethernet is useful when a network device needs both a data connection and electrical power. By supporting PoE+ on all four LAN ports, the Huawei S380-L4P1T can simplify the installation of compatible powered devices.

Potential uses include powering supported wireless access points, IP phones and selected network cameras. Compatibility depends on the powered device's requirements and the router's available PoE budget.

The total PoE output is limited to 50W. Businesses should calculate the expected power consumption of all connected devices before installation. If the combined demand exceeds the available budget, some devices may not receive the power they require.

PoE+ can also help create a tidier installation. Instead of routing a separate power cable to every compatible device, an Ethernet cable can provide both connectivity and power. This can be particularly convenient for access points mounted above desks or in other locations where power outlets are not readily available.

✅ Designed for Small and Medium-Sized Businesses

The Huawei S380-L4P1T is intended for business networking environments that need a manageable combination of gateway connectivity and wired LAN ports. Its four PoE+ LAN interfaces are particularly relevant to businesses that operate network-powered equipment.

In a small office, the router can provide the connection between the Internet service and the internal network. Wired devices can connect directly to its LAN ports, while compatible PoE-powered equipment can receive power through the same Ethernet cabling.

For a retail outlet, the device can form part of the network connecting point-of-sale equipment, office computers, wireless access points and other compatible endpoints. In an educational environment, it can support a network arrangement that combines wired devices with managed wireless access points.

The suitability of the S380-L4P1T depends on the required Internet bandwidth, number of devices, PoE power demand and network-management needs. Businesses with requirements beyond its 1Gbps egress bandwidth or four LAN ports may need to evaluate a different model or add suitable network equipment.

✅ Suitable for Office Networking

Office environments commonly use a mixture of computers, printers, wireless access points, IP phones and shared network resources. The S380-L4P1T provides four Gigabit Ethernet LAN ports for wired connections and PoE+ support for compatible powered devices.

A business can use the router as a central gateway and connect additional network equipment where needed. The managed-access-point capacity can also be relevant when designing a wireless network around compatible Huawei access points.

For offices, the compact form factor and fanless design can be useful when the networking equipment is installed in a shared workspace or a small communications area.

✅ Suitable for Retail and Commercial Locations

Retail businesses often need connectivity for computers, payment terminals, printers, wireless access points and other network-connected equipment. The Huawei S380-L4P1T can serve as a compact gateway for these devices.

Its PoE+ ports can simplify the installation of compatible network endpoints, while Gigabit Ethernet supports wired connectivity for devices that require a stable local network connection.

The router's maximum user capacity and egress bandwidth should be considered when estimating requirements for a busy retail environment. Businesses should also account for any separate network requirements associated with payment systems or other sensitive services.

✅ Suitable for Managed Wireless Networks

Although the S380-L4P1T is a router and gateway rather than a wireless access point, it supports management of up to 32 access points. This makes it relevant to deployments where wireless connectivity is provided by separate compatible APs.

The router can be part of a network design that includes a wired gateway and multiple wireless access points. PoE+ can provide power to compatible APs connected to the LAN ports, subject to the 50W total PoE budget.

Before deployment, confirm access-point compatibility, management requirements and the power consumption of each AP. Larger wireless networks may require additional PoE switches or other equipment to provide sufficient port count and power capacity.

✅ Compact Installation for Limited Spaces

The S380-L4P1T has a small chassis measuring 35 × 210 × 130mm in its basic dimensions. Its maximum depth is 136.3mm. It supports desk mounting and wall mounting, giving businesses flexibility when choosing an installation location.

This can be useful in smaller offices, retail outlets and branch locations where a full-size rack is not available. The device weighs approximately 0.9kg without packaging, making it relatively easy to position.

For reliable operation, choose a secure location that allows access to the Ethernet ports and power connection. Ensure that the device is not exposed to moisture, excessive dust or temperatures outside its specified operating range.

✅ Efficient, Fanless Operation

The Huawei S380-L4P1T uses natural heat dissipation and has no fan modules. This helps avoid fan noise and reduces the need to manage a mechanical cooling component.

Huawei specifies typical power consumption of 7.19W and maximum power consumption of 61.65W, including up to 50W of PoE output. These figures describe different operating conditions and should not be interpreted as the router continuously consuming its maximum power.

The device's operating temperature range is 0°C to 40°C at an altitude of 0–1,800 metres, with a specified relative humidity range of 5% to 95%, non-condensing. Install the router within these environmental limits.

✅ Power Supply and Surge Protection

The S380-L4P1T uses an external power adapter. Huawei specifies an adapter input range of 90–290V AC at 47–63Hz.

The power adapter has specified surge protection of ±6kV in differential mode and ±6kV in common mode. This is a product specification, not a substitute for appropriate electrical installation practices or site-level surge protection where required.

When installing the router, use the appropriate power adapter and follow the manufacturer's guidance. Keep the power connection accessible and avoid using damaged cables or unsuitable power accessories.

✅ Why Choose Huawei S380-L4P1T Managed PoE+ Router?

The Huawei S380-L4P1T is designed for businesses that need a compact gateway with Gigabit Ethernet connectivity and integrated PoE+ functionality. Its one GE WAN port and four GE LAN ports provide a straightforward wired network layout, while all four LAN ports support PoE+.

The shared 50W PoE budget can help power compatible access points, IP phones and other network devices without requiring a separate power supply for every endpoint. This can reduce cable clutter and simplify installations in smaller business locations.

Its 8Gbps switching capacity and 1Gbps egress bandwidth provide clear performance specifications for network planning. Support for up to 200 users and management of up to 32 access points makes the platform relevant to a range of small-business deployments.

The compact metal chassis, natural heat dissipation and desk- or wall-mounting options make it practical for locations where installation space is limited. Its fanless construction also helps keep equipment noise low.

For businesses in Bangladesh, the S380-L4P1T can be considered when selecting a Huawei networking platform for an office, retail outlet, branch or other small commercial environment. The final choice should be based on the required bandwidth, number of LAN connections, PoE power demand and compatibility with the rest of the network.

✅ Huawei S380-L4P1T Price in Bangladesh

The Huawei S380-L4P1T 1-Port GE WAN & 4-Port GE LAN Managed PoE+ Router is a business networking device designed to combine Gigabit Ethernet connectivity, gateway functionality and PoE+ power delivery.

The current Huawei S380-L4P1T price in Bangladesh may vary according to the supplier, availability, procurement terms and included accessories. Contact the seller for a current quotation and confirm the exact model before purchasing.

When evaluating the router, consider the overall network requirements rather than port count alone. The S380-L4P1T provides four PoE+ LAN ports with a combined 50W power budget, 1Gbps egress bandwidth and support for up to 32 managed access points. These specifications can help determine whether it matches the intended business deployment.
