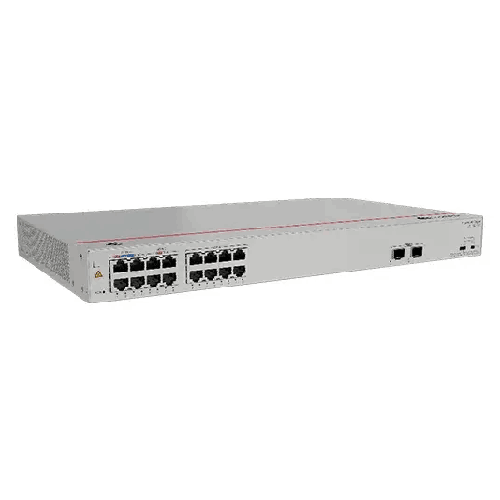

Huawei eKitEngine S110-16LP2SR Layer 2 All Gigabit Unmanaged 16-Port PoE Switch

Huawei eKitEngine S110-16LP2SR Layer 2 All Gigabit Unmanaged 16-Port PoE Switch Price in Bangladesh

The Huawei eKitEngine S110-16LP2SR Layer 2 All Gigabit Unmanaged 16-Port PoE Switch is designed for network environments that need straightforward Gigabit Ethernet connectivity together with practical Power over Ethernet deployment. It combines 16 × 10/100/1000BASE-T PoE+ ports with 2 × GE SFP ports, giving businesses a compact switching platform for connecting computers, IP cameras, wireless access points, VoIP-related devices, and other Ethernet equipment. Huawei specifies a 36 Gbit/s switching capacity and 26.78 Mpps packet forwarding rate, making the switch suitable for Gigabit-class access-network applications where simple deployment and centralized PoE delivery are important.

For businesses in Bangladesh, the S110-16LP2SR can be considered when the network requires multiple copper Ethernet connections without adding a separate power adapter for every compatible PoE endpoint. Its 16 RJ45 ports support 10/100/1000 Mbps Ethernet operation and PoE+, while the two GE SFP interfaces provide fiber-based uplink connectivity where a longer or fiber-connected network path is required. Huawei lists the product as an unmanaged switch, which means its primary purpose is simple plug-and-play connectivity rather than extensive software-based network configuration.

The switch also provides up to 124W of PoE power according to Huawei's product specifications. This capacity makes it relevant to deployments involving multiple compatible powered devices, although the actual number of devices that can be powered simultaneously depends on the individual power requirements of those endpoints. Huawei specifies maximum total PoE power rather than claiming that every connected device can automatically receive the full 124W.

✅ All-Gigabit Copper Connectivity

The S110-16LP2SR provides 16 × 10/100/1000BASE-T RJ45 ports. Each of these ports supports Gigabit Ethernet connectivity while also supporting 100 Mbps and 10 Mbps Ethernet operation. This multi-speed capability makes the switch practical for mixed environments where newer Gigabit devices operate alongside existing lower-speed Ethernet equipment.

For an office, retail outlet, educational facility, hotel, surveillance installation, or small commercial network, 16 copper ports can provide a useful access layer for multiple endpoints. Instead of deploying separate switches for ordinary Ethernet devices and PoE-powered devices, compatible endpoints can be connected to the same PoE-capable access switch.

Gigabit Ethernet is particularly useful for applications that involve frequent file transfers, network cameras, wireless access points, shared storage, cloud-connected workflows, and general business networking. However, real-world throughput depends on the connected equipment, cabling, network architecture, and traffic conditions.

✅ 16-Port PoE+ Access Platform

One of the main reasons to consider the S110-16LP2SR is its 16 PoE+ RJ45 ports. Huawei identifies all 16 GE RJ45 interfaces as PoE+ ports. The product has a maximum PoE power capacity of 124W.

PoE can simplify network installation because compatible powered devices can receive power through their Ethernet connection instead of requiring a separate local power connection. This can be especially useful for IP surveillance cameras, wireless access points, and other compatible network endpoints installed away from convenient electrical outlets.

For example, a surveillance installation can use the switch to connect several IP cameras through Ethernet while supplying their power through the same network cabling. Similarly, a Wi-Fi deployment can use PoE-capable access points without necessarily installing a dedicated power adapter beside each access point.

The total available PoE budget should always be considered during system design. A device requiring 15W, for example, consumes a very different portion of the total budget from a device requiring 30W or more. Therefore, network planners should calculate the combined power requirement of all intended endpoints before deployment.

✅ Two GE SFP Uplink Ports

In addition to its 16 copper Ethernet ports, the Huawei S110-16LP2SR includes 2 × GE SFP ports. These interfaces provide a fiber-oriented uplink option for network designs that require connectivity beyond the immediate copper access segment. Huawei identifies the two interfaces as GE SFP ports.

The presence of SFP uplinks can be useful when the switch is positioned in a different room, floor, building section, or network distribution location and the upstream connection is designed around fiber. The exact fiber distance and optical capability depend on the compatible SFP transceiver and the installed fiber infrastructure, so those characteristics should be selected separately according to the project requirements.

This combination of 16 Gigabit copper ports and 2 GE SFP uplinks gives the S110-16LP2SR a practical access-switch layout for small and medium network segments.

✅ 36 Gbit/s Switching Capacity

Huawei specifies a 36 Gbit/s switching capacity for the S110-16LP2SR.

Switching capacity represents the internal switching bandwidth available to the switch architecture. In a Gigabit access environment, this specification provides an important indication of the platform's switching capability across its interfaces.

For businesses, this is useful when assessing the switch for everyday LAN connectivity, IP surveillance, wireless access, and general network access applications. Actual application performance still depends on the traffic pattern, upstream network, endpoint capabilities, and network topology.

✅ 26.78 Mpps Packet Forwarding Rate

The S110-16LP2SR has a Huawei-rated packet forwarding rate of 26.78 Mpps.

Packet forwarding performance becomes relevant when a switch is processing a large number of individual Ethernet frames. A higher forwarding rate can be beneficial in networks carrying multiple simultaneous streams, such as IP camera traffic, wireless clients, office computers, and other Ethernet-connected equipment.

The specification should be understood as the switch's stated forwarding capability rather than a guarantee of a particular application throughput. Actual performance depends on the complete network environment.

✅ Unmanaged Operation for Simpler Deployment

The S110 family is positioned by Huawei as an unmanaged switch series. Huawei's product portfolio specifically places the S110 series under unmanaged switches and lists operating modes including standard mode, port isolation, uplink aggregation for applicable 16/24-port models, and flow-control disabling.

This positioning is useful for organizations that want straightforward Ethernet connectivity without the complexity associated with configuring a fully managed switch. For a conventional access network, users can focus on physical connectivity, PoE requirements, uplink design, and endpoint placement.

At the same time, an unmanaged architecture means buyers should not expect the same level of software-defined configuration available from Huawei's managed switch families. If a project specifically requires advanced VLAN administration, routing protocols, detailed ACL configuration, centralized management, or extensive Layer 3 functions, a managed switch from an appropriate Huawei series should be evaluated instead.

✅ Flexible Installation Options

Huawei specifies rack mounting, desk mounting, and wall mounting as installation options for the S110-16LP2SR.

This flexibility is valuable because network equipment is not always installed in a traditional server rack. A small office may need a desktop or wall-mounted installation, while a structured networking cabinet may favor rack installation.

The switch has basic dimensions of approximately 43.6 × 442 × 260 mm, with Huawei listing a maximum depth of 267 mm when considering protruding components.

Its 43.6 mm height is consistent with a compact rack-oriented form factor, while the 442 mm width makes physical cabinet and rack planning important. Installation should leave appropriate room for cabling, ventilation, and maintenance access.

✅ Built-In AC Power Supply

Huawei specifies an AC built-in power supply for the S110-16LP2SR. The current product page lists an AC input range of 90V AC to 300V AC at 47–63Hz.

For a Bangladesh installation, the switch should still be deployed according to the electrical design and protection requirements of the site. Network equipment should ideally be connected to a properly protected electrical circuit and suitable power backup where business continuity is important.

The built-in power design also avoids treating the switch as an external-adapter device, which can help keep a structured networking installation cleaner.

✅ Power Consumption and PoE Budget

Huawei lists maximum power consumption of 22W without PoE and 160W at full PoE load, with 124W allocated to PoE.

These figures are useful during network planning because the switch's own operating consumption and the power delivered to connected PoE devices are different considerations.

If the network uses only a few PoE endpoints, actual total power consumption may be substantially below the maximum full-load figure. If many powered devices are attached, the combined PoE requirement needs to remain within the available 124W budget.

This is particularly important in CCTV deployments. Camera models can have different power requirements depending on their design and features. Therefore, buyers should calculate the required PoE budget using the specifications of the actual cameras or other powered devices selected for the project.

✅ Practical Network Applications in Bangladesh

The Huawei S110-16LP2SR can be considered for a variety of small and medium network environments. Huawei's own SME networking documentation places this model in scenarios involving network access and video-security applications.

In a Bangladesh office, the switch can connect desktop computers, network printers, IP phones or other Ethernet endpoints, while compatible PoE equipment can share the same infrastructure.

For a retail shop, it can provide connectivity for network equipment and compatible surveillance devices.

For a small hotel or guesthouse, PoE connectivity can be useful when deploying wireless access points or IP cameras in different locations.

For an educational institution, the switch can support access connectivity for classrooms, administrative offices, wireless infrastructure, and compatible surveillance endpoints.

For security installations, the combination of 16 PoE+ ports and Gigabit Ethernet makes the product particularly relevant to IP camera networks. Huawei's scenario documentation explicitly shows the S110-16LP2SR being used as a video-security-tailored switch and PoE switch in SME network scenarios.

✅ Suitable for Fiber-Connected Network Segments

The two GE SFP interfaces provide an option for optical uplinks. This can be useful when a copper-only connection is not appropriate for the upstream network design.

For example, a switch installed on another floor could use a compatible fiber link toward a distribution switch. A surveillance network in a separate building section could also use fiber as part of its network architecture where appropriate.

The actual optical module, fiber type, transmission distance, and compatibility should be selected according to the network design. The presence of an SFP interface should not be interpreted as a specific transmission distance without selecting and verifying the appropriate transceiver.

✅ Build and Physical Design

The S110-16LP2SR is designed as a compact networking appliance for access connectivity. Huawei lists its unboxed weight at approximately 3.0 kg, while packaged weight is approximately 3.7 kg.

Its physical format supports rack, desk, and wall installation. This allows the same switch model to be considered across different installation environments rather than limiting it exclusively to a conventional rack cabinet.

Proper installation remains important. The unit should be positioned where network cables can be routed cleanly and where adequate ventilation and service access can be maintained.

✅ Key Features

• 16 × Gigabit PoE+ RJ45 Ports: Provides 16 copper Ethernet ports supporting 10/100/1000BASE-T connectivity and PoE+ functionality.
• 2 × GE SFP Ports: Provides two Gigabit SFP interfaces for compatible optical uplink connectivity.
• 124W Maximum PoE Power: Provides a total stated PoE power capacity of up to 124W for compatible connected devices.
• 36 Gbit/s Switching Capacity: Provides the specified internal switching capacity for Gigabit-class access networking.
• 26.78 Mpps Forwarding Rate: Supports the specified packet forwarding performance for network traffic processing.
• Unmanaged Operation: Designed for straightforward networking without the configuration requirements of a conventional managed switch.
• Multiple Installation Options: Supports rack, desk, and wall mounting according to Huawei's product information.
• Built-In AC Power: Uses an integrated AC power supply rather than an external desktop-style adapter.
• All-Gigabit Access Ports: All 16 RJ45 ports support Gigabit Ethernet as well as 100 Mbps and 10 Mbps operation.
• SME and Video-Security Applications: Huawei documentation identifies the model for SME network and video-security-oriented scenarios.

✅ Usage / Applications

• IP Camera Networks: Connect compatible PoE+ surveillance cameras while carrying their network traffic over Ethernet.
• Small and Medium Business Networks: Provide Gigabit access connectivity for computers, printers, and other Ethernet devices.
• Wireless Access Point Deployment: Supply compatible PoE-powered access points through Ethernet cabling.
• Retail Stores: Support POS-related networking, surveillance, wireless access, and other connected equipment.
• Hotels and Guesthouses: Provide network connectivity for access points, cameras, and other compatible endpoints.
• Schools and Training Centers: Connect office and classroom network equipment within a localized access network.
• Office Surveillance Systems: Centralize connections for multiple compatible PoE security devices.
• Fiber-Uplink Access Networks: Use the two GE SFP interfaces for compatible fiber-based upstream connectivity.
• Small Commercial Buildings: Provide a compact access-switch platform where 16 copper ports are sufficient.
• Network Expansion Projects: Add a dedicated Gigabit PoE access segment to an existing network infrastructure.

✅ Benefits of This Product

• Simplified PoE Deployment: Compatible powered devices can receive power through Ethernet rather than requiring separate local power adapters.
• Gigabit Connectivity: The 16 RJ45 interfaces support up to Gigabit Ethernet operation.
• Useful PoE Capacity: The 124W PoE budget provides practical capacity for multiple compatible powered endpoints.
• Fiber Uplink Flexibility: Two GE SFP ports allow compatible optical uplink designs.
• Straightforward Operation: Its unmanaged positioning can reduce configuration requirements for simpler networks.
• Multiple Mounting Choices: Rack, desktop, and wall installation provide flexibility for different physical environments.
• Dedicated Surveillance Potential: Huawei documentation specifically identifies the model for video-security-related SME scenarios.
• Compact Access-Switch Format: The physical design is suitable for structured network installations where space and port density matter.

✅ Ideal For

The Huawei eKitEngine S110-16LP2SR is ideal for organizations that need a straightforward Gigabit PoE access switch rather than a highly configurable managed networking platform. Its combination of 16 PoE+ RJ45 ports and two GE SFP interfaces makes it particularly relevant to small and medium network segments where both copper access connectivity and an optical uplink may be required.

It can be considered for CCTV surveillance systems, small business networks, retail outlets, offices, schools, hotels, and other SME environments. Huawei's own scenario documentation identifies the S110-16LP2SR for PoE and video-security applications.

The switch is also appropriate where installation simplicity is important. Since Huawei positions the S110 series as unmanaged, it is better suited to deployments where advanced switch configuration is not a primary requirement. Buyers who need extensive VLAN, routing, ACL, monitoring, or centralized switch-management functionality should instead compare appropriate managed models.

For Bangladesh projects, the 124W PoE budget should be matched carefully against the combined power requirements of the intended endpoints. This makes the model especially useful when the project has a clearly defined number of PoE devices and their power requirements are known.

✅ Why Choose the Huawei eKitEngine S110-16LP2SR?

The Huawei eKitEngine S110-16LP2SR brings together three practical characteristics: Gigabit Ethernet access, PoE+ power delivery, and fiber-oriented uplink connectivity. Its 16 × 10/100/1000BASE-T PoE+ ports provide a convenient access layer for compatible network devices, while two GE SFP interfaces allow the switch to connect to a suitable fiber-based upstream network.

Its 36 Gbit/s switching capacity and 26.78 Mpps packet forwarding rate provide clearly defined performance specifications for network planning.

Another important consideration is product positioning. Huawei describes the S110 family as an unmanaged switch series, making the S110-16LP2SR appropriate for deployments where simplicity is more important than extensive software configuration.

The 124W PoE budget is another practical advantage for installations containing several compatible powered devices. Instead of designing independent electrical power arrangements for every compatible endpoint, a PoE-based network can consolidate data and power delivery through Ethernet cabling.

The product also provides flexible physical installation options, with Huawei specifying rack, desk, and wall mounting.

For a buyer comparing 16-port PoE switches, the important evaluation points should therefore include port speed, total PoE budget, uplink requirements, installation environment, and whether managed configuration is necessary. When those requirements match an unmanaged Gigabit PoE design, the S110-16LP2SR offers a clearly specified Huawei networking platform.

✅ Why Buy This Product from BME?

When purchasing networking equipment for a Bangladesh deployment, selecting the correct model is only part of the process. Buyers also need to ensure that the selected switch matches the intended number of endpoints, PoE requirements, uplink architecture, installation environment, and network expansion plans.

BME can be considered as a source for businesses and organizations looking for professional networking equipment in Bangladesh. Before placing an order, customers can verify the exact model, required quantity, port configuration, PoE requirements, and deployment needs so that the selected product aligns with the project.

For the Huawei S110-16LP2SR, particular attention should be given to the 124W PoE budget. A simple device-count calculation is not enough because different PoE endpoints can have different power requirements. Buyers should calculate the combined expected load before finalizing a deployment.

For larger business, surveillance, education, hospitality, or commercial projects, procurement teams can also organize their requirements around the number of copper access ports, number of PoE endpoints, required fiber uplinks, and physical installation location.

BME can also help buyers evaluate the product specifications against their stated networking requirements before purchase. This is especially useful when deciding between an unmanaged PoE switch and a more configurable managed model.

For Bangladesh buyers searching for Huawei PoE switches, Gigabit network switches, CCTV networking equipment, fiber-uplink switches, and SME networking solutions, the S110-16LP2SR can be evaluated according to the actual project specifications rather than selecting a switch based solely on port count.

✅ Buying Guide

1. Determine the Number of Ethernet Devices

Start by counting the computers, cameras, access points, printers, and other Ethernet devices that will connect to the switch. The S110-16LP2SR provides 16 copper RJ45 ports.

2. Calculate the PoE Requirement

Do not simply count the number of PoE devices. Check the power requirement of every intended endpoint and calculate the combined load. The switch provides a maximum PoE capacity of 124W.

3. Check Port Speed Requirements

The copper ports support 10/100/1000BASE-T. This makes the switch appropriate for Gigabit Ethernet access networks while maintaining compatibility with 10 Mbps and 100 Mbps Ethernet devices.

4. Determine the Uplink Type

If the upstream connection requires fiber, the switch has two GE SFP interfaces. Select compatible SFP modules and fiber infrastructure according to the required transmission environment.

5. Confirm Managed vs. Unmanaged Requirements

This model belongs to Huawei's S110 unmanaged switch family. If your network requires extensive software configuration, verify whether a managed Huawei model would be more appropriate.

6. Plan the Installation Location

Huawei supports rack, desk, and wall mounting. Check the available physical space and leave sufficient room for cable routing and maintenance.

7. Check Electrical Requirements

Huawei lists an AC input range of 90–300V AC at 47–63Hz. Ensure the installation uses an appropriate protected electrical supply.

8. Plan the Network Uplink

Consider where the switch will sit in the overall network topology. If it will operate as an access switch, determine how the two GE SFP interfaces will connect to the upstream network.

9. Check PoE Endpoint Compatibility

Before deployment, verify that the intended powered devices are compatible with the switch's PoE+ implementation and that the combined power requirement remains within the available budget.

10. Avoid Choosing Only by Port Count

A 16-port switch is not automatically suitable for every 16-device installation. Check PoE budget, uplink technology, port speed, installation requirements, and management requirements before purchasing.

✅ Customers Ask About / Frequently Asked Questions

Q1. What is the Huawei S110-16LP2SR?

The Huawei eKitEngine S110-16LP2SR is an unmanaged Gigabit Ethernet switch with 16 PoE+ RJ45 ports and 2 GE SFP ports. Huawei specifies 36 Gbit/s switching capacity and 26.78 Mpps packet forwarding.

Q2. How many PoE ports does the S110-16LP2SR have?

It has 16 × 10/100/1000BASE-T RJ45 ports, and Huawei identifies all 16 as PoE+ ports.

Q3. What is the maximum PoE power of the S110-16LP2SR?

Huawei specifies a maximum PoE power capacity of 124W.

Q4. Does the S110-16LP2SR support Gigabit Ethernet?

Yes. Its 16 copper ports support 10/100/1000BASE-T, including Gigabit Ethernet operation.

Q5. Does it have SFP ports?

Yes. The switch provides 2 × GE SFP ports for compatible Gigabit optical connectivity.

Q6. Is Huawei S110-16LP2SR a managed switch?

Huawei positions the S110 series as an unmanaged switch series.

Q7. What is the switching capacity?

The S110-16LP2SR has a specified switching capacity of 36 Gbit/s.

Q8. What is its packet forwarding rate?

Huawei specifies a packet forwarding rate of 26.78 Mpps.

Q9. Can it be used for IP cameras?

It can be considered for compatible PoE IP-camera deployments. Huawei's SME networking documentation specifically identifies the S110-16LP2SR in video-security-oriented scenarios.

Q10. Can it power Wi-Fi access points?

Compatible PoE-powered wireless access points can be connected to its PoE+ ports, provided their power requirements fit within the available PoE budget.

Q11. How can the switch be installed?

Huawei specifies rack mounting, desk mounting, and wall mounting.

Q12. What power input does the switch use?

It uses a built-in AC power supply. Huawei currently specifies an input range of 90–300V AC at 47–63Hz.

✅ Why Buy This Product?

The Huawei eKitEngine S110-16LP2SR is a practical option for network projects that require 16 Gigabit PoE+ access ports, two GE SFP uplinks, and a straightforward unmanaged operating model.

Its 124W PoE budget can simplify the deployment of compatible powered endpoints, while the 16 Gigabit RJ45 ports provide connectivity for standard Ethernet equipment. The two GE SFP interfaces add an optical uplink option for network architectures that require fiber connectivity.

The product's 36 Gbit/s switching capacity and 26.78 Mpps forwarding rate provide clear performance specifications for network planning.

For offices, retail businesses, hotels, schools, surveillance installations, and other SME environments, the S110-16LP2SR can be evaluated as an access-layer switch where advanced managed-switch configuration is not required.

If you are looking for a Huawei 16-port PoE switch in Bangladesh, particularly one combining Gigabit RJ45 connectivity, 124W PoE capacity, and GE SFP uplinks, the S110-16LP2SR is a model worth considering based on your network's actual requirements.
