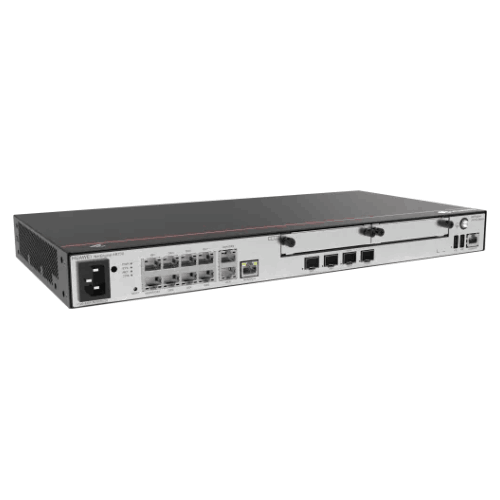

Huawei NetEngine AR730 8 Port Gigabit Router

Huawei NetEngine AR730 8 Port Gigabit Router Price in Bangladesh

The Huawei AR730 is a rack-mountable enterprise-class managed router designed for branch offices, small and medium-sized businesses, commercial networks, and multi-service network environments requiring flexible WAN connectivity and substantial Gigabit Ethernet capacity. As part of Huawei's AR700 series, the AR730 combines routing, switching, VPN, security, and WAN connectivity capabilities in a 1U hardware platform. Huawei specifies the model with two GE Combo WAN ports, one 10GE optical WAN port, eight GE electrical LAN ports, and one GE Combo LAN port.

The AR730 is particularly relevant for organizations operating multiple Internet or WAN connections. Its two GE Combo WAN interfaces can provide Gigabit Ethernet connectivity through electrical or optical interfaces depending on the supported configuration, while the dedicated 10GE SFP+ WAN interface provides a higher-speed optical WAN option. Huawei also specifies that the eight GE electrical interfaces can be switched to WAN interfaces, giving network administrators additional flexibility when designing WAN and LAN connectivity.

At the performance level, Huawei specifies 9 Mpps to 25 Mpps forwarding performance and 6 Gbps throughput for the AR730. The device is also specified for up to 1,200 connected terminals in Huawei's eKit product information. These figures are useful for network planning, although real-world performance depends on traffic patterns, enabled services, packet sizes, security functions, WAN conditions, and configuration.

The AR730 is more than a conventional Internet gateway. Huawei positions the AR700 series as a multi-service enterprise router platform supporting functions associated with routing, VPN, security, MPLS, and other enterprise networking requirements. Huawei's official AR700 documentation also highlights firewall, IPS, antivirus-related security capabilities, and IPsec VPN functionality for the series.

Another important characteristic is its expansion capability. The AR730 provides two SIC slots, allowing supported interface or service expansion options to be considered according to the network architecture. Huawei's documentation also lists two USB ports, a console interface, and 4 GB of memory and 1 GB of Flash for the AR730 platform.

The router uses an integrated AC power supply and is designed as a 1U rack-mountable device. Huawei's current eKit product page lists basic dimensions of approximately 44.4 × 442 × 220.4 mm, with a maximum depth of approximately 225.2 mm depending on the protruding components. The unboxed weight is approximately 3.2 kg.

For Bangladesh businesses requiring a managed wired gateway with Gigabit LAN connectivity and a 10GE optical WAN option, the Huawei AR730 offers a flexible platform for branch networking, multi-WAN deployments, enterprise Internet access, VPN connectivity, and integrated network services.

✅ Key Features of Huawei AR730

✅ Enterprise Managed Router: The Huawei AR730 is a managed enterprise router designed for branch offices, SME environments, and commercial network infrastructures requiring centralized routing and network management.

✅ 2 × GE Combo WAN: The router provides two Gigabit Ethernet Combo WAN interfaces, giving network administrators flexible WAN connectivity options.

✅ 1 × 10GE Optical WAN: A dedicated 10GE optical WAN interface using an SFP+ interface provides a higher-speed WAN connectivity option and can also support compatible GE optical connectivity according to Huawei's specifications.

✅ 8 × GE Electrical LAN: Eight Gigabit Ethernet electrical ports provide wired LAN connectivity for computers, switches, access points, IP devices, and other network endpoints.

✅ 1 × GE Combo LAN: An additional Gigabit Ethernet Combo LAN interface provides further flexibility between electrical and optical connectivity.

✅ Flexible WAN Expansion: Huawei specifies that the eight GE electrical LAN interfaces can be switched to WAN interfaces, allowing the AR730 to support different network topologies.

✅ 6 Gbps Throughput: Huawei's eKit SME networking material specifies up to 6 Gbps throughput for the AR730.

✅ 9–25 Mpps Forwarding Performance: The official Huawei eKit product information lists forwarding performance from 9 Mpps to 25 Mpps.

✅ Up to 1,200 Connected Terminals: Huawei specifies 1,200 as the number of connected terminals for the AR730. This is a network-planning figure rather than a guarantee of identical performance for every traffic profile.

✅ 2 × SIC Expansion Slots: The AR730 includes two SIC slots for supported expansion options.

✅ 2 × USB 2.0: Two USB 2.0 host interfaces are included on the hardware platform.

✅ Enterprise VPN Capability: Huawei identifies IPsec VPN among the security and connectivity capabilities of the AR700 series.

✅ Enterprise Routing: The AR700 platform supports enterprise routing technologies including static routing and dynamic routing capabilities such as RIP, OSPF, BGP, and IS-IS, along with MPLS and VPN-related functions.

✅ Built-In AC Power: The AR730 uses an integrated AC power supply rather than PoE as its primary power method.

✅ 1U Rack-Mount Form Factor: The 1U chassis is designed for rack-based network infrastructure deployments.

✅ Multi-WAN Connectivity for Business Networks

Modern business networks frequently need more than one WAN connection. An organization may use separate Internet links for redundancy, load distribution, dedicated business services, or different upstream providers. The Huawei AR730 is designed around this type of flexible WAN architecture.

The router provides two GE Combo WAN interfaces together with a dedicated 10GE SFP+ optical WAN interface. This gives the network administrator multiple physical WAN connectivity options within the same router.

The 10GE optical interface is particularly relevant for organizations whose upstream provider or core network offers higher-speed fiber connectivity. Instead of limiting the router's WAN architecture to conventional Gigabit interfaces, the AR730 provides an optical 10GE interface for higher-bandwidth network designs.

The two GE Combo WAN interfaces add further flexibility. Combo interfaces combine electrical and optical interface options within the same logical port position; the specific working interface depends on the supported configuration and inserted connection type. Huawei documentation explains that combo interfaces can operate through either electrical or optical connectivity rather than both simultaneously on the same combo interface.

This architecture makes the AR730 appropriate for network designs involving multiple ISP connections, branch connectivity, and WAN redundancy.

✅ 10GE SFP+ WAN Connectivity

One of the most significant hardware characteristics of the AR730 is its dedicated 10GE optical WAN interface.

A 10GE SFP+ WAN port allows the router to connect to suitable high-speed optical network infrastructure. This can be particularly useful in business environments where the WAN connection is faster than standard Gigabit Ethernet.

Huawei's official eKit information identifies the fixed WAN configuration as 2 × GE Combo ports plus 1 × 10GE optical port, with the 10GE optical port compatible with GE optical connectivity.

The use of SFP+ also gives network designers greater flexibility over the optical transceiver and fiber infrastructure used for the WAN connection, subject to Huawei's supported module and compatibility requirements.

For organizations planning a network migration from 1Gbps WAN infrastructure toward higher-speed fiber connectivity, the 10GE WAN capability can be an important consideration.

✅ Flexible LAN and WAN Port Allocation

The AR730 is not limited to a fixed relationship between its Ethernet ports and network roles.

Huawei specifies eight GE electrical LAN ports, one GE Combo LAN port, two GE Combo WAN ports, and one 10GE optical WAN port. Importantly, Huawei's eKit specifications state that the eight GE electrical LAN ports can be switched to WAN ports.

This provides flexibility when a particular deployment requires additional WAN interfaces.

For example, a business may initially use the eight GE ports primarily for internal LAN connectivity while using the dedicated WAN ports for Internet access. In another deployment, additional GE ports can be allocated toward WAN connectivity according to the supported configuration.

This adaptability can reduce the need to select completely different hardware when the network topology changes.

✅ 6 Gbps Throughput and 25 Mpps Forwarding

Network throughput and packet forwarding performance are two different but complementary measurements.

Huawei specifies the AR730 with 6 Gbps throughput in its eKit SME network material. The same documentation identifies forwarding performance from 9 Mpps to 25 Mpps, while the current eKit product page lists the same 9–25 Mpps range.

Throughput represents the amount of traffic the platform can process under specified conditions, while packet forwarding performance reflects how many packets can be handled per second. Actual performance depends on packet size, enabled services, routing configuration, security functions, and traffic patterns.

For business networks, these specifications provide useful reference points when comparing router capacity against expected WAN and LAN traffic.

✅ Enterprise Routing and Multi-Service Architecture

The AR730 belongs to Huawei's NetEngine AR700 enterprise router family. Huawei describes the AR700 series as a branch-oriented platform combining routing, switching, VPN, security, MPLS, and other network services.

Huawei's SME networking material lists routing capabilities including Static Route, RIP, OSPF, BGP, and IS-IS, as well as MPLS and VPN-related capabilities.

This makes the AR730 relevant to more sophisticated business networks than a basic consumer Internet router.

Static routing can be used in straightforward branch configurations, while dynamic routing protocols can be applied in larger or more interconnected network architectures where routes need to be exchanged automatically.

OSPF and BGP, for example, serve very different network-design purposes, so their availability should be considered in the context of the organization's actual routing architecture rather than simply as a feature checklist.

✅ VPN and Network Security Capabilities

Secure branch connectivity is an important requirement for modern enterprise networks. Huawei identifies IPsec VPN among the security capabilities of the AR700 platform. The official AR700 product information also describes firewall, IPS, and antivirus-related security functions for the series.

IPsec VPN can provide encrypted connectivity between compatible network endpoints over an IP network. This is particularly relevant for organizations that need secure communication between headquarters, branches, remote sites, or other business locations.

The AR730's multi-WAN capabilities can also be incorporated into broader WAN architectures where organizations need multiple upstream links and secure site-to-site connectivity.

The exact security features available in a deployed configuration can depend on software version, licenses, and service configuration, so enterprise deployments should be checked against Huawei's current feature and licensing documentation.

✅ 2 SIC Expansion Slots

The AR730 includes two SIC expansion slots, providing a hardware expansion path for supported interface or service modules. Huawei's official AR700 specifications list two SIC slots on the AR730 and a maximum of one WSIC slot depending on the supported slot configuration.

This expansion architecture is useful for organizations whose network requirements may evolve after the initial deployment.

Rather than treating the router as a completely fixed appliance, the SIC architecture allows supported expansion options to be considered when additional connectivity or service requirements arise.

The actual modules supported should always be checked against Huawei's compatibility matrix and the software version running on the router.

✅ Built for Branch Offices and SME Networks

Huawei positions the AR700 series toward enterprise branch networks and small and medium-sized business environments. The AR730 combines multiple WAN interfaces, numerous Gigabit Ethernet interfaces, a 10GE optical WAN interface, routing functions, security capabilities, and expansion slots within a 1U chassis.

A branch office may require connectivity to multiple WAN services, a local LAN, VPN connectivity to headquarters, and centralized network management. The AR730 provides a hardware platform designed to address these requirements.

The 1U rack-mount form factor also makes the device suitable for structured server rooms, network cabinets, and professional IT infrastructure where standardized rack equipment is preferred.

✅ 8 Gigabit LAN Ports for Local Devices

The eight GE electrical LAN ports provide conventional Gigabit Ethernet connectivity for wired network endpoints.

These ports can be used for computers, printers, IP phones, switches, servers, access points, surveillance-related network equipment, and other Ethernet devices according to the network design.

Because Huawei specifies that these eight GE electrical interfaces can be switched to WAN interfaces, they can also provide additional WAN-side flexibility when required.

The additional GE Combo LAN interface provides another connectivity option, making the fixed Ethernet interface configuration particularly flexible.

✅ Compact 1U Rack-Mount Design

The AR730 is designed as a 1U network appliance. Huawei lists basic dimensions of approximately 44.4 mm × 442.0 mm × 220.4 mm, while the maximum depth including protruding components is approximately 225.2 mm. The unboxed weight is approximately 3.2 kg.

The 1U format allows the router to be installed alongside switches, firewalls, servers, patch panels, and other rack-mounted infrastructure.

Huawei also identifies rack, workbench, and wall installation options on the eKit product page.

This provides flexibility for both traditional server-room deployments and smaller business environments where a full rack may not be available.

✅ AC Power and Thermal Design

The current Huawei eKit specifications list an integrated AC power supply for the AR730, with an input voltage range of 90 V to 264 V and an input frequency range of 47 Hz to 63 Hz. Huawei specifies typical power consumption of 28 W and maximum power consumption of 33 W on the current eKit product page.

The router incorporates a built-in fan for cooling. Huawei specifies an operating temperature range of 0°C to 45°C and operating relative humidity of 5% to 95% non-condensing.

The current eKit specification also notes that at altitudes between 1,800 m and 5,000 m, the maximum operating temperature is reduced by 1°C for every 220 m increase in altitude.

These environmental specifications are relevant when planning the physical installation location and rack cooling requirements.

✅ 4GB Memory and 1GB Flash

Huawei's AR700 series documentation specifies the AR730 with 4 GB memory and 1 GB Flash.

Memory and Flash capacity are important in an enterprise router because the platform needs to support its routing, management, security, and service functions.

The AR730's hardware platform is therefore designed for more than basic NAT-based Internet sharing. It provides the hardware resources expected of a multi-service enterprise gateway.

✅ Two USB 2.0 Interfaces and Console Port

The AR730 includes two USB interfaces and an RJ45 console interface. Huawei's hardware documentation identifies the USB interfaces as USB 2.0 host ports and the console interface as an RJ45 serial console connection.

The console interface is useful for local configuration and troubleshooting, especially during initial deployment or when network-based management access is unavailable.

The USB interfaces provide additional hardware connectivity for supported functions and accessories.

✅ Non-PoE Enterprise Router Architecture

The Huawei AR730 is a non-PoE router. Its primary function is enterprise routing and gateway connectivity rather than directly supplying Ethernet power to downstream devices.

This distinction is important when designing a complete network. Access points, IP phones, or other PoE devices connected to the AR730 may require a separate PoE switch or dedicated PoE injector.

The AR730 can therefore serve as the routing and WAN gateway while a suitable managed Ethernet switch handles local switching and PoE requirements.

✅ Why Choose Huawei AR730?

The Huawei AR730 brings together multiple WAN options, flexible LAN allocation, enterprise routing capabilities, VPN functions, security features, and hardware expansion within a compact 1U platform.

Its two GE Combo WAN ports and dedicated 10GE SFP+ WAN port provide a combination of conventional Gigabit and high-speed optical WAN connectivity. The ability to switch the eight GE electrical interfaces to WAN operation adds another layer of topology flexibility.

The router's 6 Gbps throughput and 9–25 Mpps forwarding performance provide useful performance references for business network planning. Huawei also specifies support for up to 1,200 connected terminals, making the platform suitable for sizeable branch or SME wired environments when the actual traffic profile is compatible with the device's capabilities.

The AR730 also provides two SIC expansion slots, two USB 2.0 ports, 4 GB memory, 1 GB Flash, and a console interface. These features make the platform adaptable to professional network infrastructure requirements.

For businesses that need a professional wired router rather than a basic consumer gateway, the AR730 offers a substantially broader networking architecture. Its support for enterprise routing, VPN, security, MPLS-related services, multiple WAN links, and expansion options makes it suitable for more structured network environments.

✅ Huawei AR730 for Bangladesh Business Networks

The Huawei AR730 can be considered for a range of business networking projects in Bangladesh, including corporate branch offices, SME networks, educational institutions, commercial facilities, multi-site businesses, and professional IT infrastructure.

Its multiple WAN interfaces can be useful where organizations maintain more than one Internet or WAN connection. The 10GE SFP+ WAN interface can also be relevant where high-speed optical connectivity is available.

For local LAN connectivity, the eight Gigabit Ethernet ports and one GE Combo LAN port provide a substantial number of fixed wired interfaces. Additional switching capacity can be added through a separate Ethernet switch when the number of local endpoints exceeds the router's fixed port capacity.

Because the AR730 is non-PoE, networks using PoE wireless access points or IP phones should include a compatible PoE switch in the infrastructure design.

The device's 1U form factor also makes it suitable for professional server racks and network cabinets.
