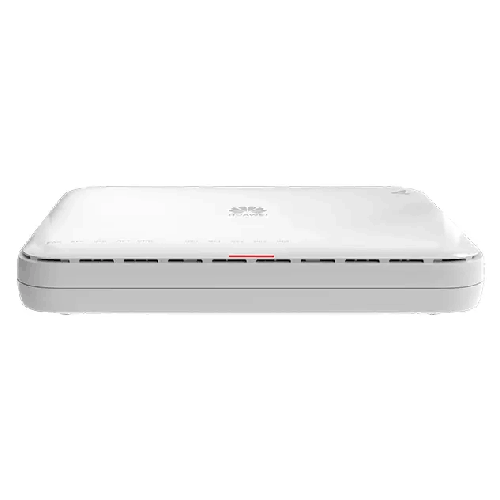

Huawei eKitEngine AR303 4-port Desktop Enterprise Gateway Router

Huawei eKitEngine AR303 4-port Desktop Enterprise Gateway Router in Bangladesh

The Huawei eKitEngine AR303 4-Port Desktop Enterprise Gateway Router is a fixed enterprise router designed for small and medium-sized businesses, branch offices and micro-enterprises. It combines routing, switching and security capabilities in a compact desktop platform, helping organizations build a structured business network without requiring a large rack-mounted router.

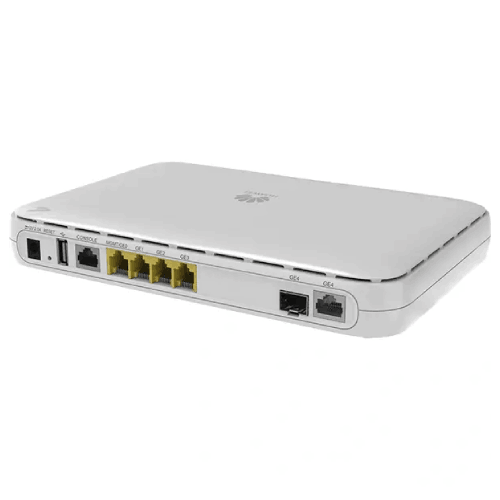

The AR303 features one GE Combo WAN interface and four GE electrical LAN interfaces. The WAN interface provides an uplink to an Internet service or upstream network, while the four LAN interfaces connect computers, switches and other Ethernet-based devices. Huawei specifies that the four GE electrical ports can be switched to WAN ports, allowing the network design to be adapted to different requirements.

With a forwarding performance of 1 Mpps and support for up to 200 connected terminals, the Huawei AR303 is designed for business networks that need more than basic home-router functionality. The terminal figure is a planning reference based on Huawei's service model; actual capacity depends on the traffic profile, applications and network configuration.

The AR303 belongs to Huawei's enterprise router family and uses Huawei's VRP operating system. Its networking functions include IP routing, NAT, DHCP, DNS, VLAN management, VPN, quality of service and security features. These capabilities make it suitable for organizations that need structured network connectivity, policy-based traffic handling and secure communication between locations.

The router's four Ethernet LAN ports provide flexibility for connecting local devices or extending the network through an additional switch. When more wired connections are required, a suitable Ethernet switch can expand the available port count. The GE Combo WAN interface supports an Ethernet or optical uplink, depending on the supported interface configuration and compatible transceiver or cable.

The compact desktop design is another practical advantage. The AR303 measures approximately 38 × 240 × 161.5 mm and weighs about 0.58 kg without packaging. It supports workbench and wall installation, making it suitable for offices and branch locations where space is limited.

The device uses natural heat dissipation and a fanless design, helping maintain a quiet working environment. Its external AC power supply and compact chassis make it straightforward to incorporate into a small network installation.

For businesses in Bangladesh seeking a Huawei enterprise gateway with Gigabit Ethernet connectivity, routing flexibility and integrated security functions, the eKitEngine AR303 offers a compact platform for building a reliable business network.

✅ Key Features

✅ One GE Combo WAN Interface

The Huawei AR303 includes one GE Combo WAN interface for connecting to an upstream network. A combo interface supports the applicable electrical or optical connection options defined for the hardware, allowing the router to fit different uplink arrangements.

This flexibility can be useful when an organization receives its Internet connection through Ethernet or needs a compatible optical connection. The exact media option depends on the port implementation and the supported transceiver or cable.

A Gigabit Ethernet uplink provides a maximum nominal interface rate of 1Gbps. Actual Internet throughput depends on the service plan, network configuration, enabled services and overall traffic conditions.

✅ Four Gigabit Ethernet LAN Ports

The AR303 provides four GE electrical LAN ports for connecting wired network devices. These interfaces support Gigabit Ethernet connectivity for compatible computers, printers, switches and other Ethernet-based equipment.

The four ports can serve as the starting point for a small office network. Where the number of devices exceeds the available ports, an additional Ethernet switch can be connected to expand the network.

Huawei specifies that the four GE electrical ports can be switched to WAN ports. This allows the device's port configuration to be adapted to a network design that requires additional WAN interfaces, subject to the supported configuration.

✅ 1 Mpps Packet Forwarding Performance

The Huawei eKitEngine AR303 provides a specified packet forwarding performance of 1 million packets per second (1 Mpps).

Packet forwarding performance describes how many packets a router can process under the applicable measurement conditions. It is a useful specification when evaluating a router for business traffic, particularly where multiple applications and network sessions are active.

The 1 Mpps figure should not be treated as a direct equivalent of Internet throughput in gigabits per second. Real-world performance depends on packet sizes, enabled features, traffic direction and configuration.

✅ Support for Up to 200 Connected Terminals

Huawei specifies a capacity of 200 connected terminals for the AR303. This provides a reference point for selecting the router for small and medium-sized business environments.

The practical number of users depends on the applications being used and the amount of traffic generated by each device. A network with basic web access and office applications may have a different traffic profile from one with extensive cloud services, large file transfers or real-time communications.

The terminal capacity is therefore best used as a model-selection guideline rather than a guarantee of performance under every workload.

✅ Enterprise Routing Functions

The AR303 supports enterprise-oriented routing functions, including static routes and dynamic routing protocols. Huawei's AR303 datasheet identifies support for RIP, OSPF, IS-IS and BGP, in addition to static routing and routing policies.

These capabilities allow the router to participate in different network architectures. Static routing can be used in smaller, straightforward networks, while dynamic routing protocols can support more complex topologies when configured appropriately.

The required protocol and feature support should be checked against the intended software version and deployment requirements before implementation.

✅ Integrated NAT, DHCP and DNS Functions

The AR303 supports core network services such as NAT, DHCP and DNS-related functions.

Network Address Translation (NAT) allows private network addresses to communicate through an upstream connection using the applicable address-translation configuration. DHCP can simplify endpoint configuration by assigning network settings automatically. DNS enables devices to resolve domain names into network addresses.

These functions are central to many business gateway deployments and can reduce the amount of manual configuration required for individual client devices.

✅ VPN Support

The Huawei AR303 supports multiple VPN technologies, including IPsec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN and L2TPv3 VPN, as listed in Huawei's enterprise router datasheet.

VPN functions can help organizations establish logical connections between network locations or support specific remote-access and tunnelling architectures. The appropriate VPN type depends on the network design, security requirements and compatibility with the remote endpoint.

VPN performance depends on the selected protocol, encryption settings, traffic profile and enabled services. Buyers should confirm the required VPN capacity and configuration before deploying the router in a demanding encrypted-traffic environment.

✅ VLAN and Ethernet Switching Features

The AR303 supports Ethernet switching functions, including VLAN management, VLAN aggregation, MAC address management and spanning-tree functions such as STP and RSTP.

Virtual LANs allow administrators to logically separate groups of devices while using shared physical network infrastructure. This can help organize departments, services or device categories according to the network's design.

STP and RSTP help manage Layer 2 network loops in supported topologies. These functions are useful when the router is deployed as part of a larger Ethernet environment with switches and multiple network paths.

✅ Quality of Service

Quality of Service (QoS) features help administrators manage traffic according to network policies. Huawei lists functions such as priority mapping, traffic policing, traffic shaping, congestion management and congestion avoidance for the AR303.

These tools can help organize how network resources are allocated when different applications compete for available bandwidth. For example, a business may configure priority treatment for selected operational traffic while controlling less time-sensitive transfers.

The actual outcome depends on the configured policies, traffic patterns and the capabilities of the complete network.

✅ Security and Access Control

The AR303 supports enterprise security functions, including IPv4 and IPv6 access control lists, a domain-based stateful firewall, 802.1X authentication, MAC authentication, Portal authentication and AAA-related functions.

Huawei's datasheet also lists RADIUS, HWTACACS, PKI, ARP security, ICMP attack defence, broadcast-storm suppression, blacklist functions and URL filtering.

These features provide administrators with tools for controlling network access, applying security policies and managing authentication. The specific protection achieved depends on correct configuration, software support and the overall network-security design.

✅ Huawei VRP Operating System

The Huawei AR303 uses Huawei's VRP operating system. VRP provides the software foundation for routing, switching, security and network-management functions.

For network administrators, a consistent operating environment can make it easier to apply familiar configuration practices across supported Huawei devices. The available commands, features and management methods depend on the product and software release.

✅ Fanless Desktop Design

The AR303 uses a fanless design with natural heat dissipation. This helps reduce mechanical noise and makes the router suitable for office environments where quiet operation is desirable.

The device can be installed on a workbench or against a wall. Its compact footprint is useful in small network cabinets, deskside installations and branch offices without dedicated server rooms.

Although the router is fanless, it should still be installed in a location with suitable airflow and within the specified operating temperature and humidity limits.

✅ Flexible WAN and LAN Configuration

The Huawei AR303 is designed to provide a practical balance between an uplink interface and local Ethernet connectivity.

Its fixed GE Combo WAN interface provides the primary uplink, while the four GE electrical ports serve as LAN interfaces by default. Huawei specifies that these four electrical ports can be switched to WAN ports, giving network administrators additional flexibility.

This capability can be useful when a business needs to change its network topology. For example, an organization may use the router with a single Internet connection and several local devices, then reconfigure available ports to suit a different WAN arrangement.

Port configuration should always be planned around the intended topology, the required LAN connections and the capabilities of the upstream equipment. Where additional local ports are required, an external Ethernet switch can extend the network.

✅ Enterprise Networking for Small Businesses

Small businesses need network equipment that can provide dependable connectivity while supporting the operational requirements of the organization. The AR303 combines routing, switching, VPN and security functions in a compact platform.

A small office can use the router to connect its internal network to an Internet service, organize network segments and establish routes to other locations. VLANs can help separate traffic groups, while access-control and authentication features can support a more structured security policy.

The device's four GE LAN ports provide connectivity for a small number of wired endpoints directly. Larger networks can connect an Ethernet switch to expand the number of available ports.

The appropriate configuration depends on the business's number of users, applications, Internet bandwidth, security requirements and plans for network expansion.

✅ Suitable for Branch Offices

Branch offices often need secure communication with a head office or other business locations. The AR303's routing and VPN functions can form part of such a network design.

IPsec and other supported VPN technologies can be used to establish secure or tunneled connectivity, depending on the selected architecture. Dynamic routing capabilities can also be relevant in networks where routes must be exchanged between multiple routers.

For branch deployments, administrators should evaluate VPN throughput requirements, routing compatibility, resilience needs and the security policies applied at both ends of the connection.

✅ Suitable for Retail and Commercial Networks

Retail and commercial environments may use computers, printers, point-of-sale systems, inventory terminals and other Ethernet-connected equipment.

The AR303 can provide the routing gateway for a small wired network, with its four GE LAN ports connecting selected devices or an additional switch. VLAN and access-control functions can help organize network traffic according to the deployment's requirements.

Businesses should plan network segmentation and security controls according to the sensitivity of their systems. The router is one part of the overall network design, and correct configuration remains essential.

✅ Suitable for Professional IT Environments

The AR303's support for static and dynamic routing, VLANs, VPNs and QoS makes it relevant to professional network deployments that require more control than a basic consumer router typically provides.

Administrators can use routing policies to define how traffic reaches other networks, VLANs to organize Layer 2 connectivity, and QoS features to apply traffic-management policies.

The range of functions does not mean every feature is enabled by default. Deployment teams should verify software support and configure the features required for their specific network.

✅ Compact Installation and Physical Design

The Huawei AR303 measures approximately 38 mm high × 240 mm wide × 161.5 mm deep. Its maximum height is approximately 41.4 mm, while the width and depth remain 240 mm and 161.5 mm.

The router weighs approximately 0.58 kg without packaging and supports workbench and wall installation. These characteristics make it practical for small offices and branch locations where space is limited.

The device has an IP20 rating, so it should be installed indoors in a suitable environment rather than exposed to water or outdoor conditions.

✅ Power Supply and Operating Environment

The AR303 uses an external AC power supply. Huawei specifies a rated input voltage of 110V to 220V AC at 50Hz or 60Hz, with an input voltage range of 90V to 270V AC and an input frequency range of 45Hz to 65Hz.

Typical power consumption is specified at 9W, while maximum power consumption is 12W. The maximum output power is listed as 24W.

The long-term operating temperature range is 0°C to 40°C, and the long-term operating relative humidity range is 5% to 95%, non-condensing. Storage temperature is specified from −40°C to +70°C.

The device is rated for operation below 5,000 metres in altitude, with the maximum operating temperature reduced at higher elevations according to Huawei's stated guidance.

✅ Why Choose Huawei eKitEngine AR303 4-Port Desktop Enterprise Gateway Router?

The Huawei eKitEngine AR303 is designed for businesses that need a compact enterprise gateway with Gigabit Ethernet connectivity and a broad set of networking functions.

Its GE Combo WAN interface provides an uplink option for compatible Ethernet or optical connections, while the four GE electrical ports provide local connectivity. The ability to switch those four ports to WAN ports offers additional flexibility for supported network designs.

The router's 1 Mpps forwarding performance and support for up to 200 connected terminals provide useful model-selection references for small-business and branch-office environments. Its routing, VLAN, VPN, QoS and security capabilities allow it to support more structured network requirements than a basic Internet-sharing device.

The use of Huawei's VRP operating system provides a consistent software foundation for routing and network services. Meanwhile, its compact chassis, fanless operation and desk- or wall-mounting options make it practical for locations without dedicated rack infrastructure.

For businesses in Bangladesh, the AR303 can be considered for office networks, retail locations, branch deployments and other small commercial environments. The final selection should be based on the required WAN media, Internet bandwidth, number of connected devices, VPN needs and network-security policies.

✅ Huawei eKitEngine AR303 Price in Bangladesh

The Huawei eKitEngine AR303 4-Port Desktop Enterprise Gateway Router is a business networking device designed to provide Gigabit Ethernet connectivity, enterprise routing and integrated network-security functions.

The current Huawei AR303 price in Bangladesh can vary according to supplier, availability, procurement terms and included accessories. Contact the seller for a current quotation and confirm the exact model and part number before purchasing.

When evaluating the AR303, consider the full network requirement rather than the number of ports alone. Its 1 Mpps forwarding performance, 200-terminal capacity, GE Combo WAN interface, four GE electrical ports and VPN capabilities can help determine whether it matches the intended deployment.
